Notice: All specification must be satisfied in this condition except SPL. SPL shall be 83dB or more.
3.8 Vibration Test
Vibration Frequency 10~200~10Hz
Time 15min
Acceleration 5g
Direction x.y &z 2h (total 6hrs)
3.9 Drop test
Height 70cm(drop to concrete floor)
Direction one time in each 6 planes(total of 6 times)
3.10Solderability
Temperature of soldering pot 2 55 ±5℃
Duration 2
±0.5sec
All these tests above should be measured after leaving normal temperature for 4hrs.
3.1 High temp. storage life test
Temperature +85 ℃
Duration 96hrs
3.2 Low temp. storage life test
Temperature -40 ℃
Duration 96hrs
3.3 Life test in normal temperature
Power supply Rated voltage
Duration 96hrs
3.4 Temperature shock test
Cycles 5
3.5 Humidity cycle test
Cycles 5
3.6 High temp. life test
Temperature +85 °C
Duration 96hrs
3.7 Low temp. life test
Temperature -40 °C
Duration 96hrs
3.Reliability Test

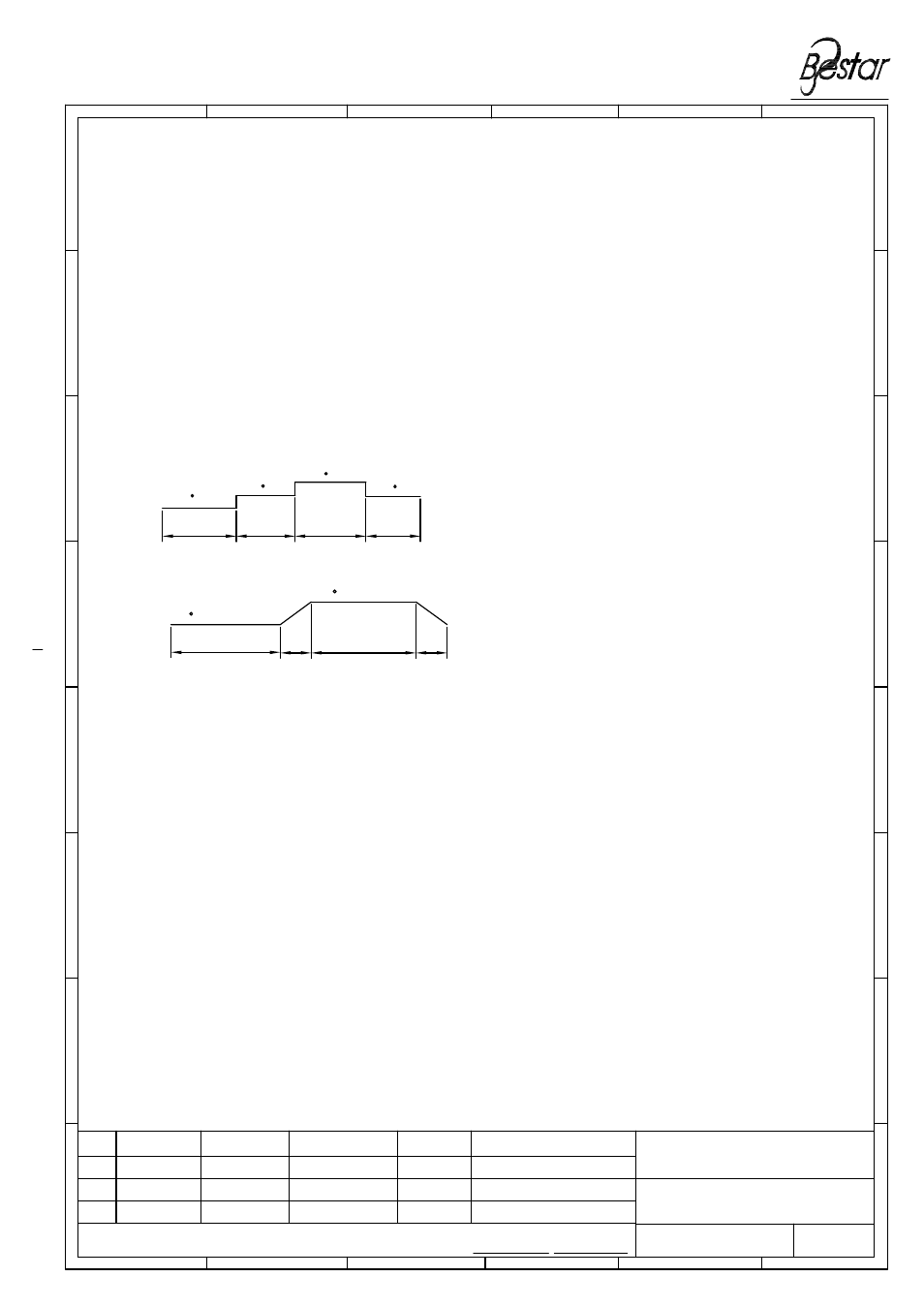

15min 15min 30min 30min
12h 1h 1h
Transducer
SMT1411-05H3.5-05 LF
DRG NO: BS/TET01.201B
09/09/10
