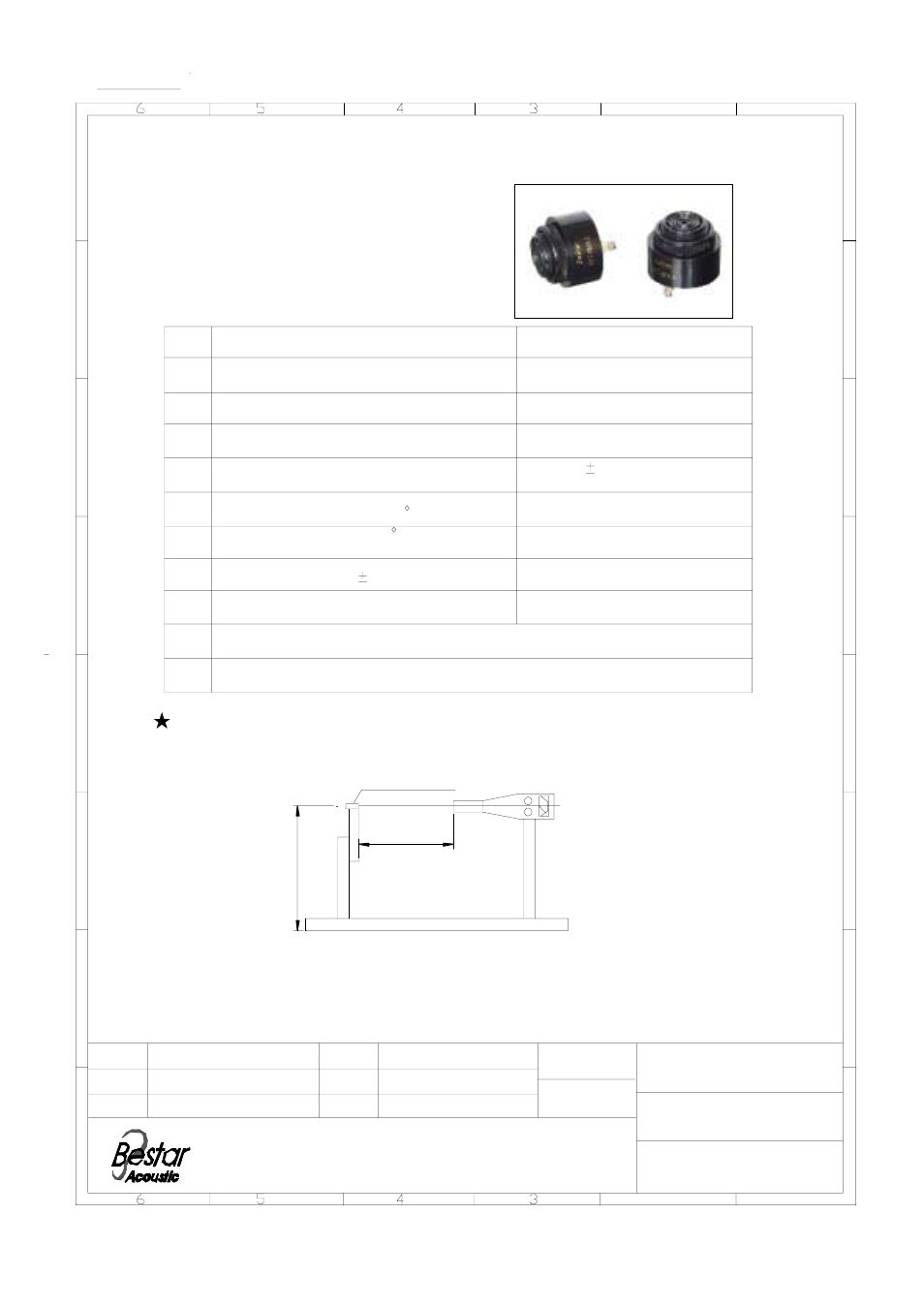

Piezo Buzzer
DRG NO
BS/TEP01.200A
BPT-380XAP12VDC
E-Mail:bestarco@ pub.cz.jsinfo.net Http:www.be-star.com
BESTAR ELECTRONICS INDUSTRY CO.,LTD
TianAn Industry Park 4/F,Site B ChangZhou New District
A
2
王善梅
CHEC.
APPR.
DIS .
Page:1 of 3
DATE
DATE
3rd angle
projection
DATE
B
C
Bestar Electronics
1
A
B
C
Electrical and Mechanical Characteristics
1. Operating Voltage (VDC) 10-20
2. Rated Voltage (VDC) 12
3. a) Supply Current (mA)(MAX) 15
4. a) Sound Pressure Level at 30 cm(dB)(MIN) 90
5. a) Resonant Frequency(Hz) 2900 500
6. @Tone Nature FAST PULSE
7. Operating Temperature( C) -20...+60
8. Storage Temperature( C) -30...+70
a) Value applying at rated voltage
@ Rated Pulse 3 20%Hz
E
F
No. Item Specifications
G
BeStar
1. Characteristic
H
BPT-380XAP12VDC(BPT-380XA12)
2
E
F
G
H
1
Standard Output Measurement Setup
Piezo Buzzer
40
0m
m
300mm
