3.1 High temperature test
Temperature + 70°C
Duration 240hrs
3.2 Low temperature test
Temperature -40°C
Duration 240hrs
all these tests above should be measured after leaving normal temperature for 2hrs.
3.6 Drop test
Height 75cm
(to 10mm thickness woodenboard)
Direction 3
3.7 Solderability test
Solderability temperature 255 ±5°C
Heat applying time 3sec
3.8 Vibration Test
Vibration Frequency 10~55Hz
Amplitude 1.52mm
Duration 2hrs each of 3 axis
Notice: All specification must be satisfied in this condition.
SPL: allowable deviation 10dB of the initial value after testing
30min
12h
65 C 90-95%

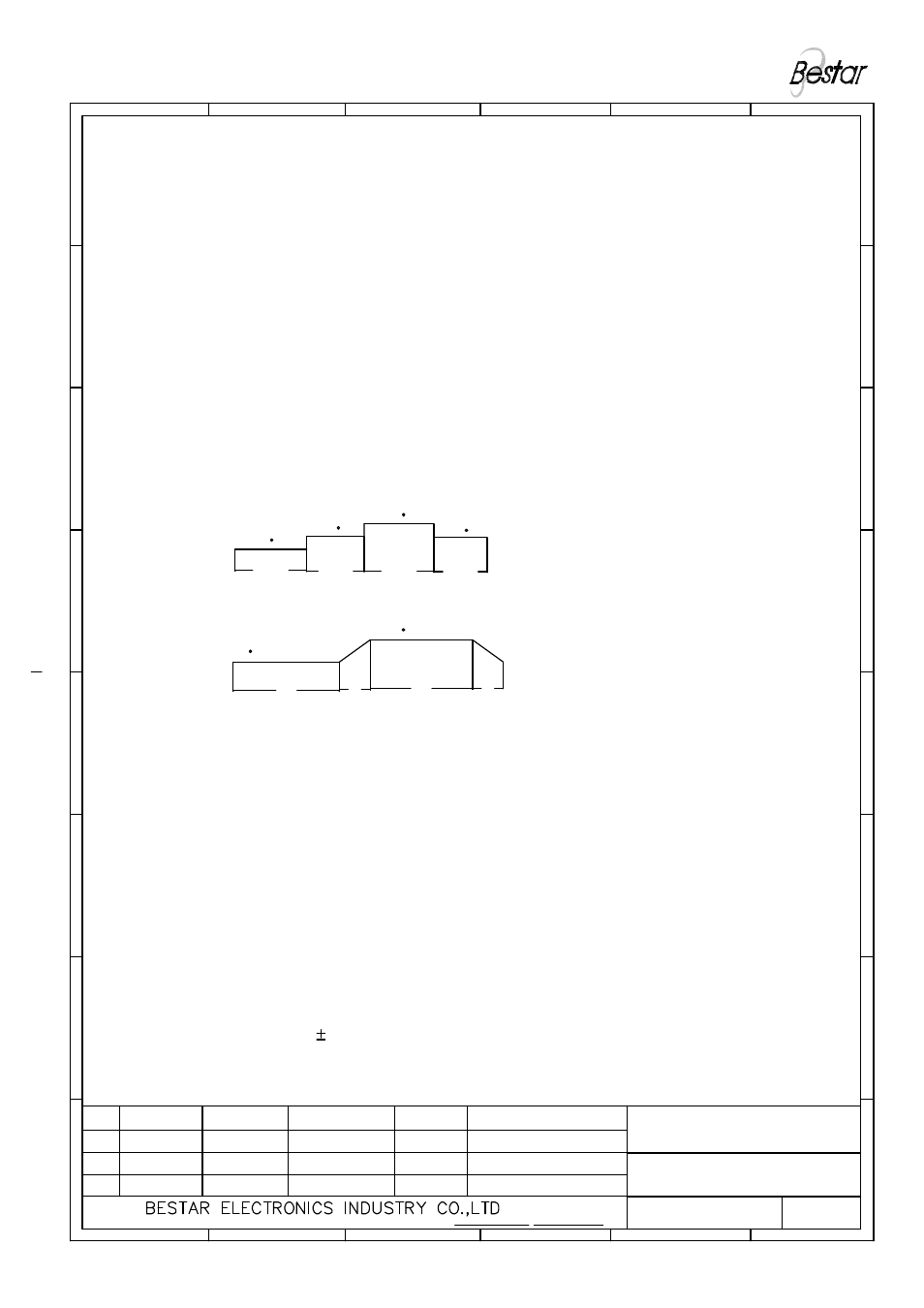

3.4 Temperature cycle test
Cycles 5
3.5 Humidity cycle test
Cycles 5
1h
10h
30min
-40 C
25 C90-95% RH
15min
1h
15min
RH
