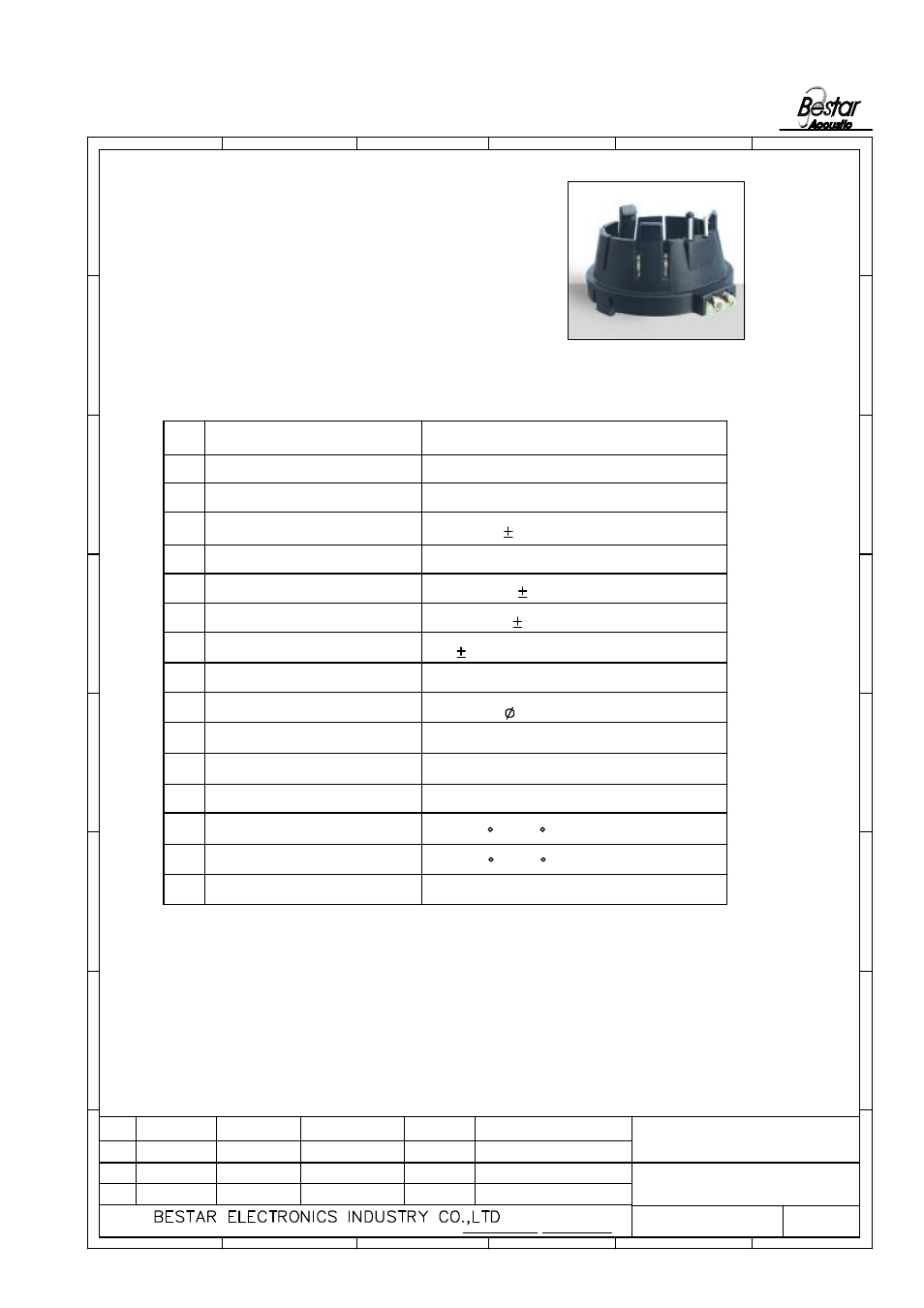

BeStar BMS3450-01 - Manual (Page 2)

No. Item Specifications
1. Rated input 0.3W
2. Maximum input 0.5W
3. Resonance Frequency 400 15%Hz
4. Frequency Response F0...5KHz
5. Impedance(at 1000Hz,1V) 50ohm 15%
6. Coil resistance 45ohm 15%
7. Output SPL (6.4V,square wave) 75 3dBA at 3000Hz,600Hz
8. Buzzes & rattles must be normal at sine wave 3.87V
9. Magnet Nd-Fe-B 12.5X1.5mm
10. Polarity Positive voltage to (+),
the diaphagm move forward
11. Frame PC
12. Storage temperature -40 C...+90 C
13. Operation temperature -40 C...+90 C
14. Weight 11g
BMS3450-01
1.1 Electrical and Mechanical Characteristics
