Characteristics, Picture 1, 12.8vp-p – BeStar BDT3032H12.8-02 LF User Manual

Page 2: 1 electrical and mechanical characteristics, Test fixture, S.p.l meter transducer

background image

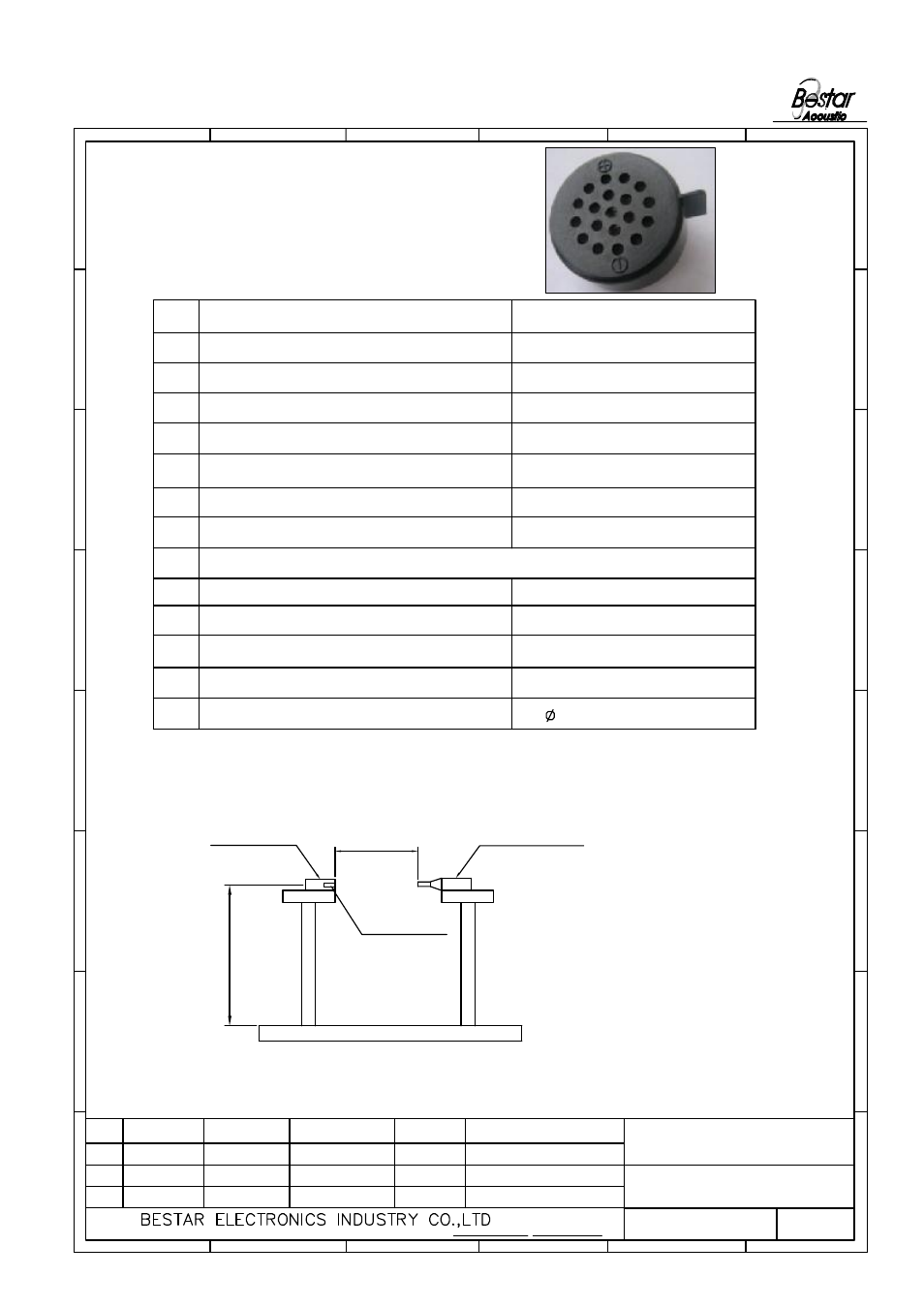

No. Item Specifications

1. Impedance (2kHz) 32ohm± 10%

2. Rated Input Power 1.3W

3. Max. Input Power 1.5W

4. Operating Voltage

Impulse voltage,square wave,duty cycle 50%,symmetric

6-12.8Vp-p

Impulse voltage,square wave,duty cycle 50%,symmetric

4-9Vop

5. Output SPL Values are shown in table1,

The sound pressure level is measured according to the test assembly shown in picture1.

6. Frequency range 1000Hz to 4000Hz

7. Operating Temperature -40...+105°C

8. Storage Temperature -40...+105°C

9. Weight 9g

10. Voice coil 0.045 Cu (golden color)

Note

1.1 Electrical and Mechanical Characteristics

BDT3032H12.8-02 LF
