Speaker
汪凤声
A
12/06/21
汪凤声
文件号：BS/QDTE045B
BLS36-12-04H17.5 LF
BLS36-12-04H17.5 LF
1.Characteristics
1.1 Electrical and Mechanical Characteristics
No. Item Specification
1. Dimension
Ø 36X17.5(mm)
2. AC Impedance 4
Ω
±15%(at 1KHz)
3. Rated Input Power 2W(2.83rms)
4. Maximum Input Power 3W(3.46Vrms)
5. Resonance Frequency
300Hz ±20%
6. Frequency Response fo~20KHz
7. SPL(1W,1M) 78
± 3dB at 1.0KHz
8. T.H.D(1W) <3% at above 400Hz
9. Buzzes & Rattles Must be normal at sine wave 2.83 Vrms
10. Polarity Positive voltage to (+),Diaphragm moves forward
11. Operating Temperature -15~+ 60
°C
12. Storage Temperature -25~+ 70
°C
13. Weight ~15g

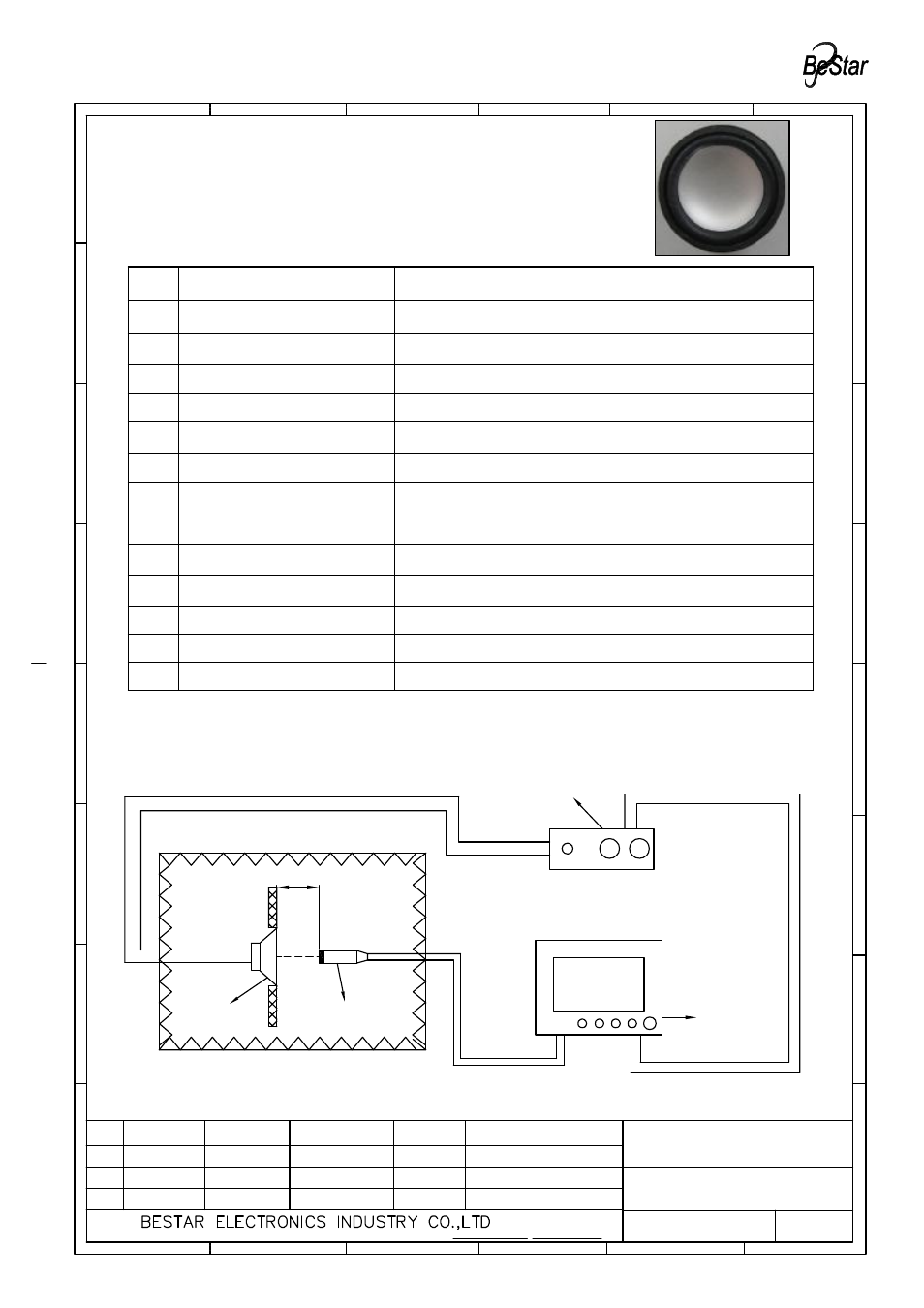

1.2 Test Method
Speaker
Mic
Audio
Analyser
Power Amplifier
1 m
1
W
(2
V
rm
s)
Anechoic chamber
