Note
1.1 Electrical and Mechanical Characteristics
BDT3032H14.7W65J LF
10cm
A A 莫丽丽
Rev. Drawn
6
Date
5
T
h
is
p
ri
n
t
a
n
d
i
n
fo
rm
a
tio
n
t
h
e
re
i
n
a
re
p
ro
p
ri
e
ta
ry
t
o
B
e
s
ta
r
E
le
c
tr
o
n
ic
s
I
n
d
u
s
tr
y
C
o
.,
L
td
.
a
n
d
s
h
a
ll
n
o
t
b
e
u
s
e
d
i
n
w
h
o
le
o
r
in
p
a
rt
w
ith
o
u
t
it
s
w
ri
tt
e
n
c
o
n
te
n
t
3
0
c
m
B
C
Test Fixture
E
D

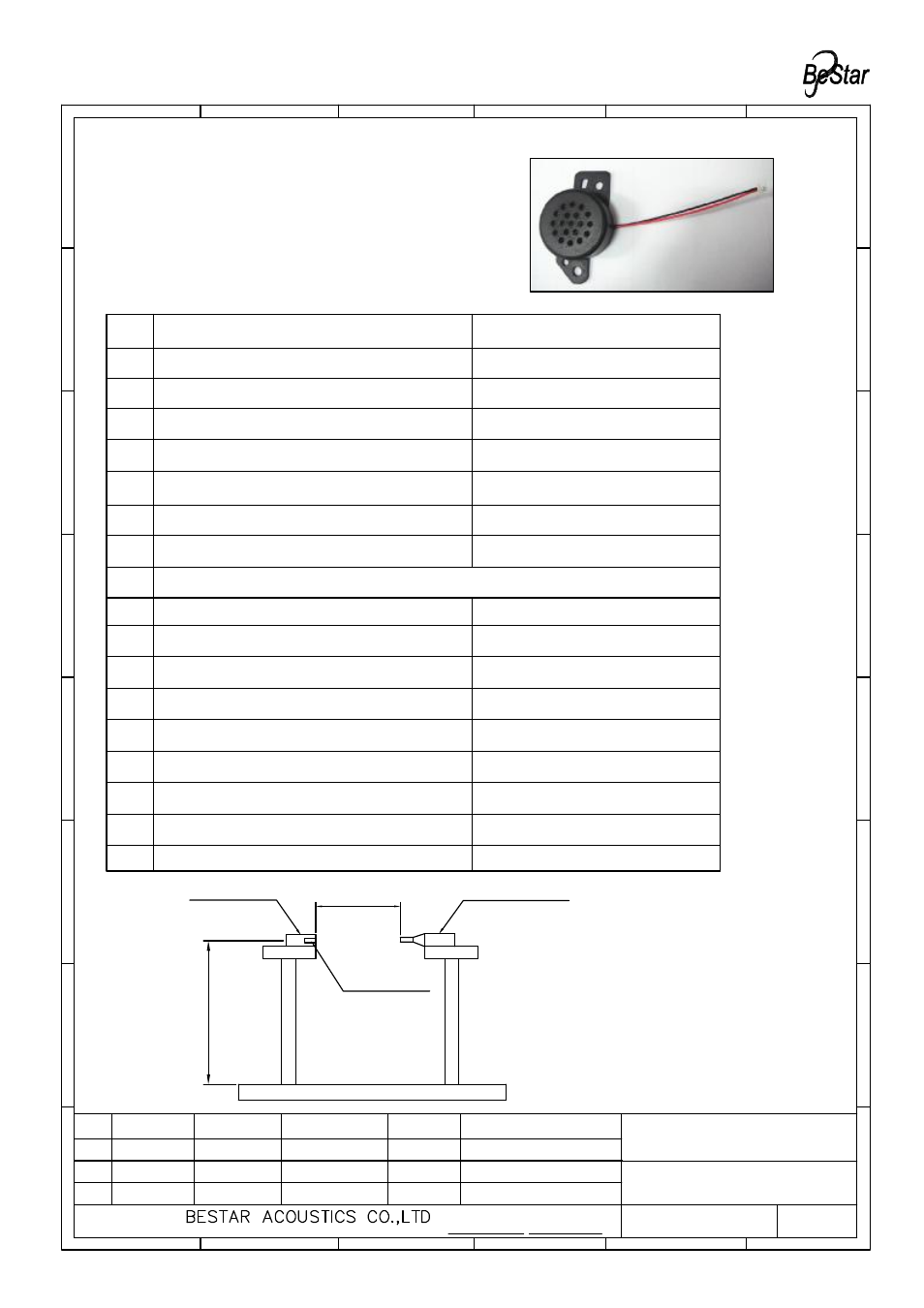

picture 1
F
1. Characteristics
G
H
6 5
Speaker A
Page:02 of 10
www.be-star.com [email protected]
Approved by:
4
张秀琴
3
DRG NO: BS/TES01.1127A
2 1
Checked by:
Drawn by:
Date:
徐文斌
2013/01/29
BDT3032H14.7W65J LF
S.P.L METER
Transducer
B
C
E
D
F
4 3 2 1
G
H
2013/01/29
莫丽丽
文件号： BS/QDTE045B
No. Item Specifications
1. Impedance (1kHz) 32ohm± 10%
2. Rated Input Power 1.3W
3. Max. Input Power 1.5W
4. Operating Voltage
Impulse voltage,square wave,duty cycle 50%,symmetric 6-12.8Vp-p
Impulse voltage,square wave,duty cycle 50%,symmetric 4-9Vo-p
5. Output SPL Values are shown in table1,
The sound pressure level is measured according to the test assembly shown in picture1.
6. Frequency range 400Hz to 10KHz
7. Resonance frequency 500±100Hz
8. SPL(0.15W,0.5m) at 400-10kHz ≥ 75dB 70% of the frequency range
≥ 60 dB 100% of the frequency range
9. Distortion <10% at 400-10kHz,0.15W,0. 5m
10 . Operating Temperature -40...+105°C
11. Storage Temperature -40...+105°C
12. Weight 11g
13. Voice coil Ø 0.045 Cu (golden color)
