Baldwin BR7006 Wall Stop User Manual
Baldwin For Home
1-1/16"
27 mm
deep
profundidad
profondeur
Position on wall and mark holes.
Posicione sobre la pared y marque los orificios.
Positionnez sur le mur et marquez les trous.
Hard wood
applications only:
A
A
A
B
C
E
5/8"
16 mm
deep
profundidad
profondeur
D
E
Use anchor (not
supplied) for dry
wall applications.
Utilice anclajes (no suministrados)
para aplicaciones en muros de yeso.
Utilisez des ancrages (non fournis)
pour application sur cloison murale.
Sólo para
aplicaciones en
madera noble:
Pour application
sur parquet
seulement:
3/32"
2 mm
3/64"
1 mm
3/64"
1 mm
3/32"
2 mm
A
B
C
D
E
Tools Needed
Herramientas necesarias
Outils nécessaires
9BR7006-XXX
48776 / 01
Door Bumper
baldwinhardware.com
800.566.1986
1
2
3
4
Copyright © 2012 Baldwin Hardware Corporation

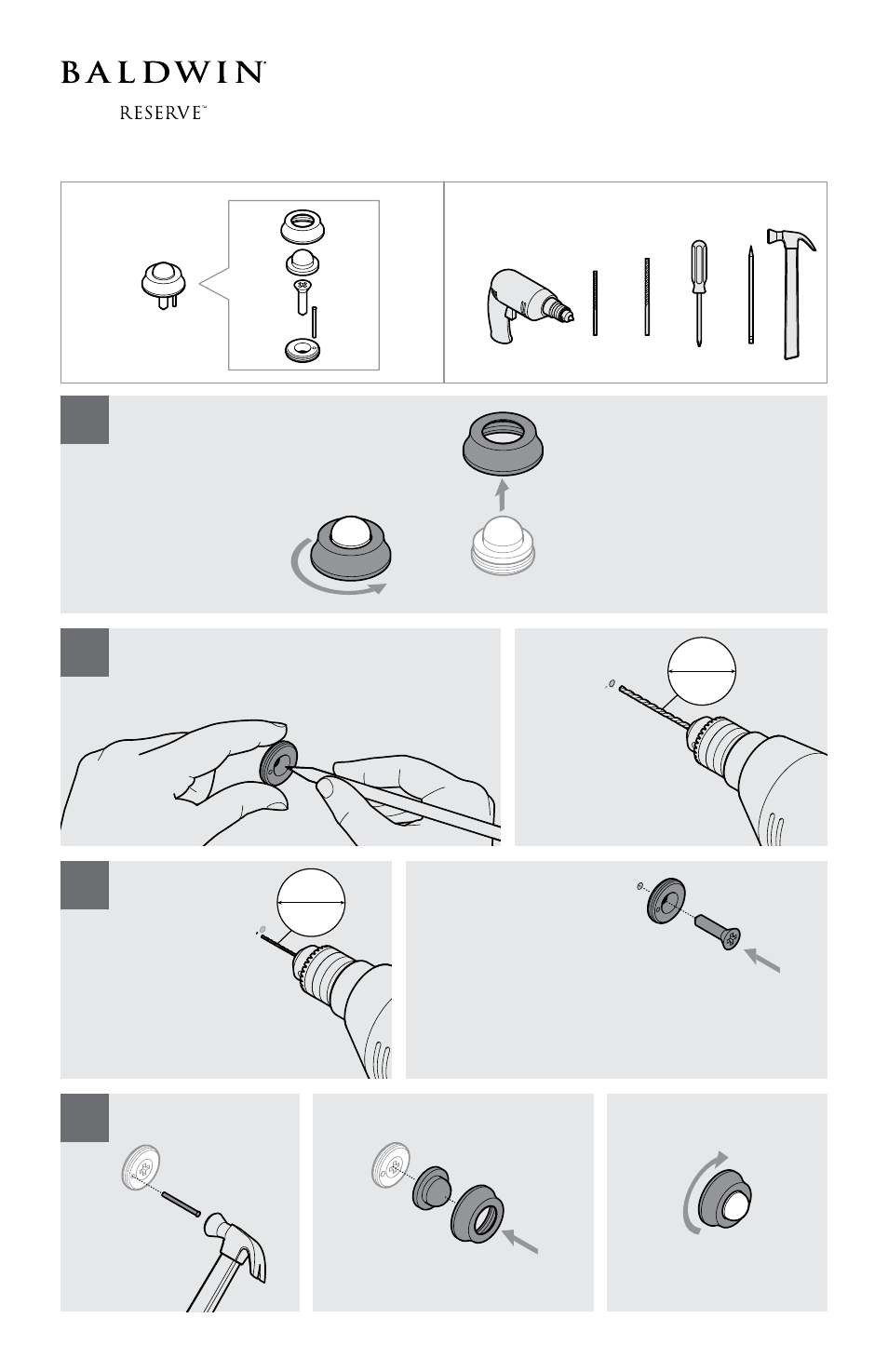

Quick Installation Guide
Guía de instalación rápida
Guide d’installation rapide
