Baldwin Boulder Multipoint - Manual (Page 2)

MULTI-POINT
INsTaLLaTION INsTrUcTIONs
SPRINGFIELD TRIM SHOWN
SEE HARDWARE
CATALOG FOR HOLE SPACING

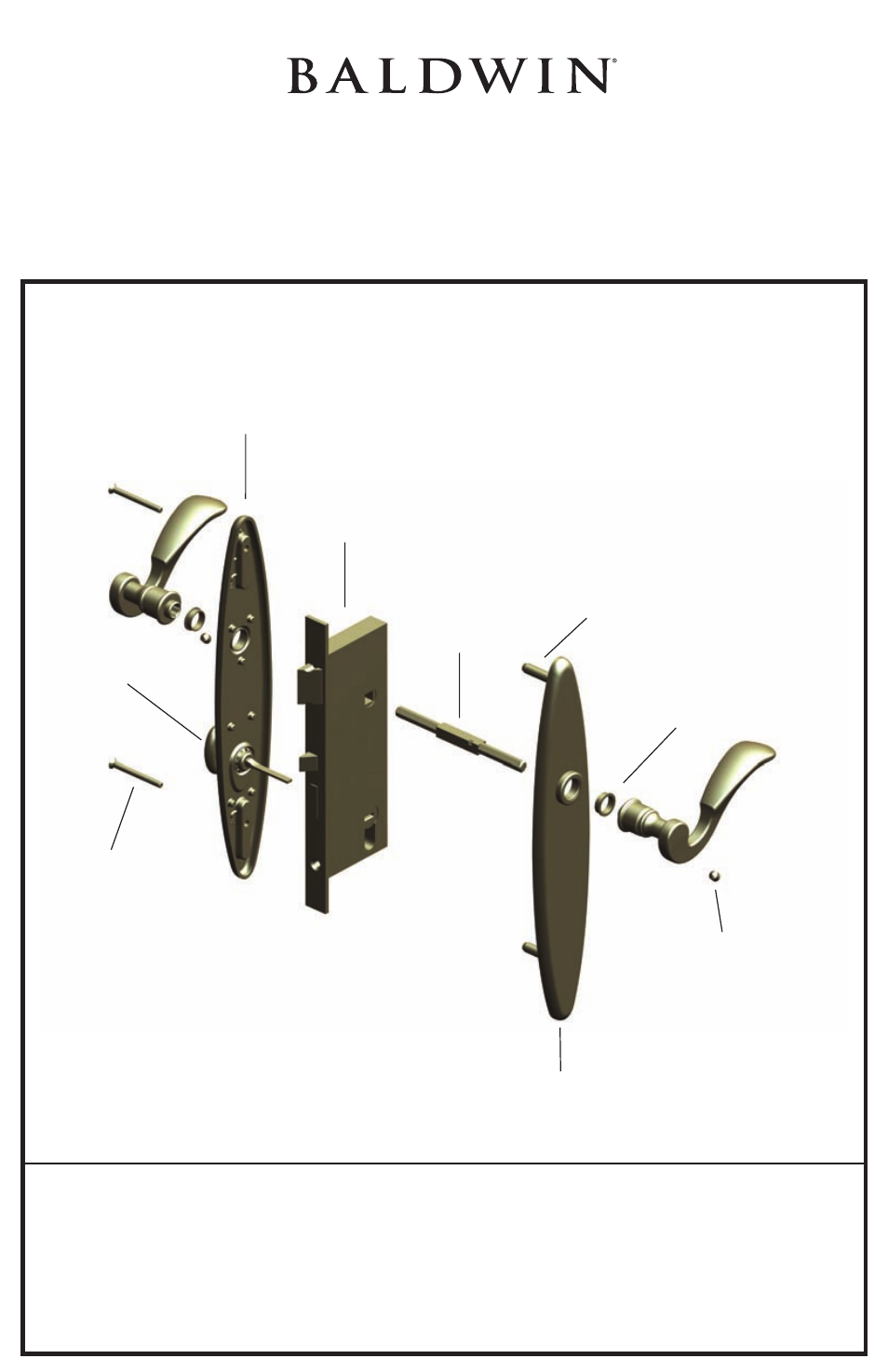

Patio american cylinder Function Exploded View
INTERIOR TRIM
LOCK BODY
SPINDLE
POSITION NOTCHES
TOWARDS DOOR
EXTERIOR
THREADED
SCREW POSTS
SEE NOTE
PRESS-IN
BUSHINGS
LEVER SET SCREWS
ALIGN WITH
SPINDLE GROOVE
EXTERIOR TRIM
INTERIOR #8
MACHINE SCREWS
DRILL THROUGH 5/16”
SEE NOTE
Turn Knob Note: Shown is the lever on the top of the turn knob. The lever may be on the
bottom, depending on the lock.
#8 Machine Screws Note: Proper trim alignment requires installing the spindle and levers
before completely securing the #8 screws.
Threaded Screw Posts Note: Length may need to be cut down to accomodate different
door manufacturers’ hole pattern.
TURN KNOB
SEE NOTE
