Page 10

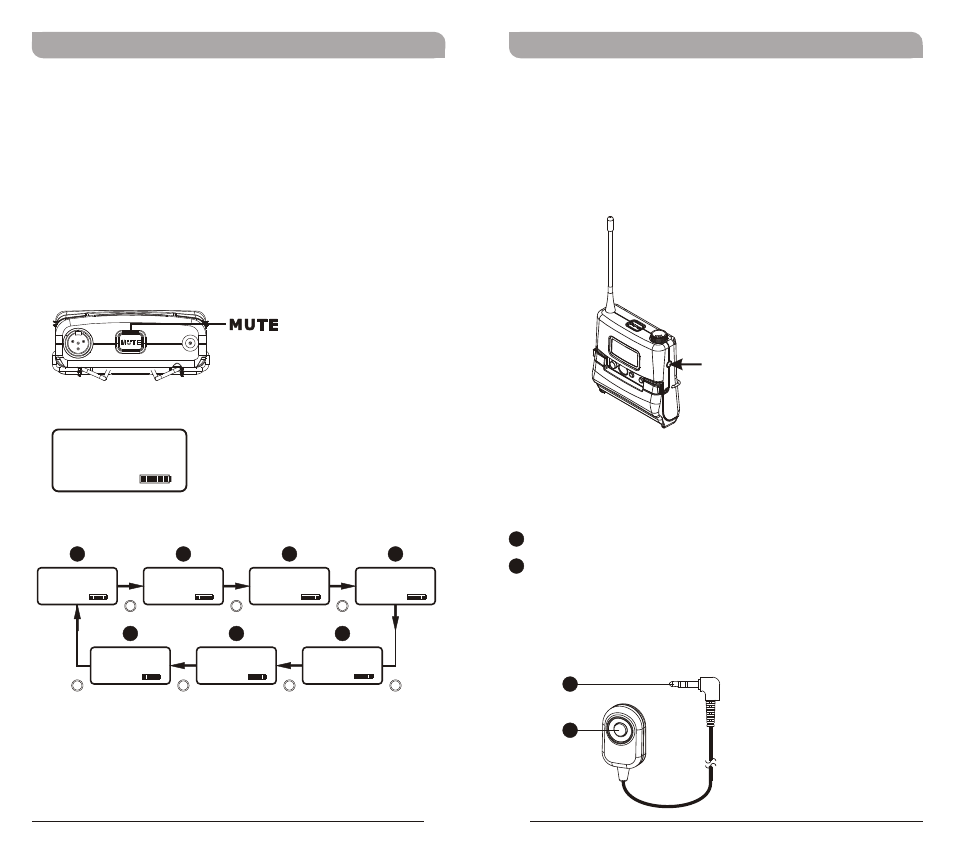

External mute connector

External Mute Connector

MJ-70 External Mute Switch (optional)

External mute connector is a 3.5mm jack. When

an external mute switch cable, MJ-70 (optional) is

connected, user can manually mute and un-mute

the audio temporary.

3.5mm jack.

External mute switch on/off button.

NOTE: Plug in the device before power on the

bodypack transmitter.

MUTE

AF MUTE

AF INPUT

Wideband Bodypack Transmitter

Setting MUTE

Press MUTE button to enter MUTE mode.

Under MUTE mode, press MUTE button to exit

MUTE mode.

MUTE button is operable when SET LOCK mode

is LOCK.

MUTE button is not operable when MUTE MODE

is set in DISABLE mode.

UNLOCK

SET LOCK

AF MUTE

775.275

MHz

FREQUENCY

0 dB

AF GAIN

7UA

BAND

MANUAL

MUTE MODE

RF-LOW

RF POWER

MODE

AF MUTE

01 01

GRP CH
