2 3
To build a larger divider system, when antenna-in connector of system (1) is connected
to an antenna, system (1) can distribute signal to system (2) via antenna-out
connector, and vice versa.
ANT B ANT A
(1)
(2)
(3)
Installation (2 Applications)
First Application:
(Figure 3)
Antenna Divider System Antenna Divider System
Antenna-in Connector: Connects directly to an antenna or a booster with remote
antenna. Connector provides regulated 8.3 V DC power for booster.
Antenna-out Connector: Deliver pre-distributed signal so it can conveniently
connect to another antenna divider.
Antenna Distribution Output Connector: The distributed signal outputs for
multiple systems.
DC Power Input Jack: To connect DC 12V from an AC/DC adapter.
(Figure 2)
Rear Panel:
4 4 5 5 6 6
6 6
6 6 7 7
7 7
5 5
5 5
4 4
4 4
Power On/Off Switch: When power is on, the light illuminates.
Booster Power Indicator: The light illuminates when remote antenna booster is
connected and successfully powered from antenna-in connector .
Rack Mount Bracket: For mounting on an EIA standard 19” rack-mount cabinet.

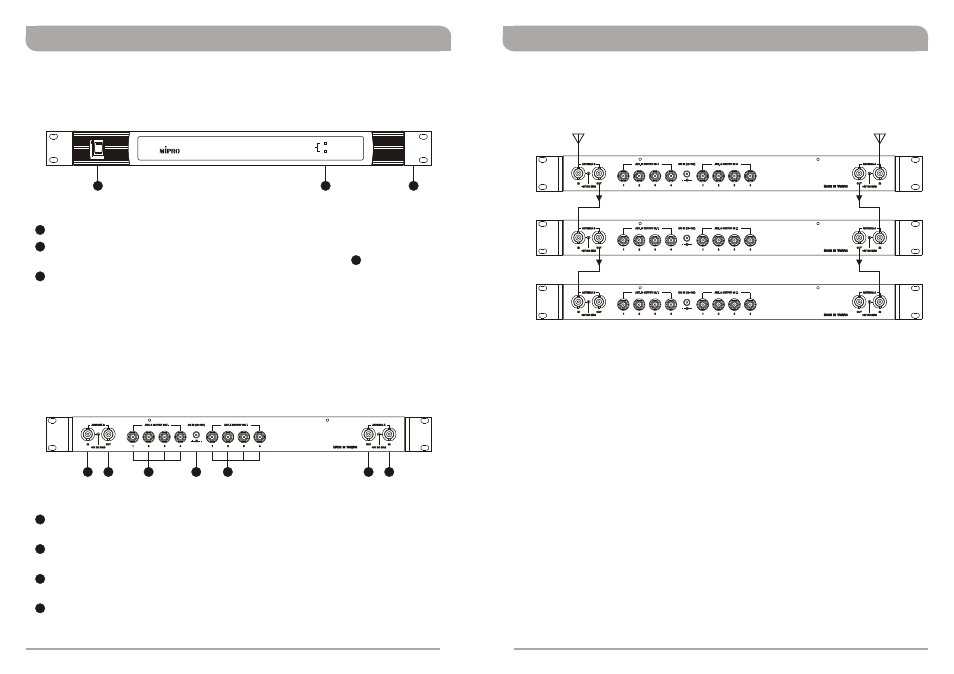

Part Names and Functions
Front Panel:
ANTENNA DIVIDER AD-707a
BOOSTER BOOSTER
A A
B B
POWER POWER 0 0
1 1 2 2
1 1
2 2
3 3
3 3
4 4
(Figure 1)
