Avlex ACT-71Ha Ultra-Wideband UHF - Manual (Page 6)

F F E E
A A
D D
B B C C
 LCD Screen for function display
 AF (audio) MUTE
 Transmitter Battery Meter
12 12
13 13
14 14
12 12
14 14
7UA
BAND
AF MUTE

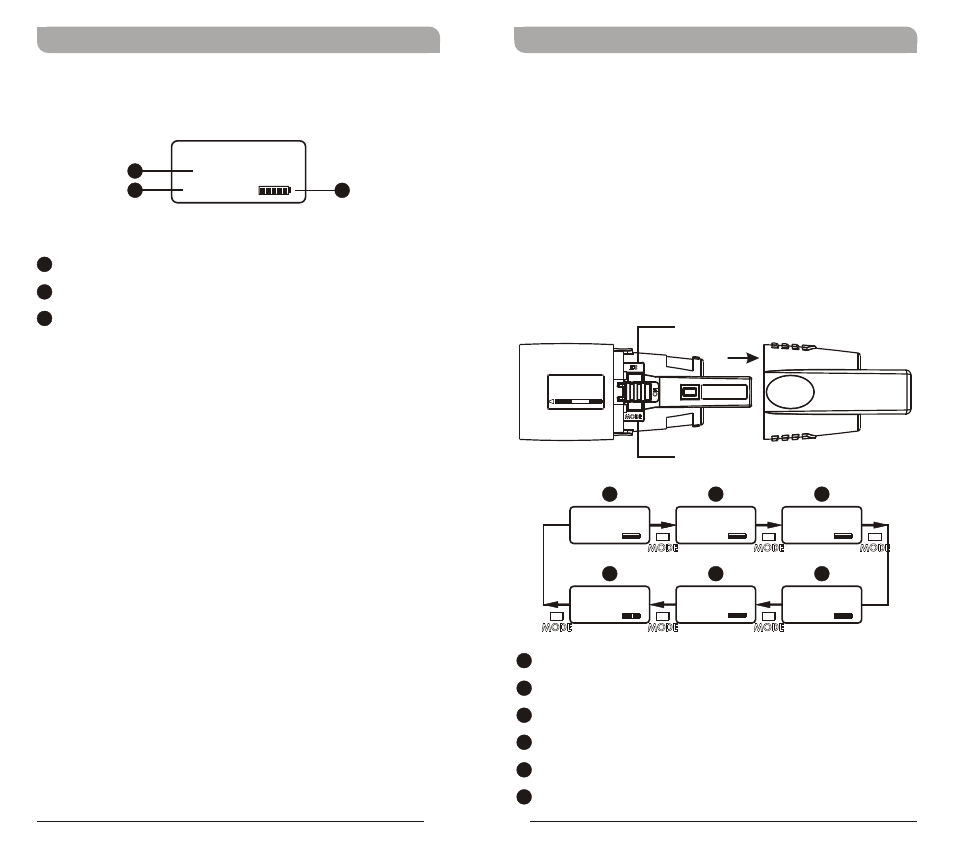

How to Setup Transmitter Parameters LCD Display Screen
13 13
! Remove protection cover to expose MODE
button and SET button.
! MODE Button:
Press “MODE” button to access one of the six
functions below.
! SET Button:
Press “SET” button and LCD wills start flashing.
During flashing, press SET button to change
parameters.
Wideband Handheld Transmitter Wideband Handheld Transmitter
Group and Channel
Frequency
Sensitivity Level
RF Output Power
Frequency Band
MUTE Mode
B B
A A
C C
D D
E E
F F
8 9
775.275
MHz
FREQUENCY
0 dB
AF GAIN
7UA
BAND
MANUAL
MUTE MODE
RF-LOW
RF POWER
01 01
GRP CH
MODE
SET
775.275 MHz
FREQUENCY
