Avision AV8300 User Manual
Page 51
8-3
8.3
REPLACING THE ADF DETACHABLE PAD
MODULE
After scanning approximately 150,000 pages through the ADF, the
pad spring may be worn out and you may experience problems
with document feeding. In this case, it is highly recommended to
replace the pad module with a new one. For ordering the pad
module, please consult your nearest dealer and follow the
procedure in below to replace it.
Removing Procedure
1.
Open the ADF front cover by pressing the button.
2.

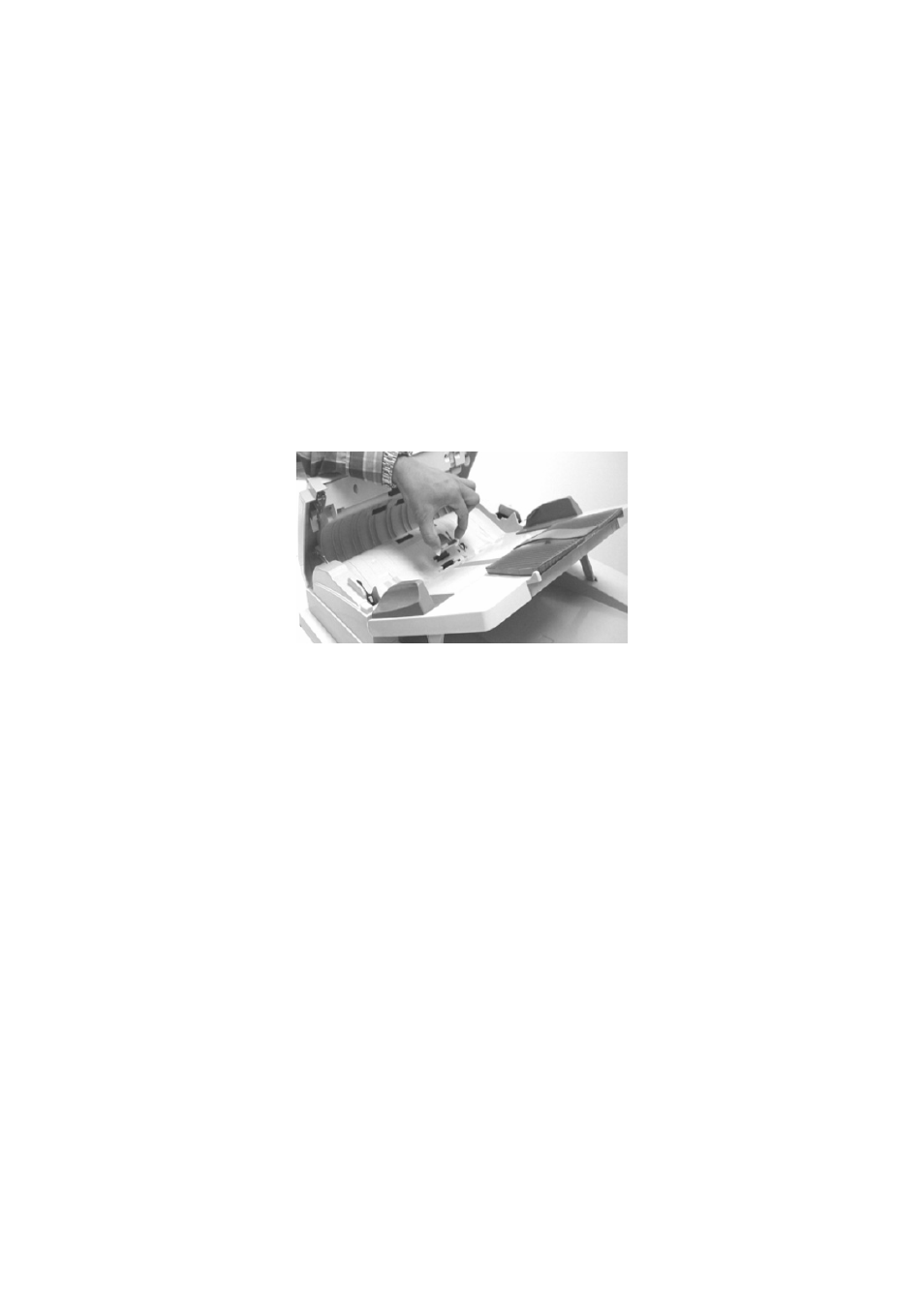

Remove the ADF detachable pad module by pulling out the
upper part of the pad clamp as shown in the figure below.
Remove the ADF pad in this direction.
Remove the pad module
