30
NOTE: The scan tool can only playback text data even
though the data is saved in graphic mode.

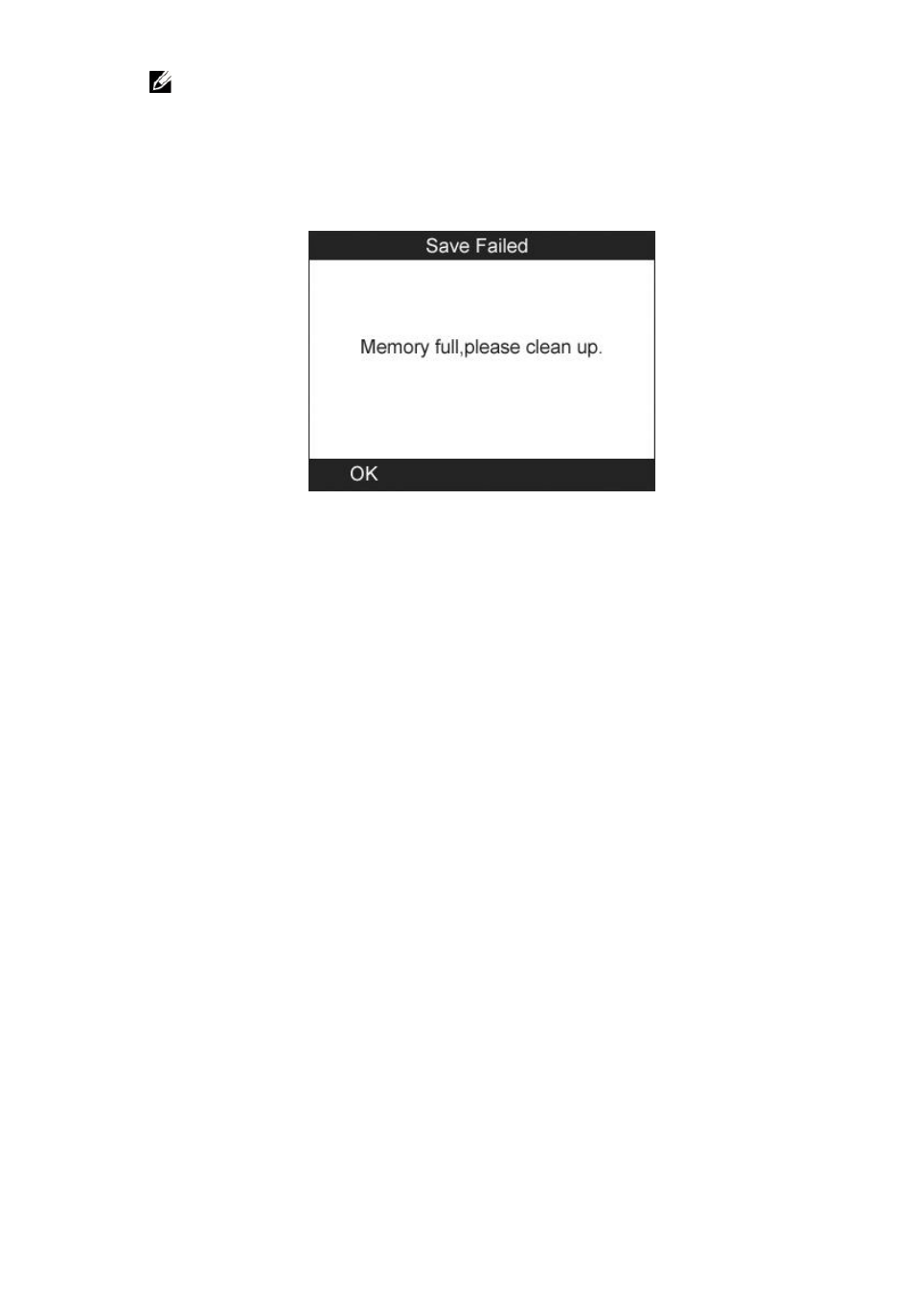

2) When there is not enough memory space, a warning message
prompting to delete previously recorded data.
Figure 5.18

If you wish to delete the data, select Yes and save currently
retrieved data in the SD card.

If you do not wish to delete the data, select No to return to
previous screen.
3) Select Pause to suspend recording. You could resume the
recording process again by selecting Start.
4) You may review the saved data in Playback function.
5) Press ESC button to exit.
5.4. Freeze Frame
Freeze Frame Data allows the technician to view the vehicle‘s
operating parameters at the moment a DTC (Diagnostic Trouble
Code) is detected. For example, the parameters may include engine
speed (RPM), engine coolant temperature (ECT), or vehicle speed
sensor (VSS) etc. This information will aid the technician by
allowing the parameters to be duplicated for diagnostic and repair
purposes.
1) To view freeze frame data, use the UP/DOWN scroll button to
select Freeze Frame from Diagnostic Menu and press the OK
button. (Figure 5.3 )
