atwood WEDGEWOOD BI-FOLD COVER RW, CW User Manual
Wedgewood bi-fold cover, Installation, Warning

FOR YOUR SAFETY
READ ALL INSTRUCTIONS BEFORE OPERATING
Installer:
Provide these instructions to the consumer.
Consumer:
Keep documents for future reference.

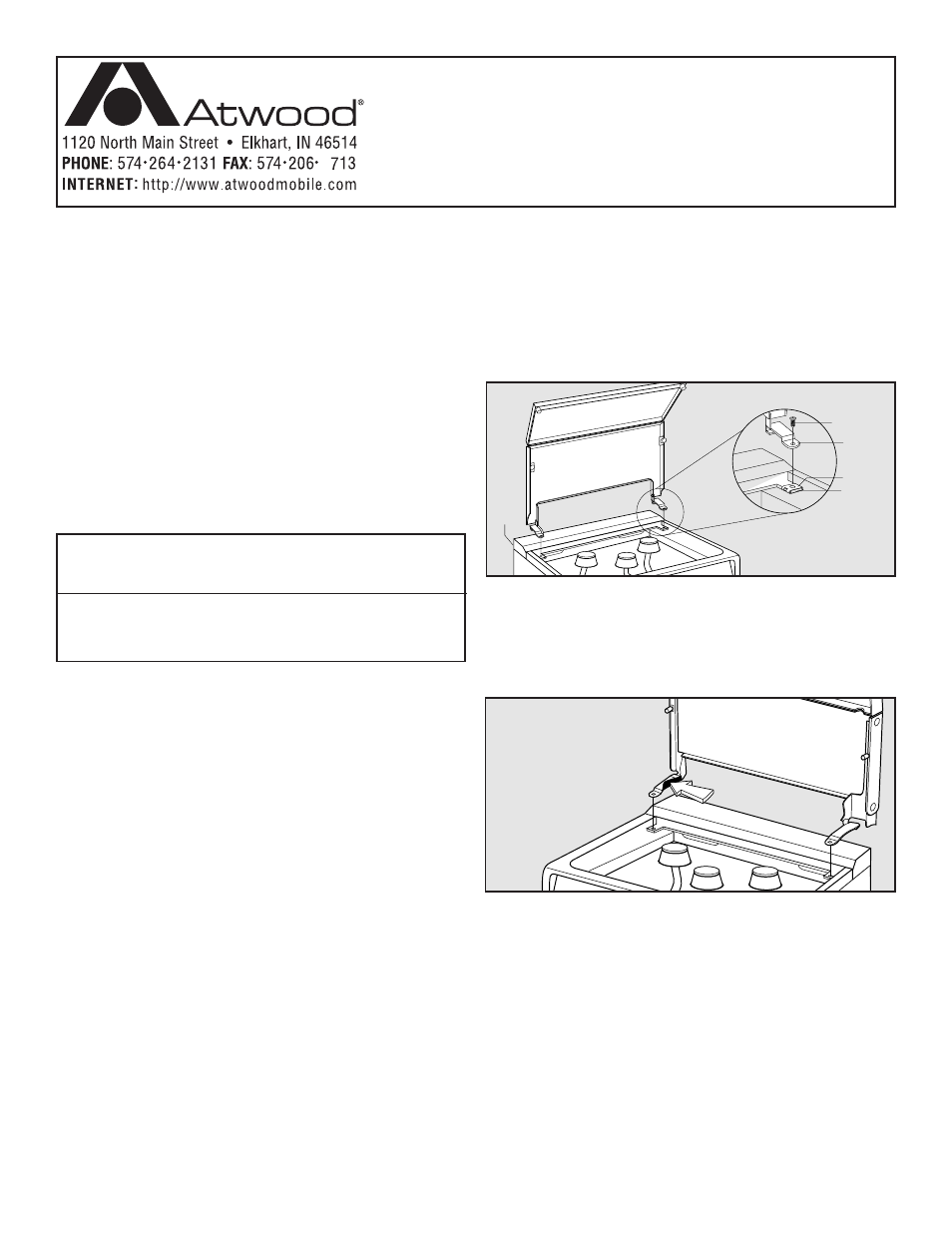

INSTALLATION
1. A phillips screwdriver is required for installation.To install Bi-Fold
cover, remove range top exposing mounting holes located in rear
corner of tabs.
2. Slide the speed nuts over the tabs as shown.
3. With Bi-Fold cover open (as shown) hook the straps into slots at the rear
corners of the vent.
4. Install the screws through the straps, speed nuts and mounting holes
from the top.
5. Lower Bi-Fold cover halfway to reinstall range top.
ƽ
WARNING
BURN INJURY
• When cooking appliance is in use - cover must be in full upright
and folded position, pushed completely toward outside wall with
the spring latch engaged, preventing cover from falling on range
top during cooking.
OPERATION
• Never close cover while the burners are in use.
• Do not use cover as a griddle.
• The oven may be used with the cover down.
• Cover is not for use on top pilot models.
• Never use cooking appliance while RV is moving.
• This cover is designed for use only with Atwood/Wedgewood
brand RV ranges and slide-ins.
DO NOT USE WITH OTHER BRANDS
.
• The bi-fold cover must always be closed when the vehicle is
in transit.
TO OPEN:
Rotate cover upward until the spring latch engages.
TO CLOSE:
Press the spring latch outward as indicated to disengage, then lower the
cover into the closed position.
LITERATURE NUMBER
MPD 53647
WEDGEWOOD
BI-FOLD COVER
RW
,
CW
9
ENGLISH
•Installation •Operation
Effective 11/21/07
Screw
Strap
Speed Nut
Tab
Slot
