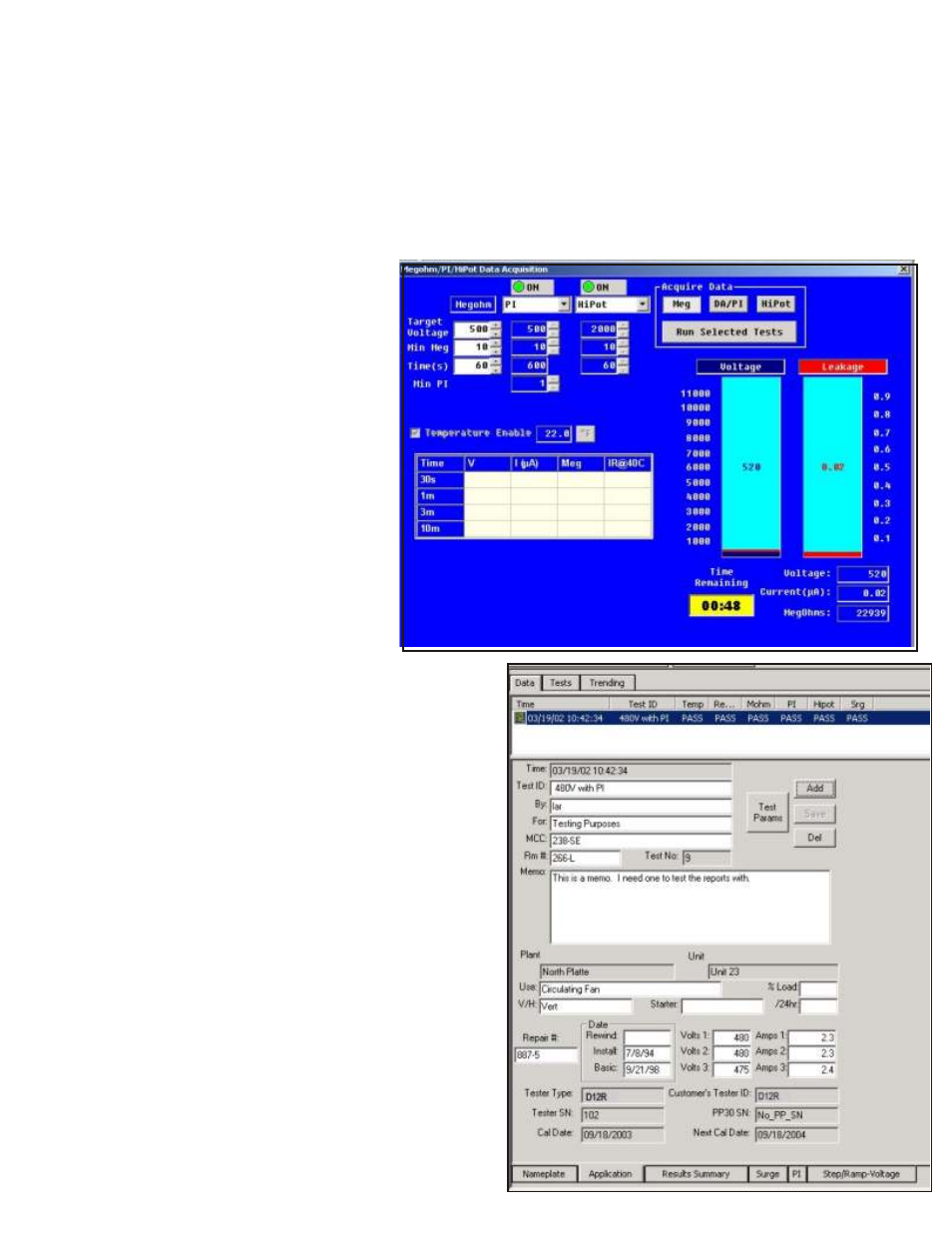

Digital MTA Software - MTA for Windows
The Digital Winding Tester can operate on its own
!FS-12 Footswitch for Push to Test hands free
operation
in the field, and then transfer the test data to a
!PP-30D 30kV Surge/DC HiPot Power Pack
computer running Baker Instrument Company, an
!Motor Test Management Analysis Software (MTA
for Windows) supports Windows 98 Second
SKF Group Company’s Motor Test Acquisition (MTA
addition, NT-SP6, 2000, & XP
for Windows) software for further analysis. MTA for
!Compatible Ink Jet printer
Windows provides database capabilities,
waveform comparison, report generation,
printouts, and other functions that turns
test data into usable information. All
options are easily accessed with on-
screen prompts.
Call us today. We never stop looking for
ways to improve your competitive edge
with testing solutions.
!Storage of test data for up to 10 motors
!3 Surge Wave Pattern with Amplitude
and Time base
!Surge Test Peak Voltage Amplitude
!DC HiPot Voltage, Leakage Current
!Insulation Resistance
!Baker’s QRR reliability High Voltage Design
!Zero Start Interlock for Tester High Voltage Output
!Bright, Sharp 5-inch digital display
!Leads Energized safety warning indicator
!HiPot Over-Current safety warning indicator
!Input Source Open Ground operator safety
disable and warning indicator.
!Test Lead insulated to 45 kV rating
!Dedicated Test Leads for Resistance Testing
!Test Lead Select Switch with All Leads Grounded
operator safety position
!Parallel Printer and PC interface
Options
Features
