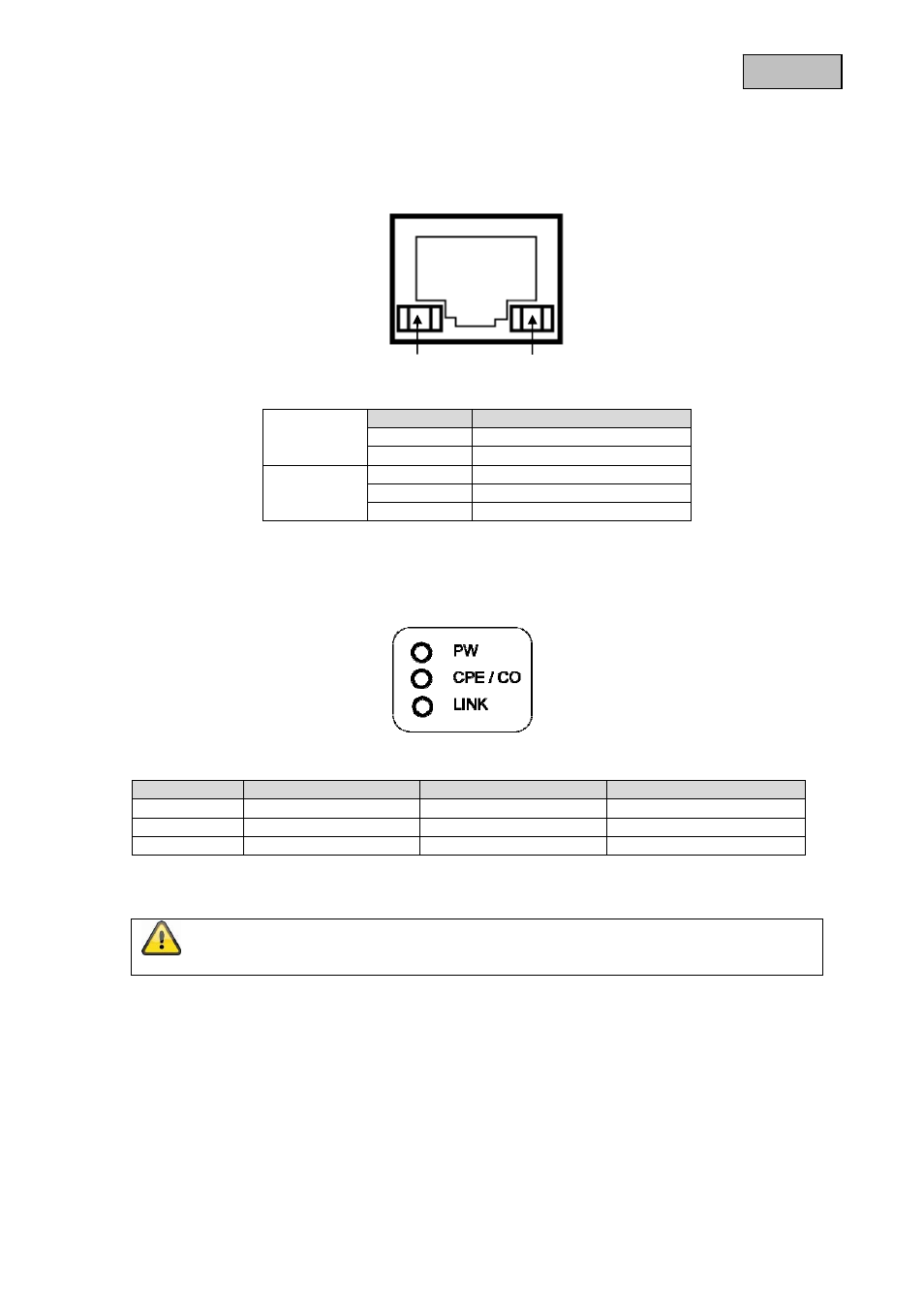

5.2 Status LEDs
These status LEDs on the network connection indicate the current connection status of the network
components.
c
Status LED Bandwidth speed
ON Half-duplex 100 MB/s
OFF Full-duplex 100 MB/s
d
ON Open circuit
OFF No connection
Flashing Data transmission
These status LEDs indicate the current connection status of the two devices.
Description LED on LED flashing LED off
PW Switched on - Switched off
CPE / CO CPE (Master) - CO (Slave)
LINK Connected Connection setup -
If the LED “Link” flashes rapidly, the devices are attempting to set up a connection to each other. If they
flash slowly, no connection has been set up.
Warning:
Please make sure that the receiver side (router, PC, etc.) is always set as the control
unit (Master) (DIP switch 1 = ON).
c d
