8

English

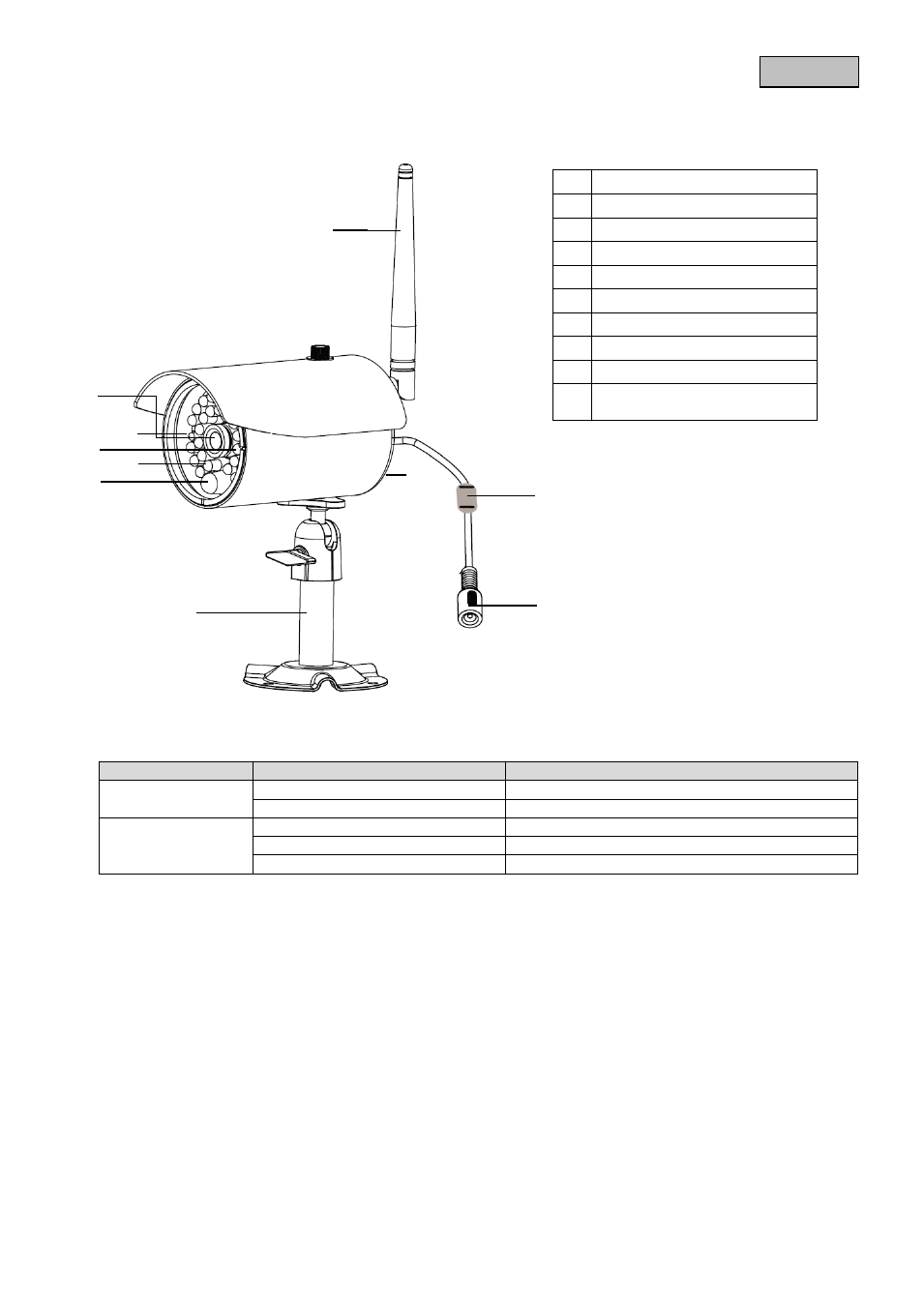

5.3 Camera description

Meaning of the LEDs:

LED

Status

Meaning

Power LED 

On (red)

Camera on

Off

Camera off

Link LED 

Flashing

Th

e camera is in the “Pairing Mode”.

On (green)

Camera is connected to the monitor

Off

Camera is in standby



Antenna



Fixed lens



Power LED



Link LED



IR LED



Photo sensor



Camera mount



Microphone



Pairing button



Power supply connection
5 VDC / 1A

 




















