9
English

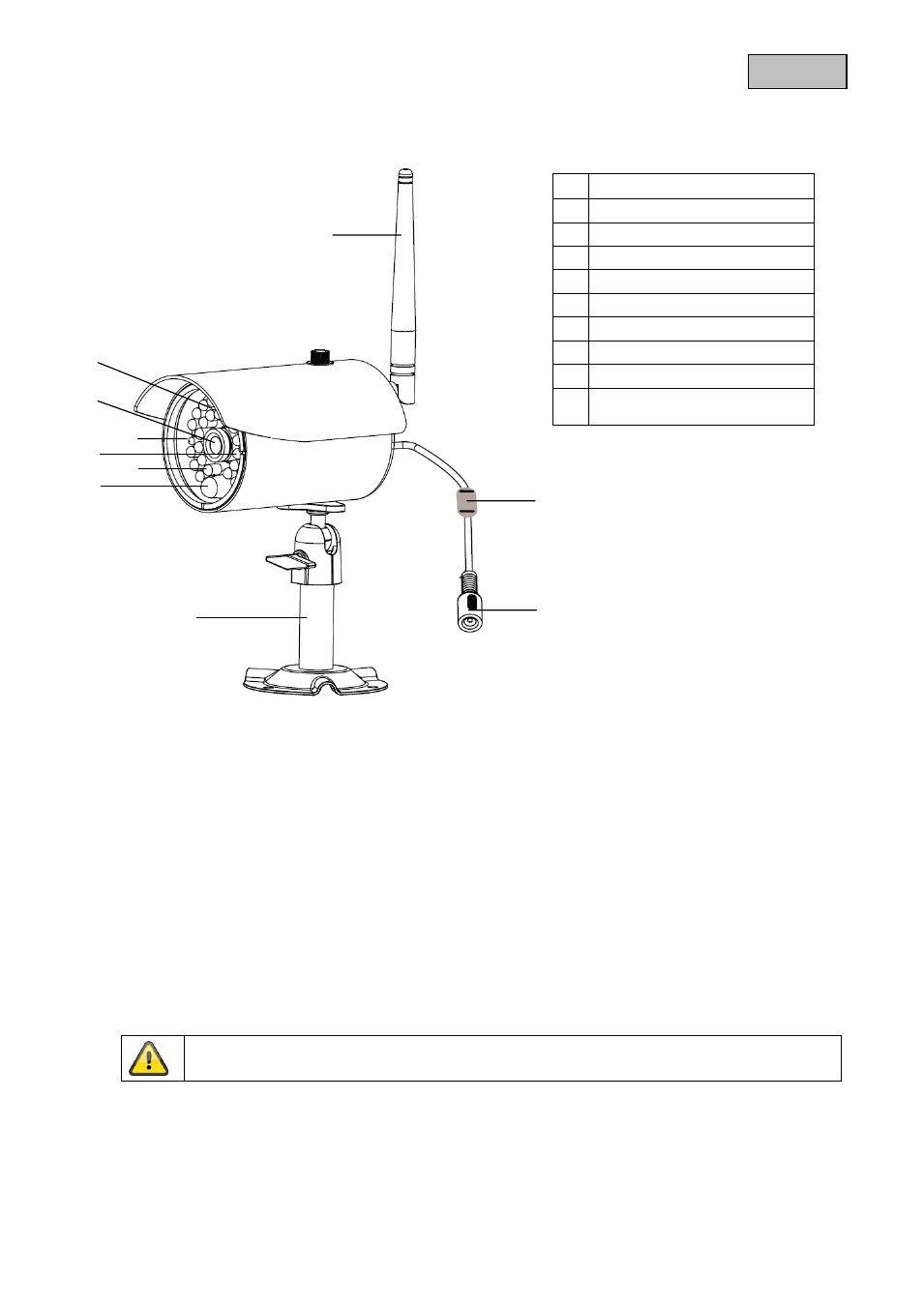

4.2 Camera description
5. Installation
5.1 Pairing the camera and monitor
To connect a camera with the monitor, proceed as follows:
1. Connect the power supply to the cameras and monitor.
2. In the TFT monitor’s menu “Camera Setup -> Pairing” select the camera you require (1–4) and
confirm your choice with OK. The systems starts a 60 second countdown.
3. During the 60 seconds, press the PAIRING button on the camera cable until the green LINK LED on
the front of the camera starts to flash.
4. Once the connection is successful, the LINK LED on the camera lights up continuously.

Antenna

Light sensor

Fixed lens

Power LED

LINK LED

IR LED

PIR sensor

Camera mount

Pairing button
 Power supply connection
5 V DC/1 A
Warning:
Please note that connection can take up to 60 seconds.
 










