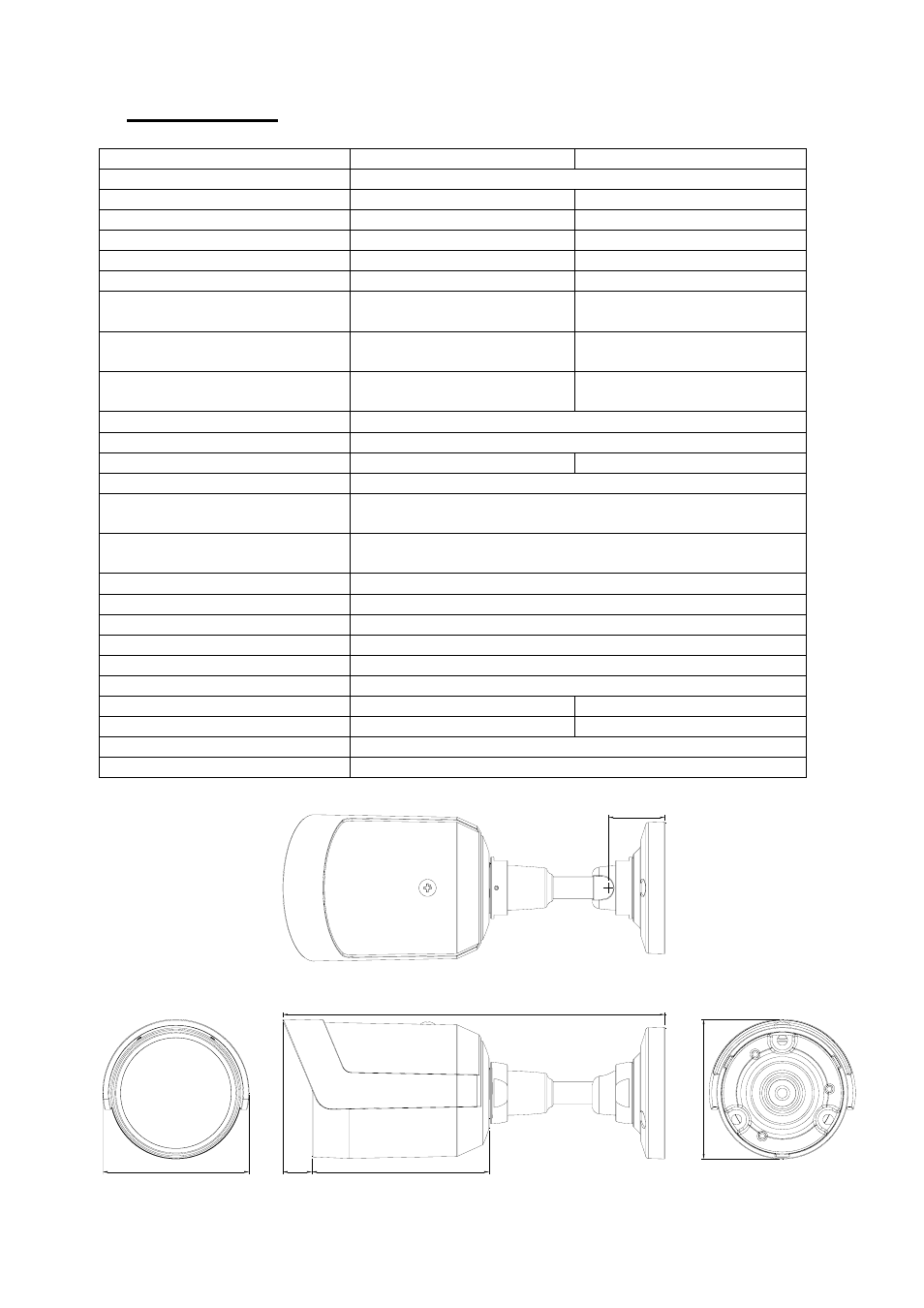

9. Technical data
Article number TVCC40000 TVCC40030
TV Standard PAL
Resolution 380 TVL 520 TVL
Image sensor 1/4“ Sharp CCD 1/3‘‘ Sony Super HAD CCD
Picture elements (total) 537(H) x 597(V) 795(H) x 596(V)
Picture elements (effective) 512(H) x 582(V) 752(H) x 582(V)
Signal-to-noise ratio 48 dB 48 dB
Minimum illumination (day) 0.8 Lux @ F2.3, 30 IRE 0.5 Lux @ F2.3, 30 IRE
Minimum illumination (night) 0 Lux @ F2.3, 30 IRE (IR
On)
0 Lux @ F2.3, 30 IRE (IR
On)
Day/night Color/ B/W Infrared cut filter (ICR),
Color / B/W
IR LEDs 14 LED [Ø 5 mm]
Lens (focal length) f=3.6mm
Horizontal angle of view 53° 78°
Synchronisation internal
Automatic gain control
(AGC) AGC, auto
Backlight compensation
(BLC) automatic
White balance AWB
Protection class IP66
Video signal Composite; 1.0V p-p, 75 Ohm
Operating temperature -10°C ~ +50°C
Humidity 0~85%, not condensing
Nominal supply voltage 12 VDC
Power consumption (IR off) 0.6 W 1.9 W
Power consumption (IR on) 1.8 W 3.2 W
Dimensions (WxHxD) 59.5 x 56.8 x 155.5 mm
Weight 350 g
59.5mm 12mm 72mm
155.5mm
56
.8
mm
23mm
