19-14 www.aaeon.com Note: All specifications are subject to change without notice.

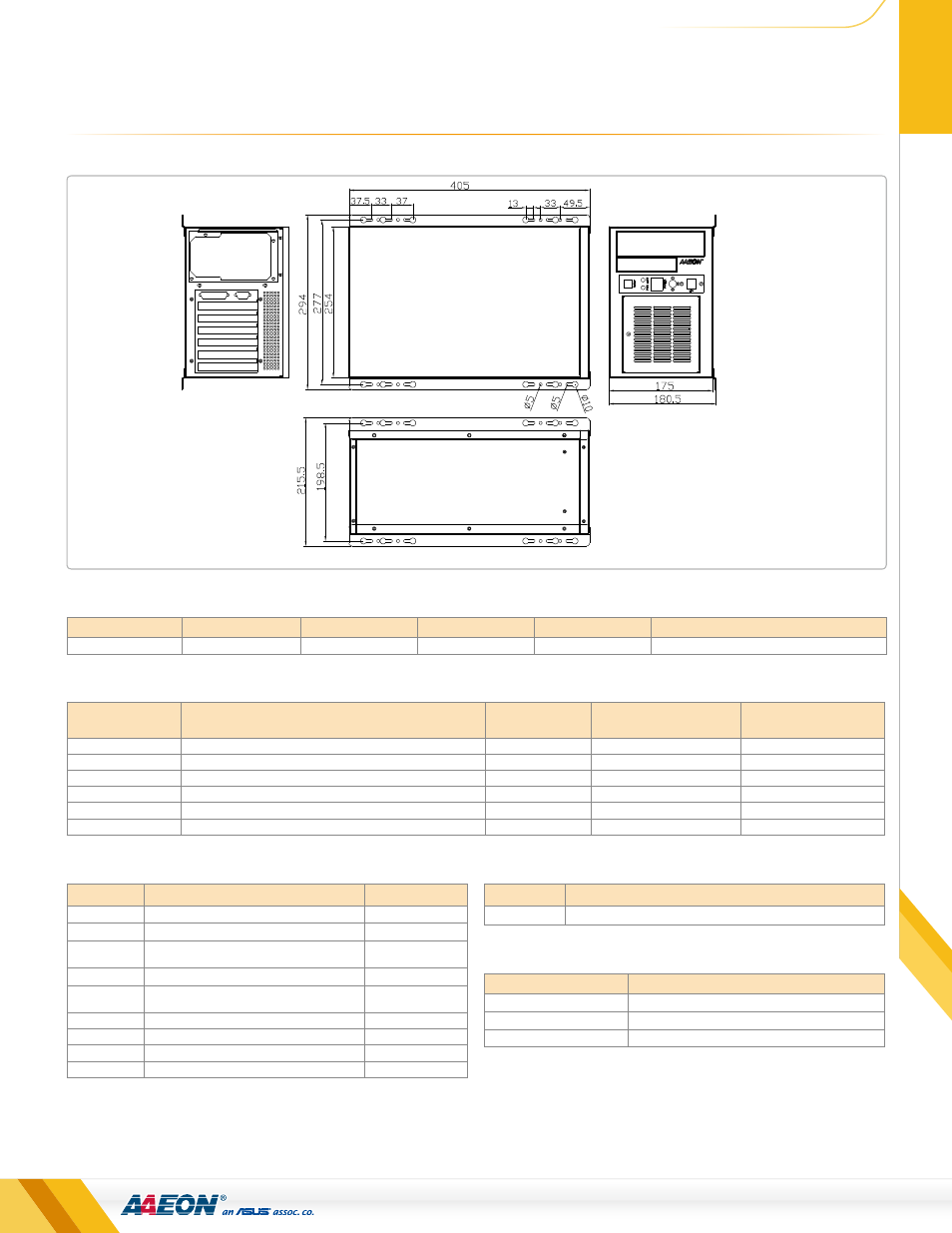

Dimension
Unit: mm
Model/Name Description
TF-AMC-262-W-00 Wallmount, 6-Slot Bare Chassis, for PS2 Power, PS_SW (ATX), Color: White
Ordering Information
Passive Backplane Options
P/N Description Master Interface Slots
Power Connector,
ATX Extend Function
BP-206SP-P4 Wallmount, PCI, 6-Slot Backplane, 4 PCI, Single Segment, ATX PCI 4/0/2 (PCI/ ISA/ PICMG_PCI) ATX, 3-pin ATX extend
BP-206SS-P4 Wallmount, PCISA, 6-Slot Backplane, 4 PCI, 3 PCISA, Single Segment, ATX PCISA 4/1/0 (PCI/ ISA/ APCI) ATX
BP-206SG-P2 Wallmount, PICMG, 6-Slot Backplane, 2 PCI, 3 ISA, Single Segment, ATX PICMG 1.0 2/3/1 (PCI/ ISA/ PICMG) ATX, 3-pin ATX extend
BP-206SG-P4 Wallmount, PICMG, 6-Slot Backplane, 4 PCI, 2 ISA, Single Segment, ATX PICMG 1.0 4/2/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend
BP-206SH-P3 Wallmount, Backplane, PICMG 1.3, 6-Slot, 3 PCI, 2 PCI-E, Single segment, ATX PICMG 1.3 3/2/1 (PCI/PCI-E/PICMG 1.3) ATX
BP-206SI Wallmount, ISA 6-Slot Backplane, 6 ISA, Single segment, AT/ATX ISA (0/6/0) AT/ATX
AMC-262
Power Supply Options
CPU Cards Options
P/N TYPE PFC Support Input Voltage Watt Size
1255304003 ATX Active PFC Auto 90 ~ 264V 400W PS2
Model/Name Description Master Interface
FSB-H81H Socket LGA 1150, Intel® 4th Gereneration Core™ i3/i5/i7 PICMG 1.3
FSB-B75H Socket LGA 1155, Intel® 3rd Generation Core™ i3/i5/i7 PICMG 1.3
FSB-G41H
Socket LGA 775, Intel® Core™ 2 Duo/ Core™ 2 Quad
(800/1066/1333)
PICMG 1.3
FSB-B75G Socket LGA 1155, Intel® Ivy Bridge i3/i5/i7 PICMG 1.0
FSB-945G
Socket LGA 775, Intel® P4/ P-D/ Celeron® D/ Core™ 2
Duo (533/800/1066 MHz)
PICMG 1.0
HSB-945P Onboard Intel® Atom™ N270 1.6 GHz PCI
HSB-910I Onboard Intel® Celeron® M (600 MHz)(400 MHz) ISA
HSB-800I Onboard AMD LX 800 Processor ISA
HSB-LN2I Onboard Intel® Atom™ D525/N455 ISA
AMC-262
Model/Name Description
1759218000 LGA1155/1150 CPU Cooler (1U)
175920000G LGA775 CPU Cooler (1U)
1759200335 LGA775 CPU Cooler (1U)
CPU Cooler Options
