Features
Specifications
■
■
Supports VGA/ DVI
■
■
Supports 2.5” SATA Hard Disk Drive and CompactFlash™
■
■
USB x 4, COM x 2 (Optional COM x 4)
■
■
8-bit Digital I/O (Optional)
■
■
+12V Lockable DC Input
■
■
Desktop Or Wallmount (Optional)
Embedded Box for EPIC-9456
TKS-E50-9456
CPU
Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M (65nm) Processors up to 2.16
GHz
Chipset
Intel® 945GME+ICH7M
System Memory
200-pin DDR2 400/533/667MHz SODIMM x 1, up to 2 GB
Display
Interface
VGA
D-SUB 15 x 1
DVI
DVI-I x 1
Others
—
Storage
Device
SSD
Type 2 CompactFlash™ Slot x 1
HDD
2.5” SATA 1.5Gb/s HardDisk Drive Bay x 1
Network
LAN
10/100/1000Base-TX Ethernet
Wireless
—
Front I/O
USB Host
—
LAN
—
Serial Port
—
DIO
—
Audio
—
KB/MS
—
Others
Power Switch
Rear I/O
USB Host
USB Type A x 4
LAN
RJ-45 x 2
Serial Port
9-pin D-Sub x 4 (2 for optional)
DIO
8-bit Programmable x 1 (Optional)
Audio
Line-out, Mic-in
KB/MS
PS/2 x 1
Others
Wireless Antenna
Expansion
PCIe
—
PCI
PCI-104
Mini Card
—
Mini PCI
—
Others
—
Indicator
Front
Power LED x 1, HDD LED x 1
Rear
—
Power Requirement
DC +12V input
Power Consumption
Intel® Core™ 2 Duo T7400 2.16 GHz, DDR2 667 2 GB
3.02A@+12V
System Cooling
One CPU fan and one system fan
Mounting
Desktop or Wallmount (optional)
Operating temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature
-40°F ~ 176°F (-40°C ~ 80°C)
Anti-Vibration
0.5g rms/ 5 ~ 500Hz/ random operation (Internal Hard Disk Drive active
Module)
Anti-Shock
10G peak acceleration (11 msec. duration) (Hard Disk Drive Module)
MTBF (Hours)
60,000
Certification
EMC
CE/FCC Class A
Safety
—
Dimension (W x H x D)
10" x 6.3" x 2.2" (255mm x 160mm x 56mm)
Gross Weight
Heavy duty steel (1.7 kg/ 3.85 lb)
HDD LED
Ethernet
USB
COM
VGA
Audio
COM (Optional)
Digital I/O (Optional)
Keyboard + Mouse
DVI-D
Power
Input
Power LED
Power Switch

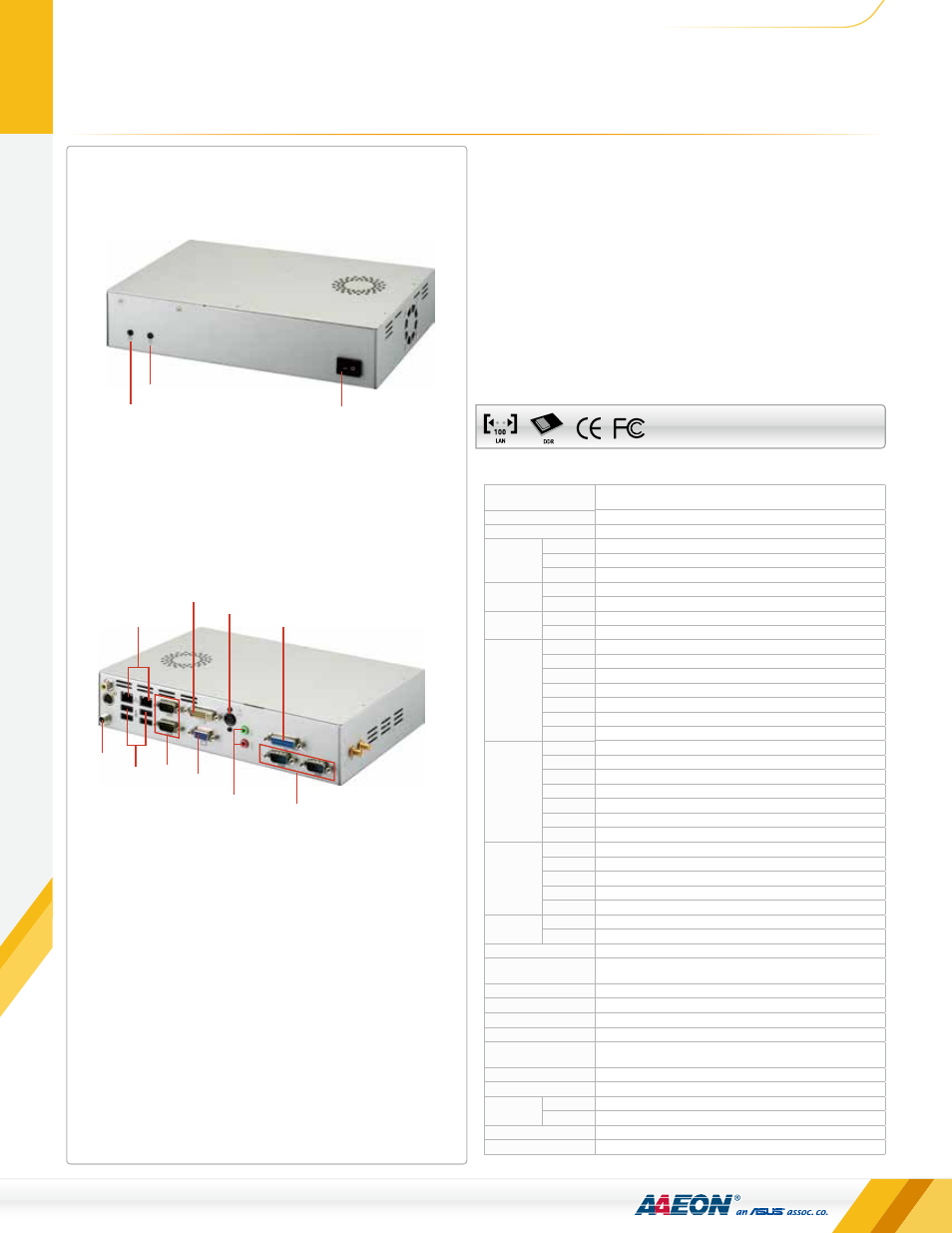

Front View
Rear View
