2.3 Connecting Cables
Connecting the Power cable, VGA cable and RS-232 cable onto the
FOX-12D and computer, and screw the three cables tightly on the
FOX-12D as below.
Before connecting the FOX-12D to the computer, remember to turn
off the computer first. After each connector on the computer is
secured, turn on the computer.
Note:
1. The "Surge Protection" is already implemented
2. If it doesn't screw tightly, the water-proof function may not work.

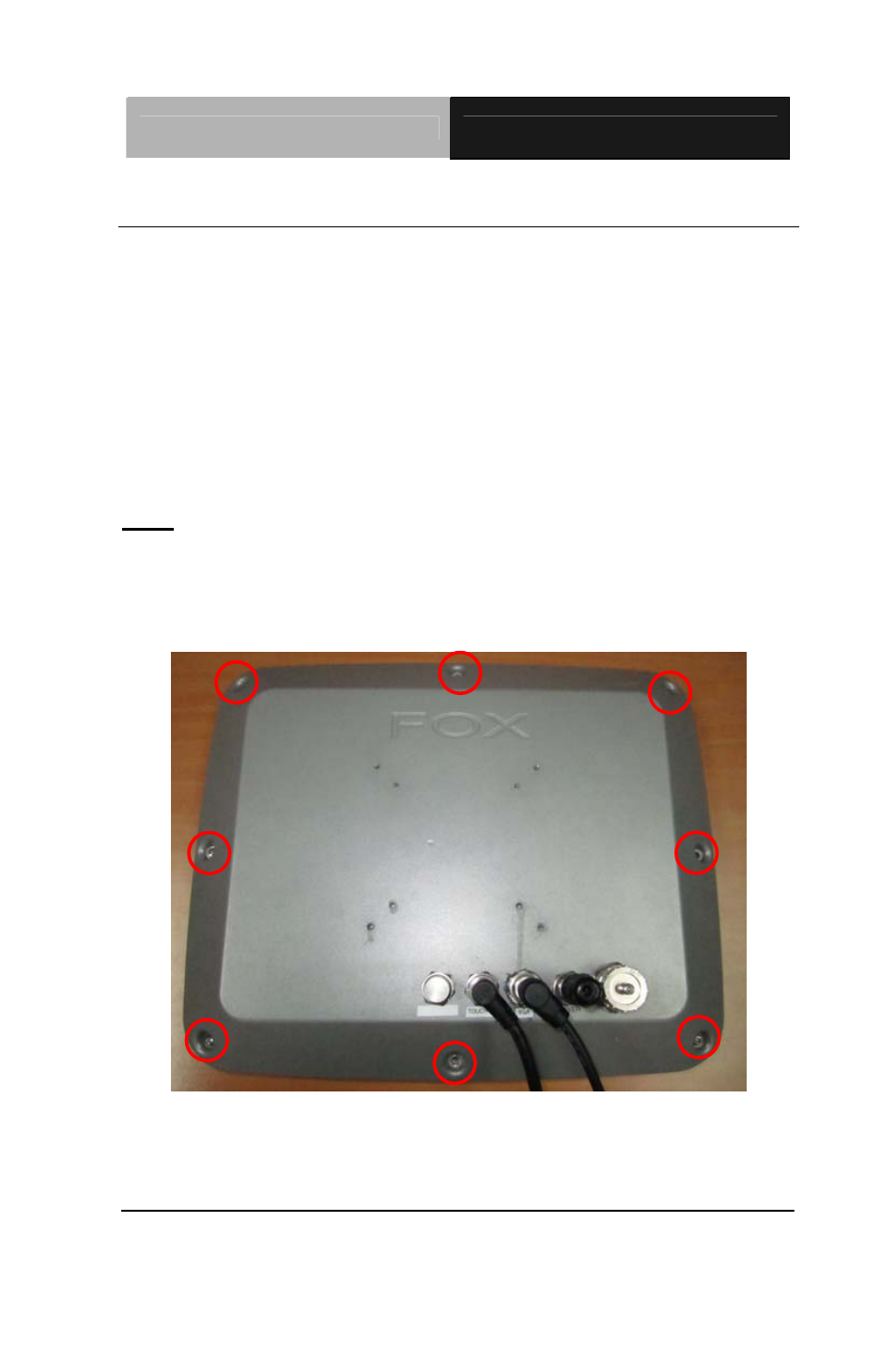

3. This holes on the left and right sides shown below are sealed tightly.
Please do not try to open the holes, which will influence the waterproof
function.
