Q s e v e n M o d u l e A Q 7 - I M X 6
Chapter 2 Quick Installation Guide 2-5
Pin Pin Name Signal type Signal Level
1 MISO I/O +3.3V
2 GND PWR GND
3 CLK I/O +3.3V
4 VCC PWR +3.3V
5 MOSI I/O +3.3V
6 CS1 I/O +3.3V
7 N/C N/C N/C

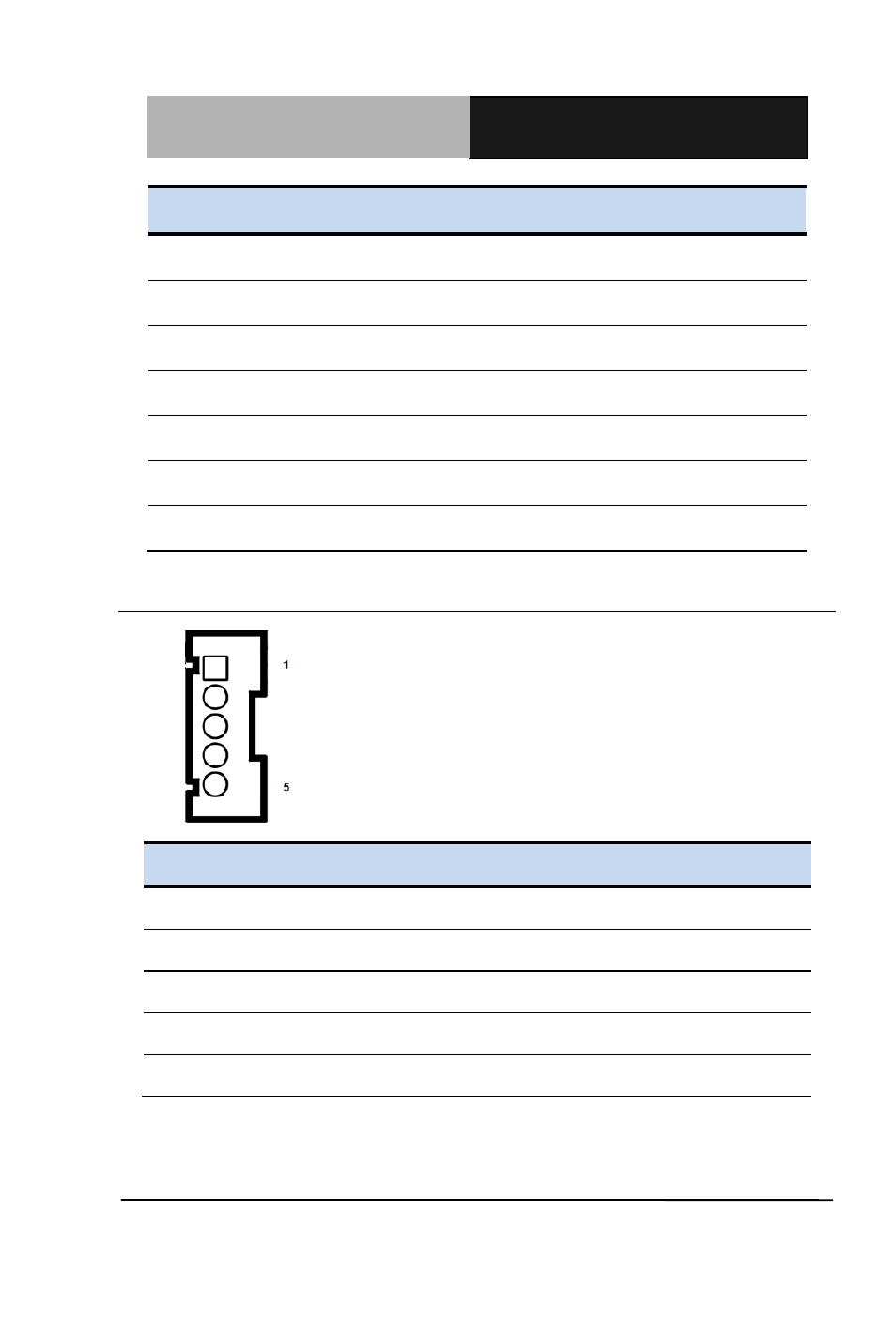

2.8 MCU Program Connector (CN19)
Pin Pin Name Signal Type Signal Level
1 MCLR# I/O +3.3V
2 +3.3VSB PWR +3.3V
3 GND PWR GND
4 ICSPDAT I/O +3.3V
5 ICSPCLK I/O +3.3V
