4bpin, 25bsignal, 5bsignal – AAEON EMB-QM87A User Manual
Page 31

M i n i - I T X
E M B - Q M 8 7 A
Chapter 2 Quick Installation Guide
2 - 17
Pin
Signal Pin
Signal
1
+5V_USB
2
P1_SSRX-
3
P1_SSRX+
4
GND
5
P1_SSTX-
6
P1_SSTX+
7
GND
8
P1_D-
9
P1_D+
10
N.C.
11
P2_D+
12
P2_D-
13
GND
14
P2_SSTX+
15
P2_SSTX-
16
GND
17
P2_SSRX+
18
P2_SSRX-
19
+5V_USB
20
N.C.
Note: The max. rating of pin1 is 0.9A @ 5V
The max. rating of pin19 is 0.9A @ 5V

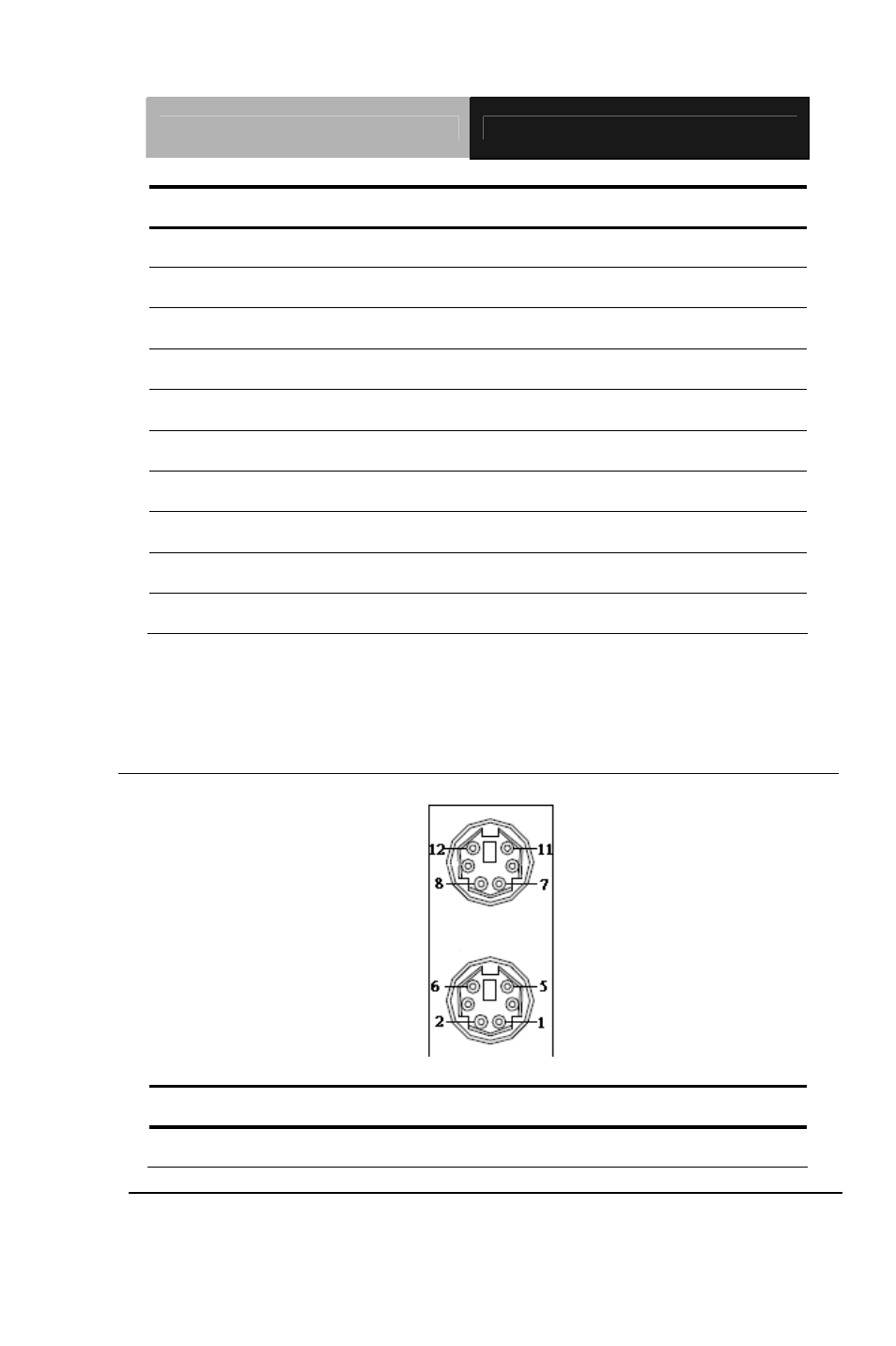

2.19 PS/2 keyboard & Mouse Connector (CN25)
Pin
Signal Pin
Signal
1
KB_DATA
2
N.C.
