AAEON EPIC-QM77 User Manual
Page 33

E P I C B o a r d
E P I C - Q M 7 7
Chapter 2 Quick Installation Guide
2-19
4
X- IN
5
X+ IN
6
SENSE IN
7
Y+ IN
8
X- IN
9
X+ IN

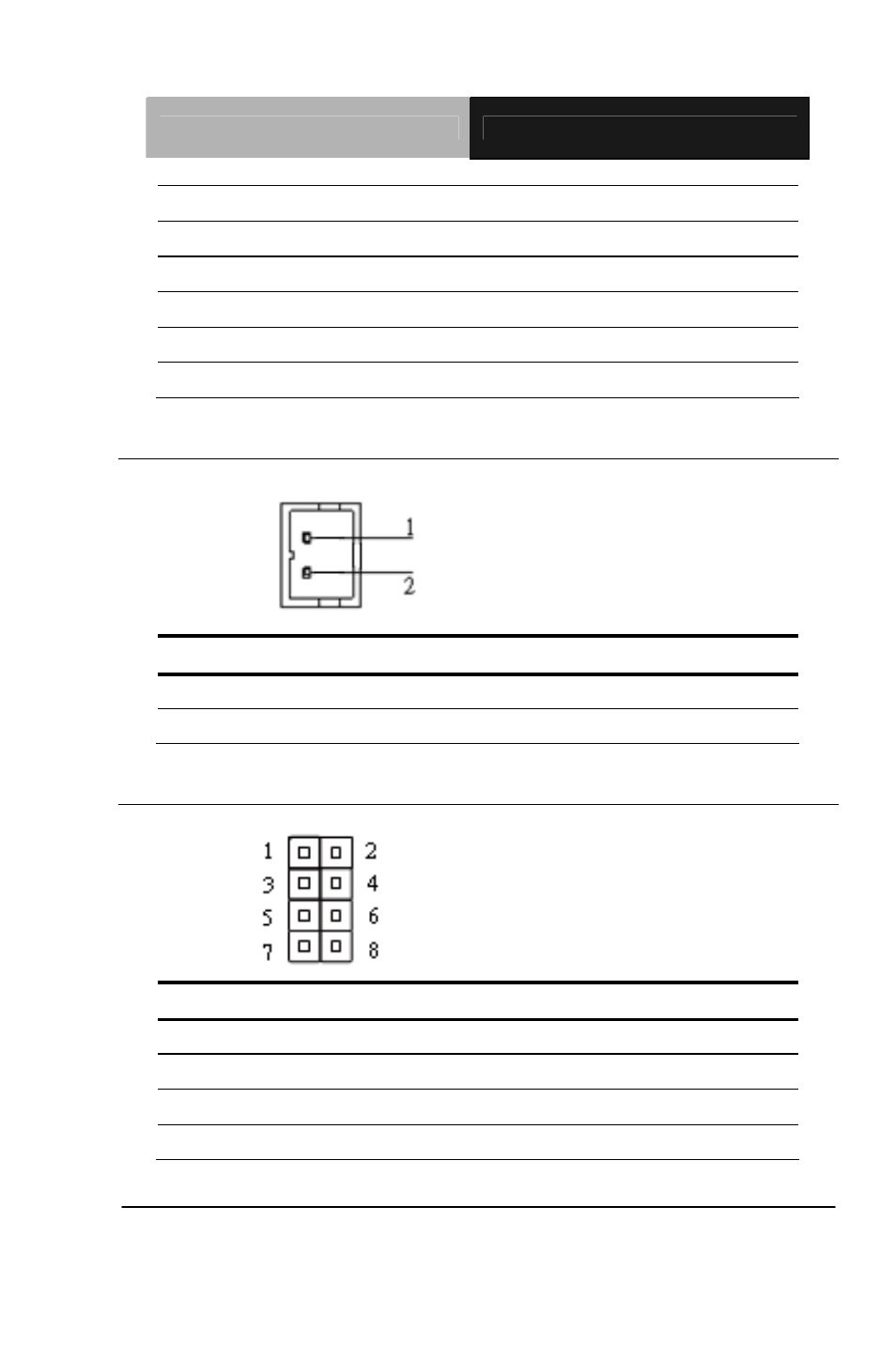

2.21 SATA Power Connector (CN3)
Pin
Pin Name
Signal Type
Signal Level
1 V5S
PWR +5V
2 GND
GND GND
2.22 SPI Flash Header (CN4)
Pin
Pin Name
Signal Type
Signal Level
1
V3.3M_SPI
PWR +3.3V
3
SPI_CE#_F
IN
5
SPI_SO_F
OUT
7
