AAEON EPIC-HD07 User Manual
Page 36
E P I C B o a r d
E P I C - H D 0 7
Chapter 2 Quick Installation Guide
2-22
6
GPIO5
13
7
GPIO6
15
8
GPIO7
17
9
GPIO8
23
10
GPIO9
21
11
GPIO10
19
12
GPIO11
8
13
GPIO12
6
14
GPIO13
4
15
GPIO14
2
16
GPIO15
1

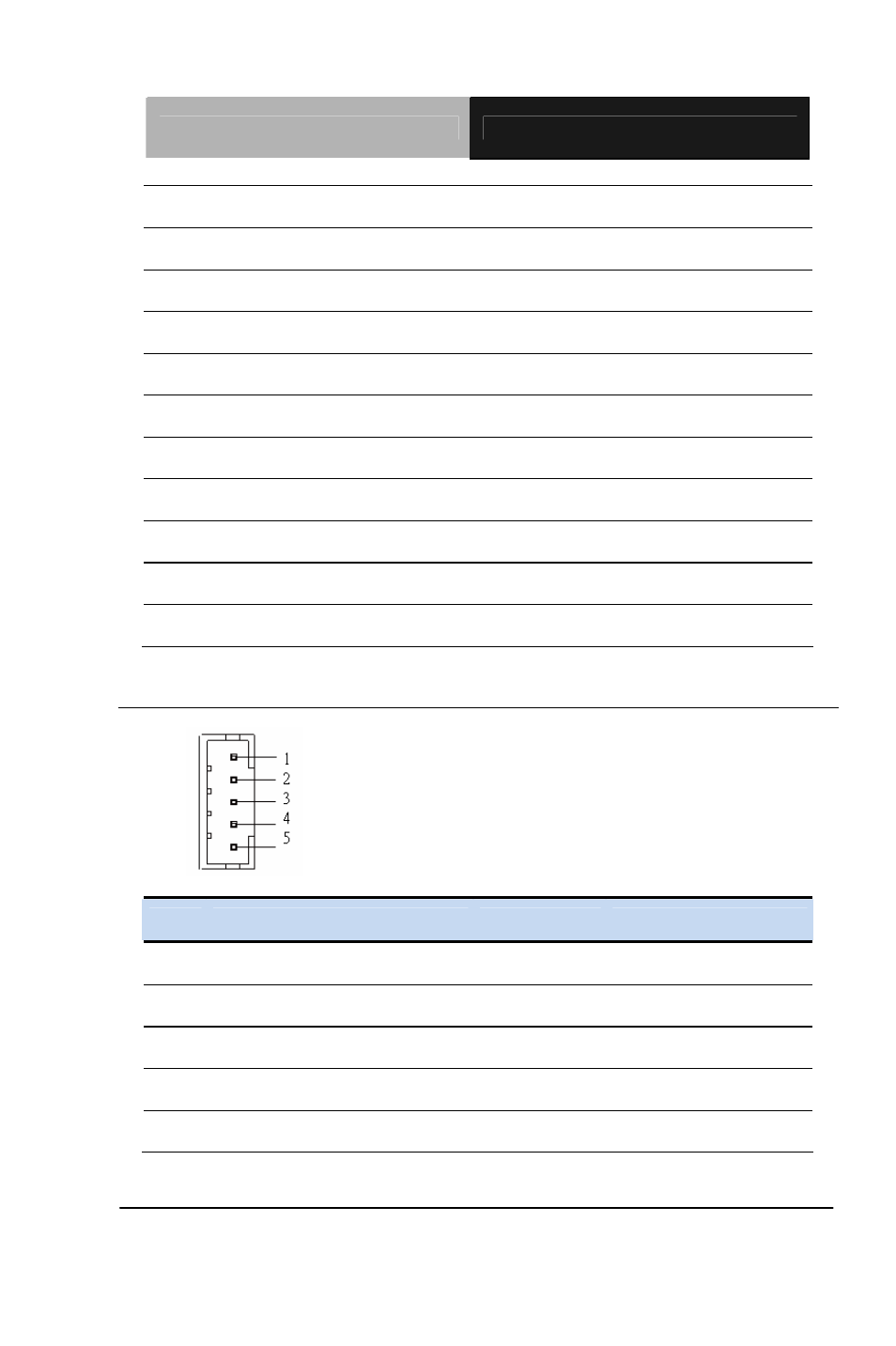

2.20 1st Backlight Connector (CN4)
Pin
Pin Name
Signal Type
Signal Level
1
LVDS Backlight PWR
OUT
2
LVDS Backlight control
OUT
3 GND GND
4 GND GND
5
LVDS Backlight Enable
OUT
