Backfilling. Use only fine, 1/8" to 3/4" pea gravel or 1/8" to 1/2" washed, crushed stone as backfill around the
access riser. Do not use sand or native soil as backfill. Tamp backfill lightly. Avoid running heavy equipment next to
the riser. A light layer of topsoil can be used at cover level.

Installation of cover. The cover features a twist-lock design and 4 stainless steel screws to secure it. When
installing the cover, line up the four tabs with the four receptacles and locking tongue which fits into a cut recess in
the under side of the cover. Push down and rotate the cover in a clockwise direction until the tongue bottoms in the
slot. Install the four stainless steel bolts to secure the cover. A padlock can be placed through a hole in the tongue
to deter unwanted entry. The cover is designed to handle light traffic loads such as walking or light lawn and garden
equipment. DO NOT RUN HEAVY TRACTORS OR OTHER EQUIPMENT OVER THE COVER. MAXIMUM LOAD
RATING IS 250 LBS.

Kit Number

Description

IKIT2-115

Installation accessories Kit, 2” discharge, 115V wiring box

IKIT2-230

Installation accessories Kit, 2” discharge, 230V wiring box (1-phase)

Liberty risers are sold independently or as a kit with all of the necessary installation accessories. If your riser did not
include the installation kit, contact your distributor for pricing and availability or call the factory at 1-800-543-2550. See
Liberty PRO-series literature for complete information on installation kits.

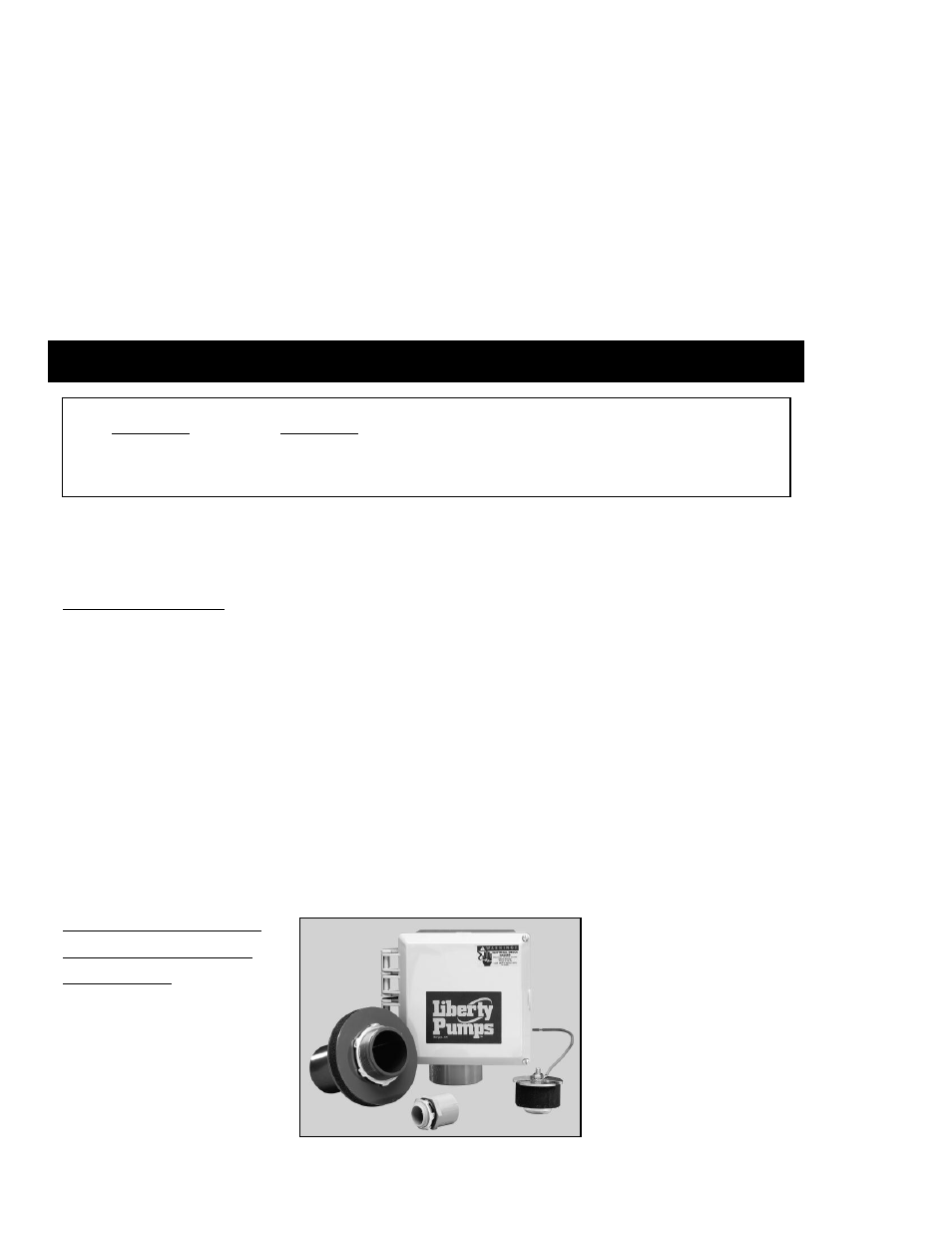

*Installation kits include:



Full flow 2” union-type check valve



PVC Ball Valve



(2) 90 degree PVC elbows



(2) 2” rubber pipe seal grommets



(2) SCH 80 PVC toe nipple ( Threaded pipe)



2” rubber coupler with clamps



Model JB120 or JB230 pump station wiring box with:



Terminal strip with separate alarm and pump control circuit



Receptacle for pump (115 volt or 230 volt depending on model)



Riser extension coupling and washers



Custom-engineered liquid tight cable seal for pump, switch and alarm cords



Electrical conduit hub

*Please note that installation kits do not include Schedule 40 PVC pipe.

JB120 or 230 Pump
Station Wiring Box
(NEMA 4X)

3 3

. Optional 2” Installation Kits
