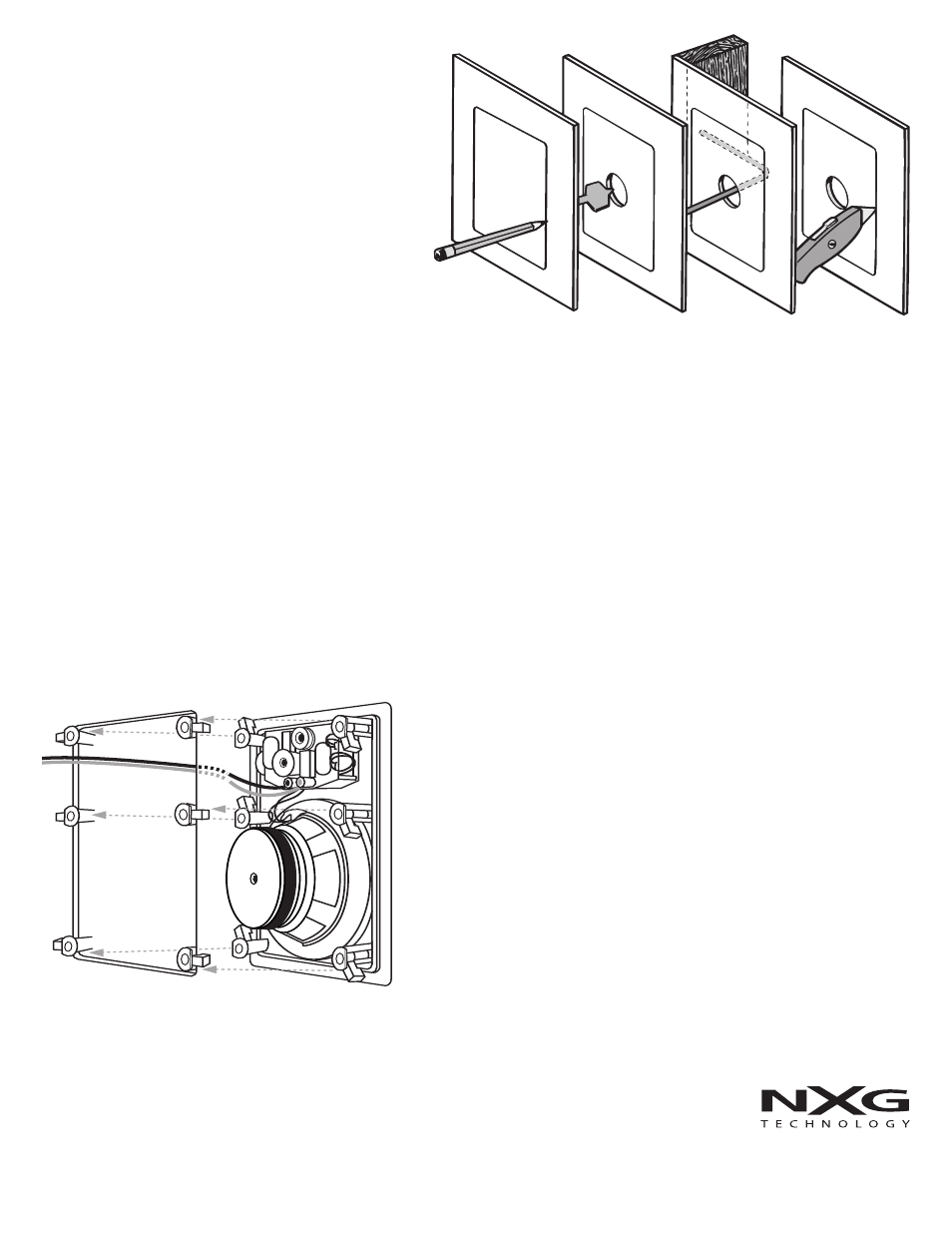

FIG. 4
(Continued from front)
NXG Speakers Three-Year Limited Warranty
If the NXG speaker system proves to be defective in workmanship or materials
within three years from the date of the original customer’s purchase, we will, at our
option, repair or replace the defective product.
Limitation of Implied Warranties
Any implied warranties, including warranties of merchantability and fitness for a
particular purpose, are limited in duration to the length of this warranty.
Exclusion of Certain Damages
NXG’s liability for any defective product is limited to repair or replacement of the
product at our option. NXG shall not be liable for incidental or consequential
damages of any kind or character because of product defects. Some states do
not allow limitations on how long an implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential damages, so the above limita-
tions and exclusions may not apply.
This Warranty Does Not Cover:
• Damage caused by abuse, accident, misuse, negligence, or improper operation.
• Any product whose serial number has been altered, defaced, or removed.
• Products that have been altered or modified.
• Normal wear and maintenance.
• Damages caused by shipping. (All claims for shipping damage must be made
with the carrier.)
reinstallation if desired.) The speaker’s outer surface will
accept ordinary latex wall paint or aerosol spray paint. Because
the speaker baffle surface behind the grille should remain
unpainted, you will need to cover this area with the supplied
cardboard paint mask. Cover the speaker’s interior black sur-
face, woofer and tweeter. Paint the outer speaker frame and
grille separately. (Grille painting hint: Use a paint roller that is
nearly out of paint to first paint the inside of the grille, then the
outside. This will avoid paint filling the grille perforations.)
5. Attach the wire to the input terminals on the rear of the
speaker. Remember to maintain proper polarity with the ampli-
fier by attaching the positive (+) lead to the red terminal and the
negative (-) lead to the black terminal.
6. See Fig. 5. With the speaker wire attached to the speaker,
slide the speaker up inside the cut-out hole. Center the speak-
er in the cut-out hole and turn the six locking screws clockwise
until the speaker is drawn up snugly to the wall board from
behind, clamping the speaker in place. Try to tighten each
screw equally. Replace the speaker grill by gently pressing it
into place.
New Construction
1. Determine speaker locations and mark them on your plans
for future reference.
2. If possible, run speaker wires after HVAC and electrical wiring
is in place.
3. Secure speaker wires in place along the run with insulated
staples only and be careful not to pierce the wire’s insulation.
Allow a bit of slack for expansion of building materials.
4. Needless to say, the actual speakers should not be installed
until the wall board is in place. In the meantime, leave several
feet of wire coiled up and secured at the back side of the
mounting hole.
5. To complete the installation follow steps 2 through 5 above.
Operational Check
After making all connections it’s a good idea to make sure
everything is working properly. Turn on your surround or stereo
system making sure the volume control is turned down and that
the balance control is in the center position. Activate a musical or
movie source such as FM, a CD or DVD player. Gently turn up
the volume, you should hear sound coming from your new NXG
speakers. If no sound is heard from any or all speakers, switch
off the system immediately and check for open or loose connec-
tions, wrong polarity or shorts, or proper source selection.
FIG. 5
NX-W6.2-P Specifications
Power Handling: 5 - 120 watts
Efficiency: 90dB @ 1 watt/1 meter
Frequency Response: 40 Hz - 22,000 Hz
Driver Complement: 6
1
/
2
˝ (165 mm) metallic anodized graphite-filled
injection-molded RCT cone woofer w/rubber surround
1˝ (25 mm) minimum diffraction, pivoting,
fluid-cooled, high tenacity teteron dome tweeter
Impedance: 8 ohms nominal, 6 ohms minimum
Grille: Corrosion-resistant powder coated aluminum
Overall Dimensions (H x W x D): 12
1
/
2
˝ x 9˝ x 3
1
/
2
˝
(318 mm x 229 mm x 89 mm)
Required Wall Cut-out (H x W): 10
7
/
8
˝ x 7
3
/
8
˝ (276 mm x 187 mm)
Warranty Service
Warranty service must be performed by an authorized service center, usually an NXG
speaker systems dealer or its authorized agent. You may obtain a list of authorized
service centers by contacting NXG. All warranty
repairs must be accompanied by the original bill of
sales. No other document is acceptable or is
required. This warranty gives you specific legal
rights, and you may also have other rights which
vary from state to state.
NXG reserves the right to revise speaker system
specifications without notice.
