frame and perforated grille. (Remove the foam inner grille back-

ing and put it aside in a clean and dust free area for later rein-

stallation if desired.) The speaker’s outer surface will accept ordi-

nary latex wall paint or aerosol spray paint. Because the speaker

baffle surface behind the grille should remain unpainted, you will

need to cover this area with the supplied cardboard paint mask.

Cover the speaker’s interior black surface, woofer and tweeter.

Paint the outer speaker frame and grille separately. (Grille paint-

ing hint: Use a paint roller that is nearly out of paint to first paint

the inside of the grille, then the outside. This will avoid paint filling

the grille perforations.)
5. Attach the wire to the input terminals on the rear of the

speaker. Remember to maintain proper polarity with the amplifier

by attaching the positive (+) lead to the red terminal and the

negative (-) lead to the black terminal.
6. See Fig. 5. With the speaker wire attached to the speaker,

slide the speaker up inside the cut-out hole. Center the speak-

er in the cut-out hole and turn the six locking screws clockwise

until the speaker is drawn up snugly to the wall board from

behind, clamping the speaker in place. Try to tighten each screw

equally. Replace the speaker grill by gently pressing it into place.

New Construction

1. Determine speaker locations and mark them on your plans

for future reference.
2. If possible, run speaker wires after HVAC and electrical wiring

is in place.
3. Secure speaker wires in place along the run with insulated

staples only and be careful not to pierce the wire’s insulation.

Allow a bit of slack for expansion of building materials.
4. Needless to say, the actual speakers should not be installed

until the wall board is in place. In the meantime, leave several

feet of wire coiled up and secured at the back side of the mount-

ing hole.
5. To complete the installation follow steps 2 through 5 above.

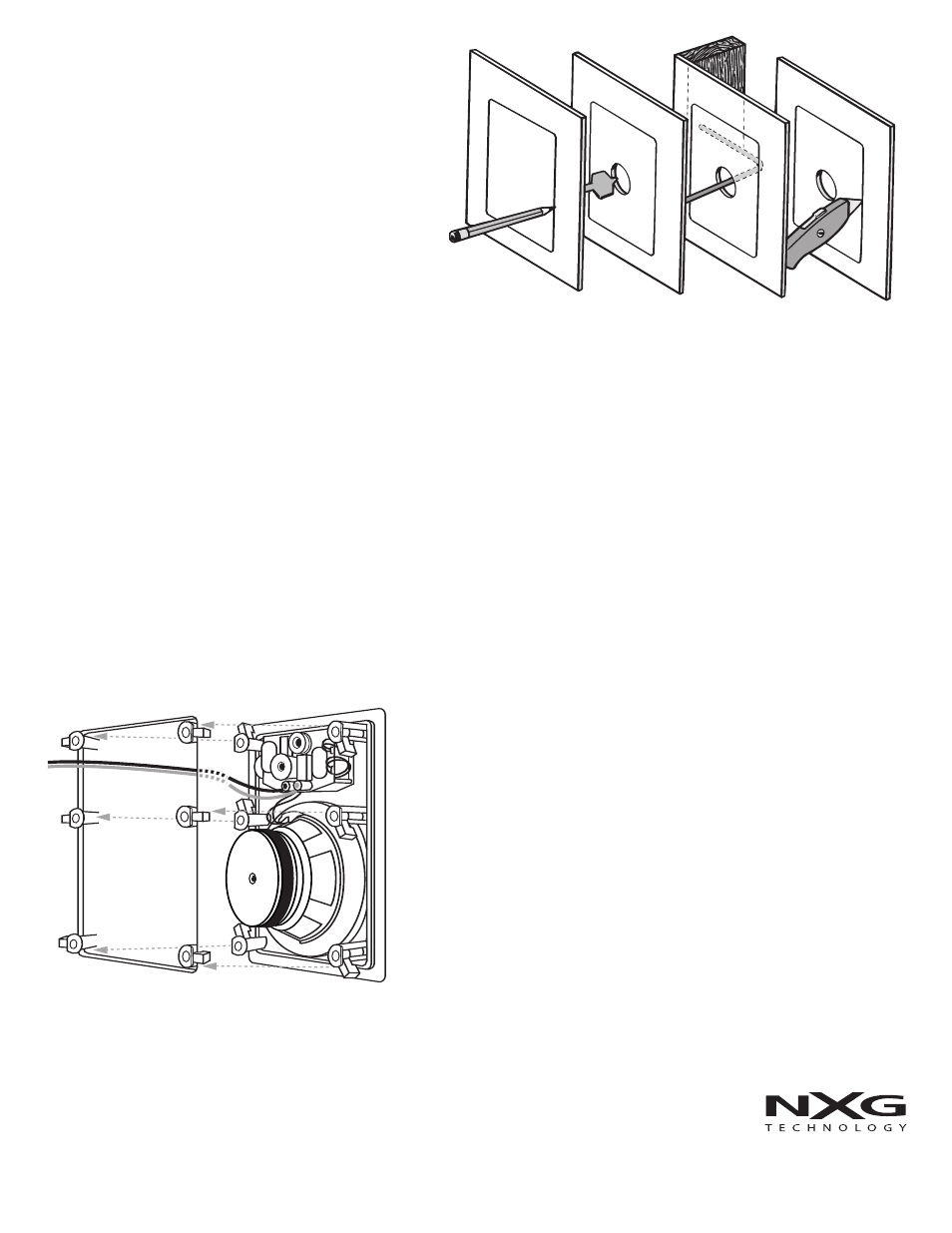

FIG. 5

NX-W8.3-P Specifications

Power Handling: 5 - 150 watts

Efficiency: 90dB @ 1 watt/1 meter

Frequency Response: 35 Hz - 22,000 Hz

Driver Complement: 8˝ (204 mm) metallic anodized graphite-filled,

injection-molded RCT cone woofer w/rubber surround

˝ (63 mm) pivoting metallic anodized

polycarbonate cone midrange

1˝ (25 mm) minimum diffraction, pivoting fluid-cooled,

high tenacity teteron dome tweeter

Impedance: 8 ohms nominal, 6 ohms minimum

Grille: Corrosion-resistant powder coated aluminum

Overall Dimensions (H x W x D): 14

˝ x 10

˝ x 3

(368 mm x 267 mm x 89 mm)

Wall Cut-out (H x W): 12

˝ x 8

˝ (372 mm x 222 mm)

FIG. 4

16648 North 94th Street

Scottsdale, AZ 85260

1-800-733-0008

Operational Check

After making all connections it’s a good idea to make sure

everything is working properly. Turn on your surround or stereo

system making sure the volume control is turned down and that

the balance control is in the center position. Activate a musical or

movie source such as FM, a CD or DVD player. Gently turn up the

volume, you should hear sound coming from your new NXG

speakers. If no sound is heard from any or all speakers, switch off

the system immediately and check for open or loose connections,

wrong polarity or shorts, or proper source selection.
