The JACKAROO lets you easily split signals,
change connector gender,
perform attentuation, and more.

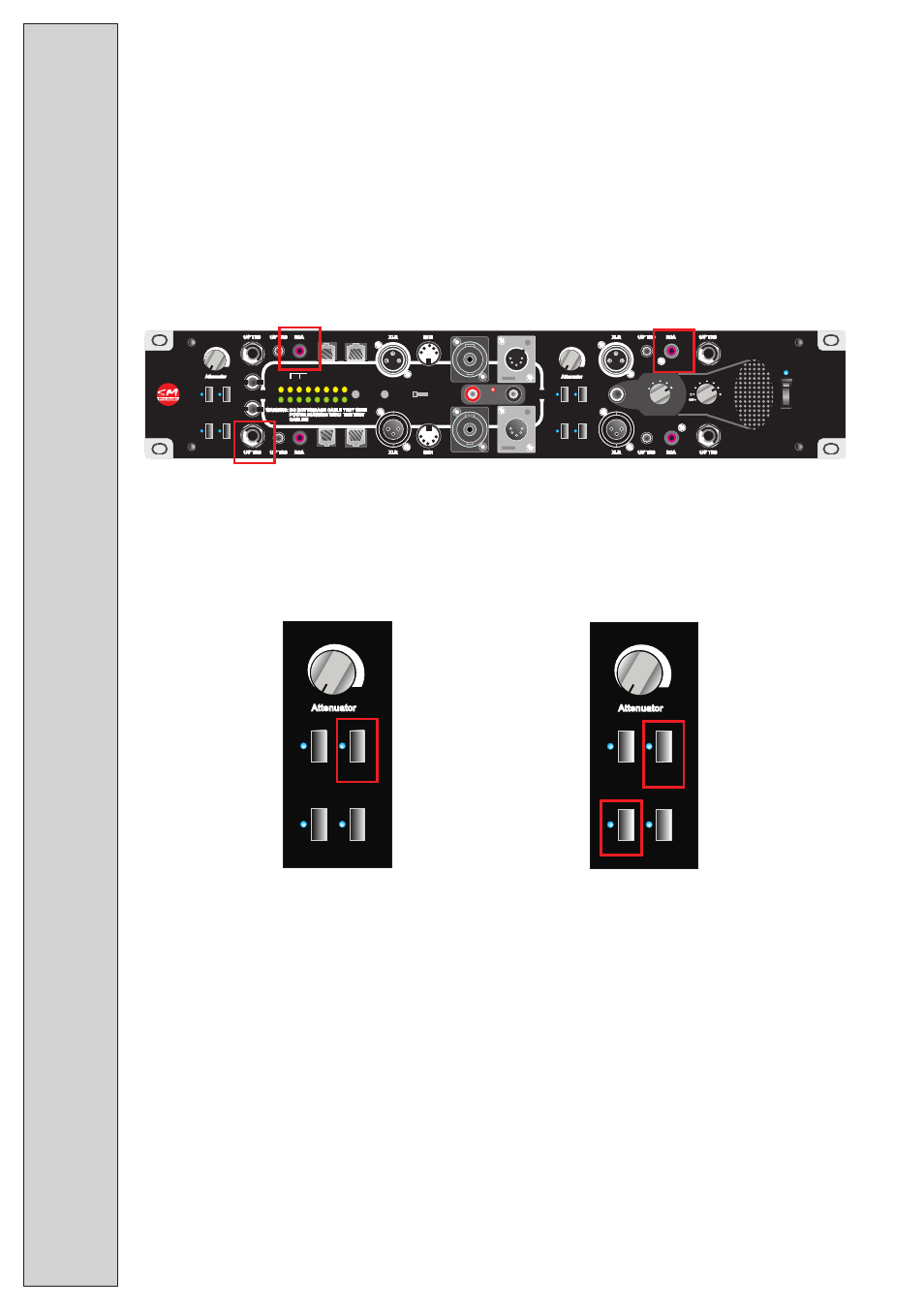

In this example we’ll take stereo 1/4" TRS cable and split the signal into two mono
RCA outputs.
1. Make sure that the CABLE TEST switch is NOT engaged
2. Connect the 1/4
"
TRS stereo source signal into the section A 1/4
" input (lower left).
3. Connect an RCA cable to the section A RCA output (upper left) and a second
4. Select LEFT using the L-R switch in the section A control panel.
5.
Select RIGHT and set LINK to ON in the section B control panel.
The signal will now be split.
If the signal level is too high on one or both sides, switch ATT (attenuation) ON and
use the rotary control(s) to attenuate the signal.
If the signal needs to be transformer isolated, or the ground needs to be lifted to
remove hum and noise, simply engage the GND LFT switch.
By following the above example, you can split, attenuate, and combine signals,
change the gender of connectors, and create a variety of input/output configurations.
