3 Introduction
PEQ505 is a 500 series dual slot 5 channel parametric equalizer.
You have 5 separate parametric equalizers at your disposal and each channel can be switched on
or off as necessary. The VU meter displays the master output level. Last but not least: The
PEQ505 audio circuit uses LME49720 ultra-low distortion/low noise Op Amps, for superb audio
input and output.
3.1 unboxing
Your SM Pro Audio PEQ505 was carefully packed in the factory and the packaging was designed
to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine
the packaging and its contents for any signs of physical damage, which may have occurred in
transit.
If the unit is damaged, please do not return it to us, but notify your dealer and the shipping
company immediately, otherwise claims for damage or replacement may not be granted. Shipping
claims must be made by the consignee.
3.2 connecting
The SM Pro Audio PEQ505 is a 500 series compatible module, which connects to a 500 series
power chassis via the rear multipin slot. Please ensure the power is off before slotting your

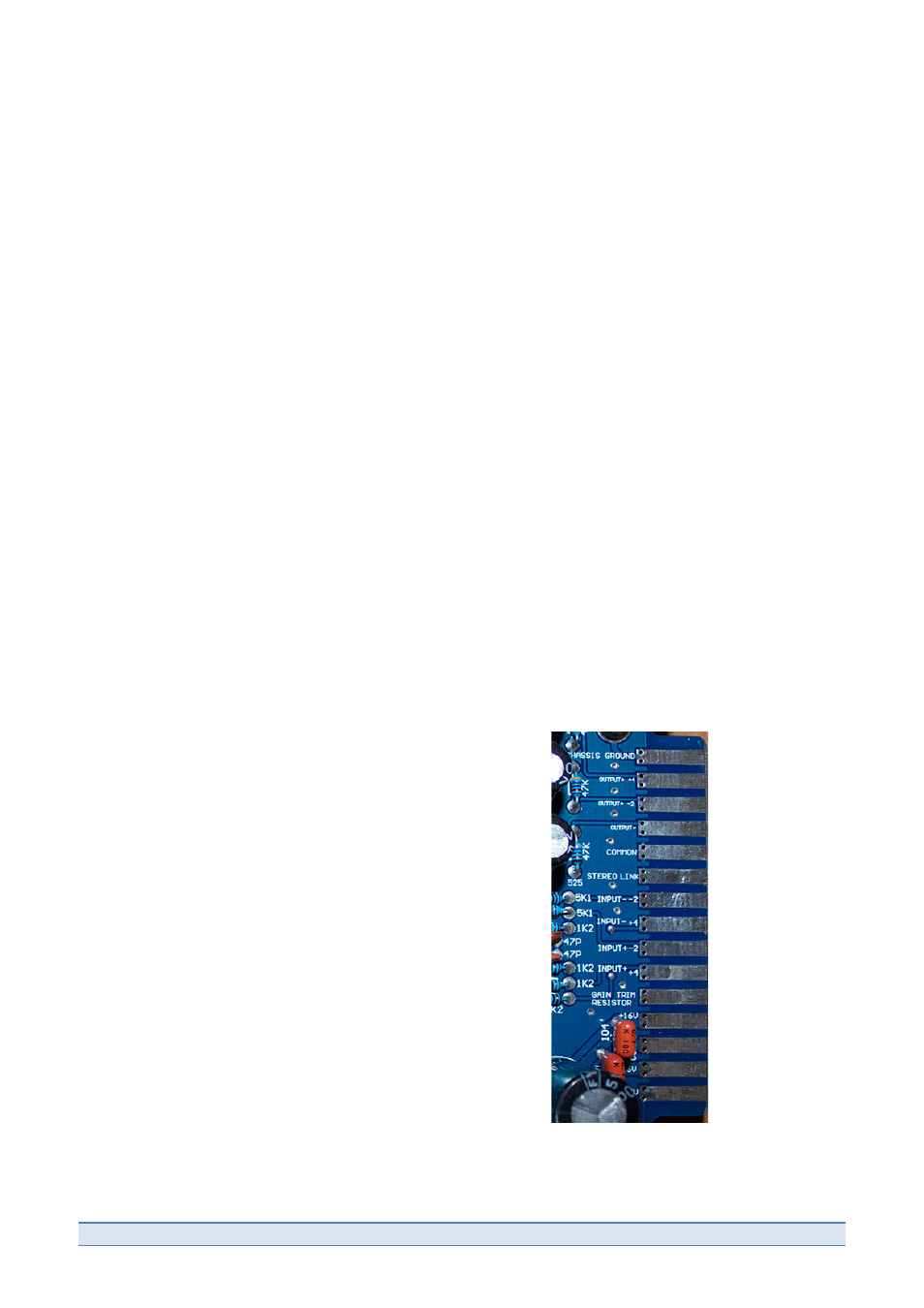

module into your 500 series power chassis. Below is the feature layout of the multipin
connector.
Terminal 1 CHASSIS
2 OUTPUT 1 + (+4 Level)
3 OUTPUT 2 + (-2 Level)
4 OUTPUT -
5 GND
6 STEREO LINK
7 INPUT 2 - (-2 Level)
8 INPUT 1 - (+4 Level)
9 INPUT 2 + (-2 Level)
10 INPUT 1 + (+4 Level)
11 GAIN TRIM RESISTOR
12 +16V DC
13 GND
14 -16V DC
15 +48V DC
