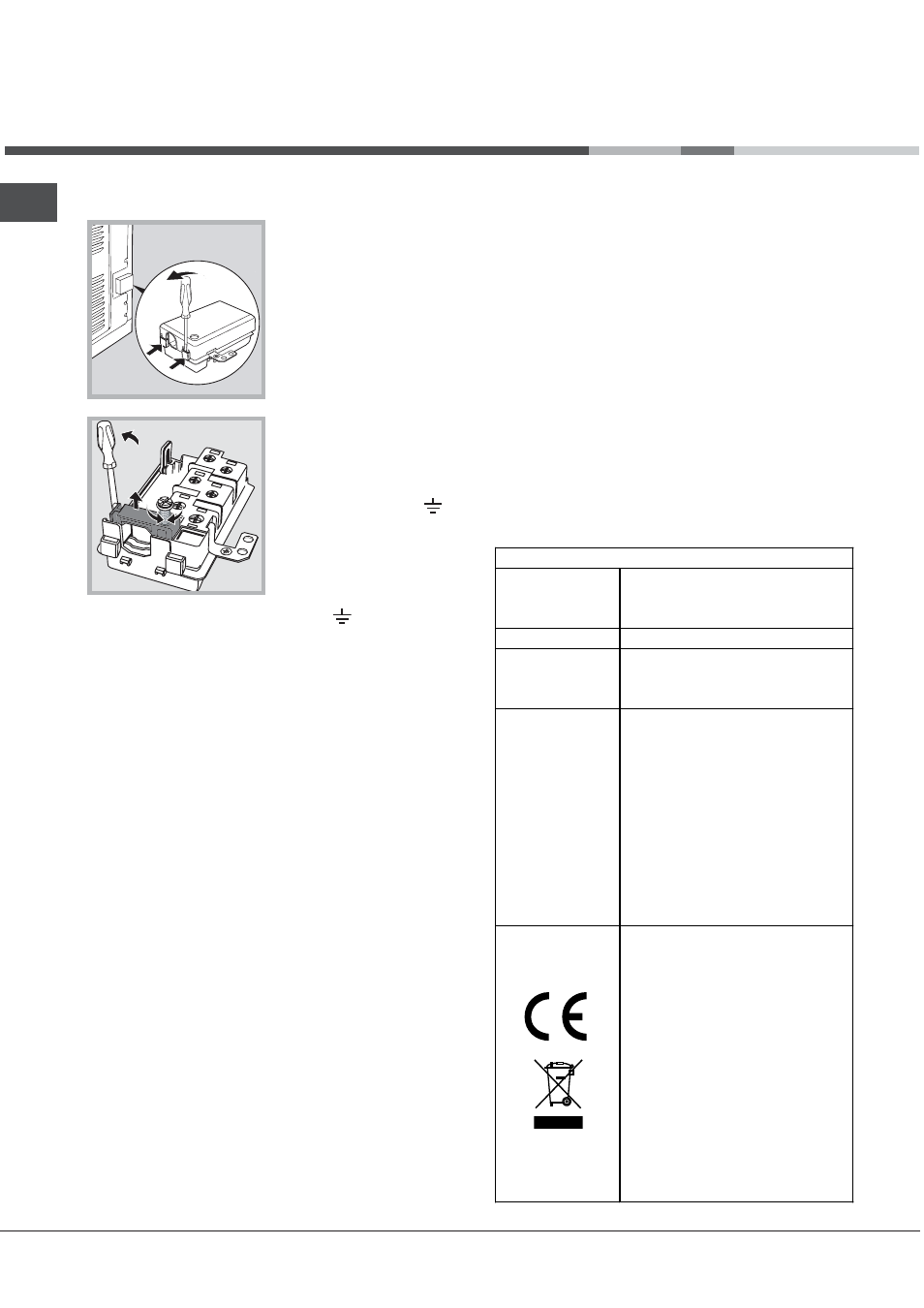

Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(see diagram).
2. Loosen the cable
clamp screw and
remove it, using a
screwdriver as a lever
(see figure).
3. Remove the wire
contact screws L-N-
, then fasten the wires
under the screw heads,
respecting the colour
code: Blue (N), Brown
(L) and Yellow-Green
Verde ( ).
Connecting the electricity supply cable to the mains
Install a standardised plug corresponding to the
load indicated on the data plate (see table).
The appliance must be directly connected to the
mains using an omnipolar circuit-breaker with a
minimum contact opening of 3 mm installed between
the appliance and the mains. The circuit-breaker
must be suitable for the charge indicated and must
comply with current electrical regulations (the
earthing wire must not be interrupted by the circuit-
breaker). The supply cable must be positioned so
that it does not come into contact with temperatures
higher than 50°C at any point.
The installer must ensure that the correct electrical
connection has been made and that it is fully
compliant with safety regulations.
Before connecting the appliance to the power
supply, make sure that:
• The appliance is earthed and the plug is compliant
with the law.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data
plate (see below).
• The voltage is in the range between the values
indicated on the data plate (see below).
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it.
Do not use extension cords or multiple sockets.
Once the appliance has been installed, the power
supply cable and the electrical socket must be
easily accessible.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced
by authorised technicians only.
The manufacturer declines any liability should
these safety measures not be observed.
TABLE OF CHARACTERISTICS
Dimensions
width 43.5 cm
height 32 cm
depth 40 cm
Volume 56 l
Electrical
connections
voltage: 230V ~ 50Hz /
maximum power absorbed
2800W
ENERGY
LABEL
Directive 2002/40/EC on the
label of electric ovens.
Regulation EN 50304 Energy
consumption for Natural
convection – heating mode:
= Traditional mode;
Declared energy
consumption for Forced
convection Class – heating
mode: K Baking mode.
This appliance conforms to
the following European
Economic Community
directives: 2006/95/EEC
dated 12/12/06 (Low Voltage)
and subsequent amendments
– 2004/108/EEC dated
15/12/04 (Electromagnetic
Compatibility) and
subsequent amendments -
93/68/EEC dated 22/07/93
and subsequent amendments
- 2002/96/EEC and
subsequent amendments.
