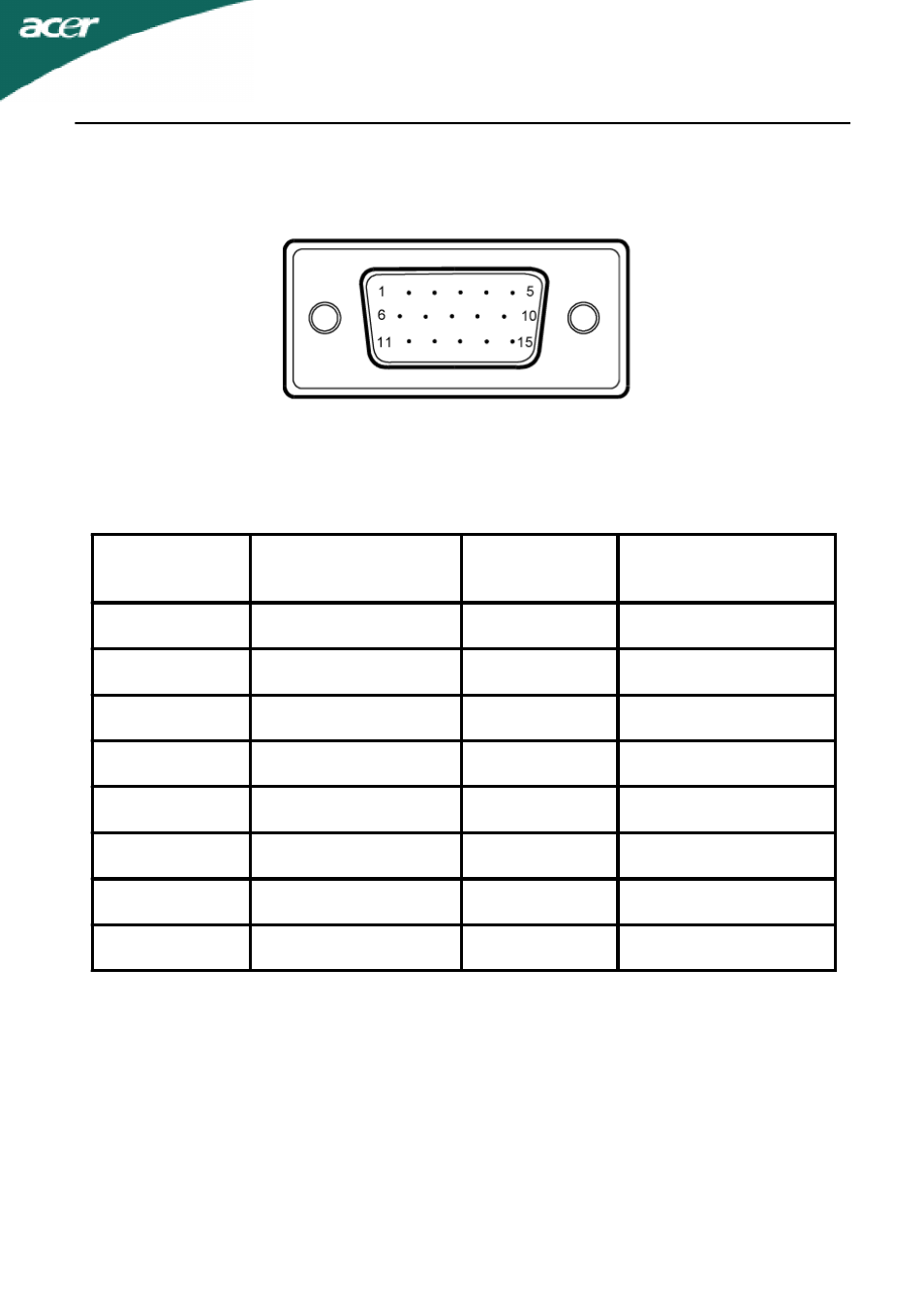

ASIGNACIÓN DE CONTACTOS DE LOS CONECTORES
Cable de señal de pantalla en color de 15 contactos
Nº DE
CONTACTO.
DESCRIPCIÓN
Nº DE
CONTACTO.
DESCRIPCIÓN
1.
Rojo
9.
+5V
2.
Verde
10.
Tierra lógica
3.
Azul
11.
Tierra del monitor
4.
Tierra del monitor
12.
Datos serie DDC
5.
Retorno DDC
13.
Sinc. H.
6.
Tierra-R
14.
Sinc. V.
7.
Tierra-V
15.
Reloj serie DDC
8.
Tierra-A
