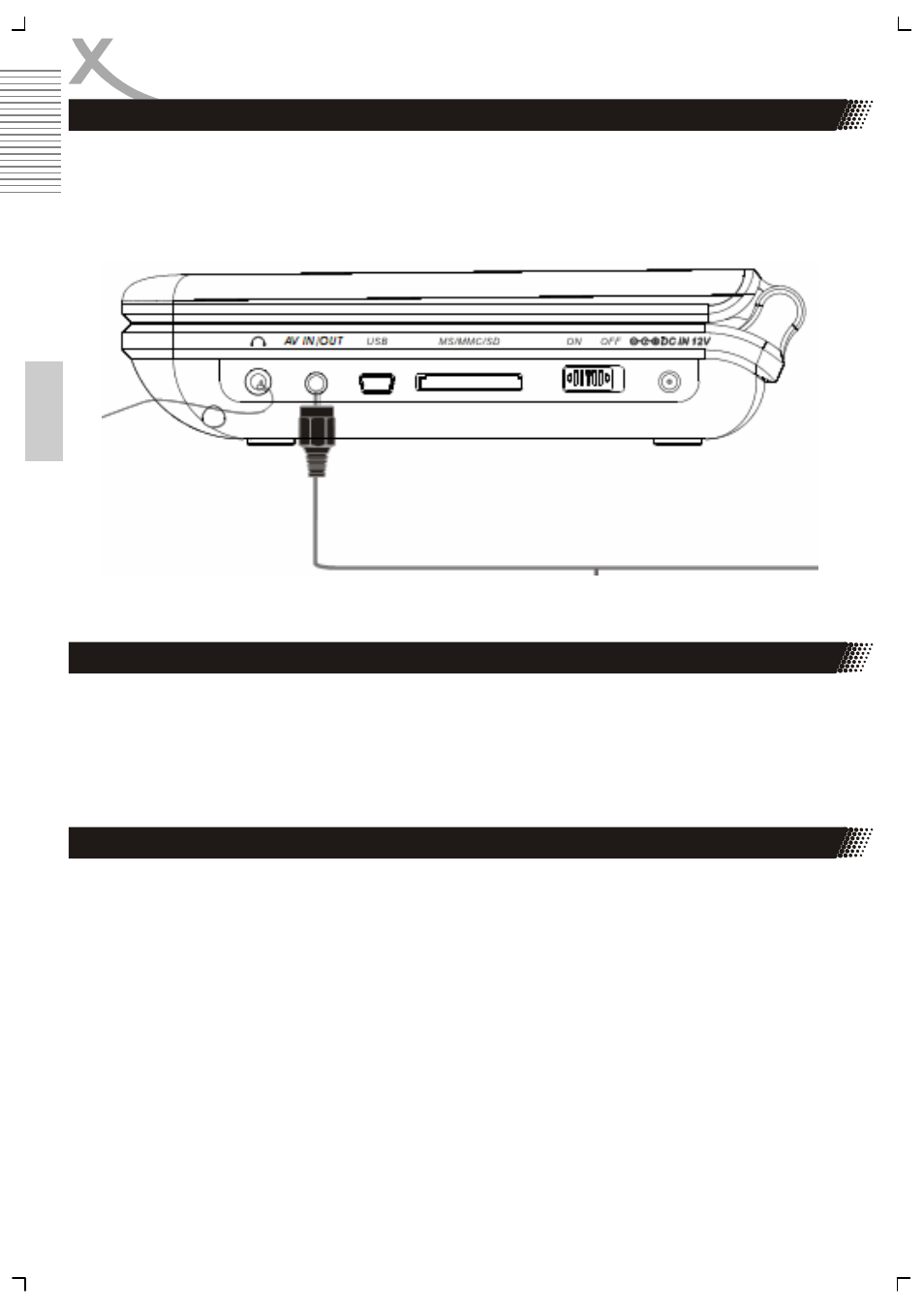

Connecting to a TV set
CONNECTING
1. Turn off the power and unplug both units before setting up any connections.
2. Press the DVD/DTV/AV button until AV mode appears on the screen.
3. Connect the adapter cable (supplied by the HSD 7560) to AV OUT.
4. Connect the yellow cable (Video) to the adaptor cable and to the VIDEO-IN of the TV set.
5. Connect the red and white cable to the adaptor cable and to the AUDIO-IN of the TV set.
By using the SCART connection on the TV set, please uses the AV/SCART adapter and connect the
AV cable with the AV/SCART adapter.
1. Connect the headphones. Headphones with a 3.5 mm stereo plug can be connected.
2. Adjust the volume by turning the dial.
3. Avoid listening to sound at levels which may be harmful to your ears.
Note:
Do not use the earphone continously over a prolonged period.
You can uses the HSD 7560 as a LCD screen by using the AV IN and AV Out function.
1.
In order to play back the picture from another playback device (e.g. digital camera) on the
LCD screen, connect the audio/video cable to the AV socket and the other end to the play-
back device.
2. Switch the device into AV mode by pressing the DVD/DTV/AV more times.
Connecting headphones
Audio/Video IN
