CXA000 12’ Swing Sampler w/Pole and Bottle

The CXA000 Swing Sampler is designed for collecting liquid samples from
a horizontal flowing stream such as a sewer. It allows collection from
various angles, including 90

o

. Different sizes of bottles/containers may be

attached to the bottle holder, allowing for a variety of applications. A 960
ml bottle is provided with the Swing Sampler and Global Water also offers a
500 ml bottle and corresponding snapper ring. The pole can be extended up
to 12 feet (3.66 m).



Assembly Instructions

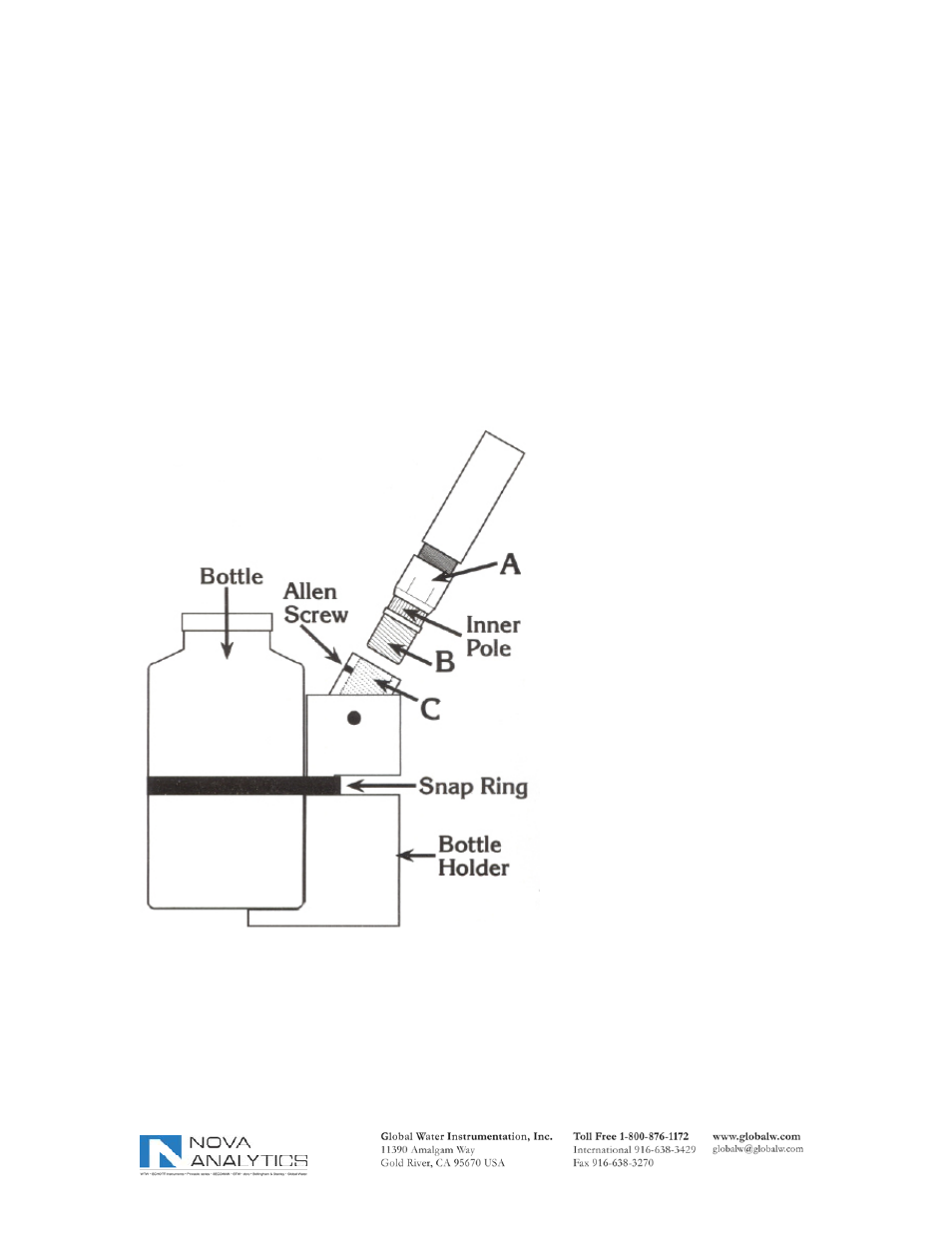

To connect the pole to the
bottle holder:

1. Locate part B (on the

pole) and part C (on
the bottle holder).

2. Turn part B clockwise

into part C until it is
snug.

3. Use the supplied Allen

wrench to tighten the
Allen screw located in
the inner pole screw
threads of the bottle
holder.


Assembly is now complete
