25A Make-Up Water Feeder
For Receiving Tanks
For Residential and Commercial Applications
Series 25A
OPERATION
Maximum Body Pressure: 35 psi
Maximum Water Supply Pressure: 100 psi
INSTALLATION – TOOLS NEEDED:
Two (2) pipe wrenches, pipe dope, assorted fittings and lengths of 1” pipe.
PUMP
DISCHARGE
FEED PUMP
RECEIVER TANK
BLOW-OFF
VALVES
STRAINER
BASKET ASS’Y
OUT
CONDENSATE
RETURN
VENT
CHECK VALVE
BY PASS
3 /
4
’’ PIPE
IN
WATER SUPPLY
DISCHARGE
2/3
1/3
a. The feeder is usually mounted one-
third (1/3) of the way up from the
bottom of the tank. This provides two-
thirds (2/3) of the tank for return
condensate.
STEP 1 - Determine Location of the Feeder
• Before using this product read and understand instructions.
• Save these instructions for future reference.
• All work must be performed by qualified personnel trained in the proper application, instal-
lation, and maintenance of plumbing, steam, and electrical equipment and/or systems in
accordance with all applicable codes and ordinances.
• Drain water level down below feeder and let cool to 80˚F (27˚C) before servicing.
• If tank or receiver is pressurized relieve pressure to 0 psi (0 Bar) before servicing.
WARNING
CAUTION
! WARNING

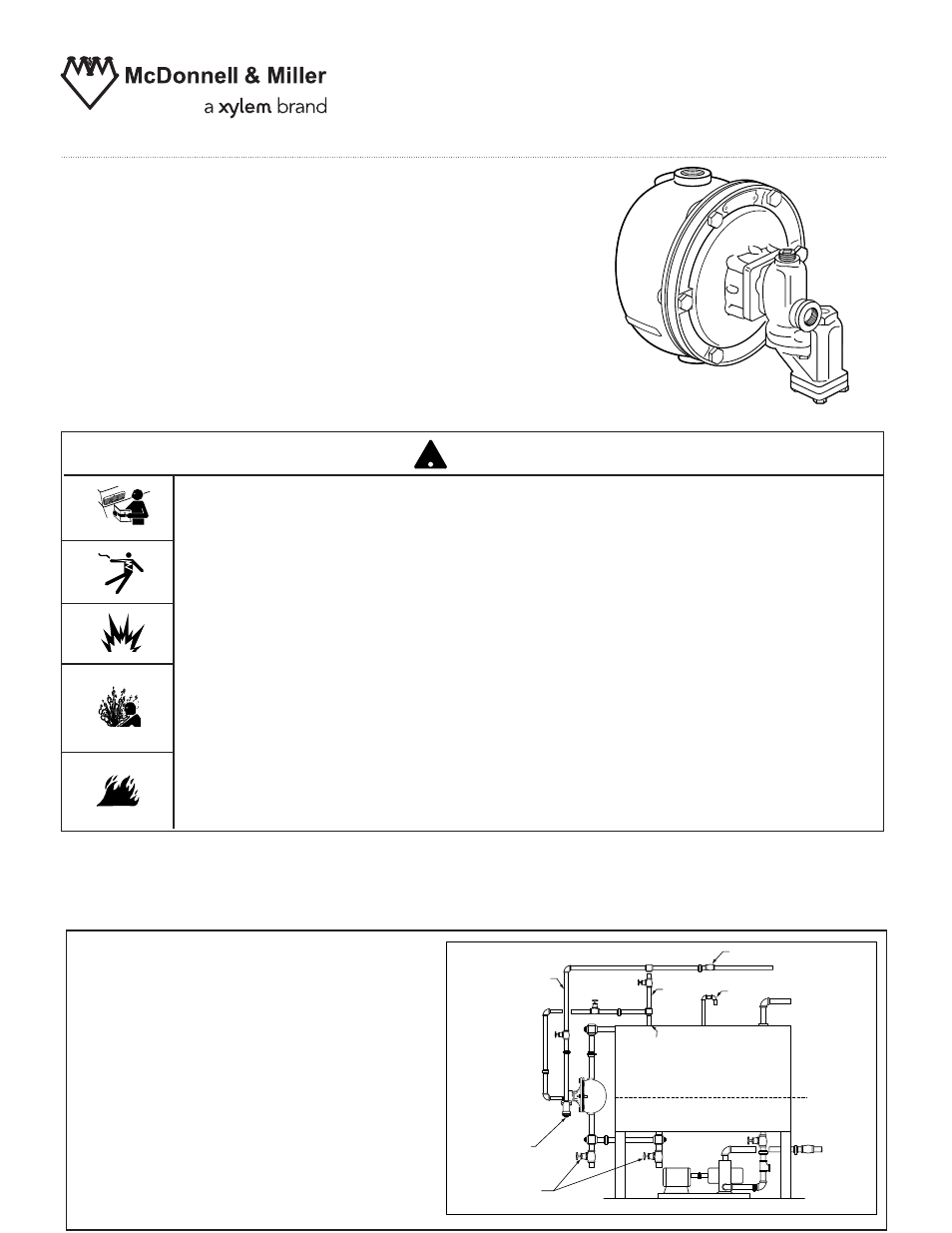

INSTRUCTION MANUAL
MM-318C
California Proposition 65 warning! This product contains chemicals known to the •
state of California to cause cancer and birth defects or other reproductive harm.
Previous controls should never be installed on a new system. Always install new •
controls on a new boiler or system.
CAUTION:
A more frequent replacement interval may be necessary based on the condition of
the unit at time of inspection. McDonnell Miller s warranty is one (1) year from date
of installation or two (2) years from the date of manufacture.
Failure to follow this warning could cause property damage, personal inj ury or death.
•
!
& '
