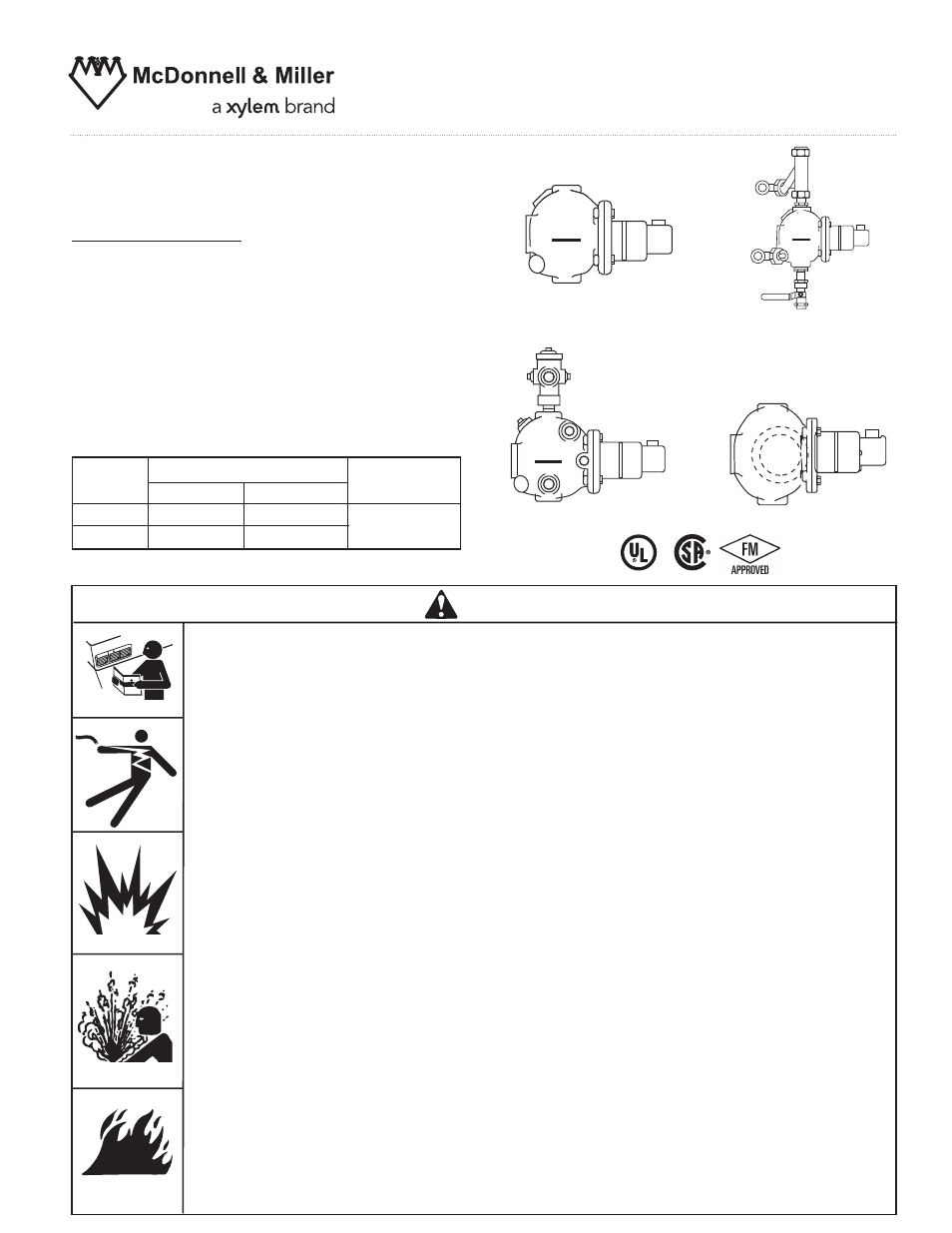

INSTRUCTION MANUAL
Series 64
Low Water Cut-Off
CUT-OFF
LEVEL
• Before using this product read and understand instructions.
• Save these instructions for future reference.
• All work must be performed by qualified personnel trained in the proper application, instal-
lation, and maintenance of plumbing, steam, and electrical equipment and/or systems in
accordance with all applicable codes and ordinances.
• To prevent serious burns, the boiler must be cooled to 80˚F (27˚C) and the pressure must be
0 psi (0 bar) before servicing.
• To prevent electrical shock, turn off the electrical power before making electrical connections.
• This low water cut-off must be installed in series with all other limit and operating controls
installed on the boiler. After installation, check for proper operation of all of the limit and
operating controls, before leaving the site.
• We recommend that secondary (redundant) Low Water Cut-Off controls be installed on all
steam boilers with heat input greater than 400,000 BTU/hour or operating above 15 psi of
steam pressure. At least two controls should be connected in series with the burner control
circuit to provide safety redundancy protection should the boiler experience a low water
condition. Moreover, at each annual outage, the low water cut-offs should be dismantled,
inspected, cleaned, and checked for proper calibration and performance.
• To prevent serious personal injury from steam blow down, connect a drain pipe to the control
opening to avoid exposure to steam discharge.
• To prevent a fire, do not use this low water cut-off to switch currents over 7.4A, 1/3 Hp at
120 VAC or 3.7A, 1/3 Hp at 240 VAC, unless a starter or relay is used in conjunction with it.
WAR NING
CAUT ION
WARNING
Model 64
CUT-OFF
LEVEL
Model 64-CB
CUT-OFF
LEVEL
Model 64-A
Model 764
Typical Applications:
- Primary or secondary low water cut-off
for hot water and steam boilers.
- Low water cut-off
- High water cut-off
- Alarm actuator
OPERATION
Maximum Boiler Pressure: 50 psi (3.5 kg/cm 2 )
Electrical Ratings
Motor Switch Rating (Amperes)
Voltage Full Load Locked Rotor Pilot Duty
120 VAC 120 VA at
240 VAC 120 or 240 VAC
NOTE: 11MV is rated 24VA @ 24VAC to 120VAC.
MM-200G
7.4 44.4
3.7 22.2
California Proposition 65 warning! This product contains chemicals known to the •
state of California to cause cancer and birth defects or other reproductive harm.
Previous controls should never be installed on a new system. Always install new •
controls on a new boiler or system.
CAUTION:
A more frequent replacement interval may be necessary based on the condition of
the unit at time of inspection. McDonnell Miller s warranty is one (1) year from date
of installation or two (2) years from the date of manufacture.
Failure to follow this warning could cause property damage, personal inj ury or death.
!
& '
