Angled installation
The picture below shows the angled installation with the mounting
hardware attached accordingly
• Use the 0.8‘‘ (20 mm) and the 0.87‘‘ (22 mm) spacer at the upper
mounting eyelet
• Use the 0.2‘‘ (5 mm) spacer at the lower mounting eyelet
• Turn the rubber grommets in such a way that they are parallel to the
wall.
• Fix the manifold by attaching the side of the mounting bracket with the
small hole spacing to the manifold.
If you purchased the base module without manifold
• Attach the manifold [see previous chapter]
• Install the station directly on the wall or in a sufficiently large cabinet
• Use the two eyelets of the base module for installation
• Use the spacers, the grommets and the washers.
• In addition, attach the manifolds. (For the Laing segmented plastic
manifold, special attachment hardware is available)
Important advice for avoiding noise problems
• Avoid any metal contact between the base module and the wall
• Avoid any metal contact between the manifold and the wall
• Use rubber grommets at all mounting points on both sides to avoid
metal contact between the mounting screws and base module or
manifold [the rubber grommets and washers for the mounting eyelets
of the MOH2 are supplied with the station].

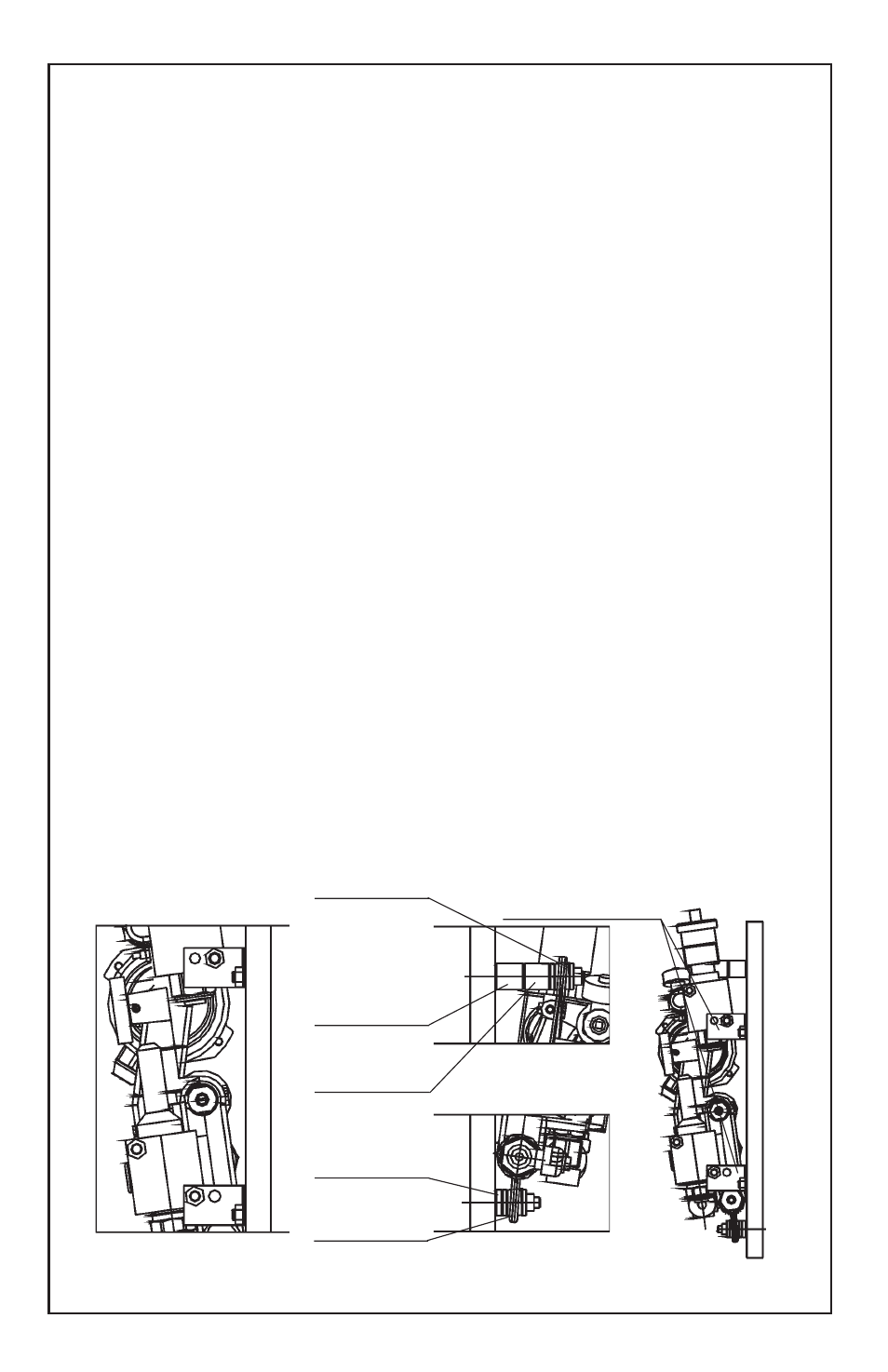

Grommet Mounting
bracket
[large hole spacing]
Spacer 20 mm
Spacer 22 mm
Spacer 5 mm
Grommet
