Xylem IM184 R05 Ditch Wizard Contractor Dewatering Pump - Manual (Page 3)

3

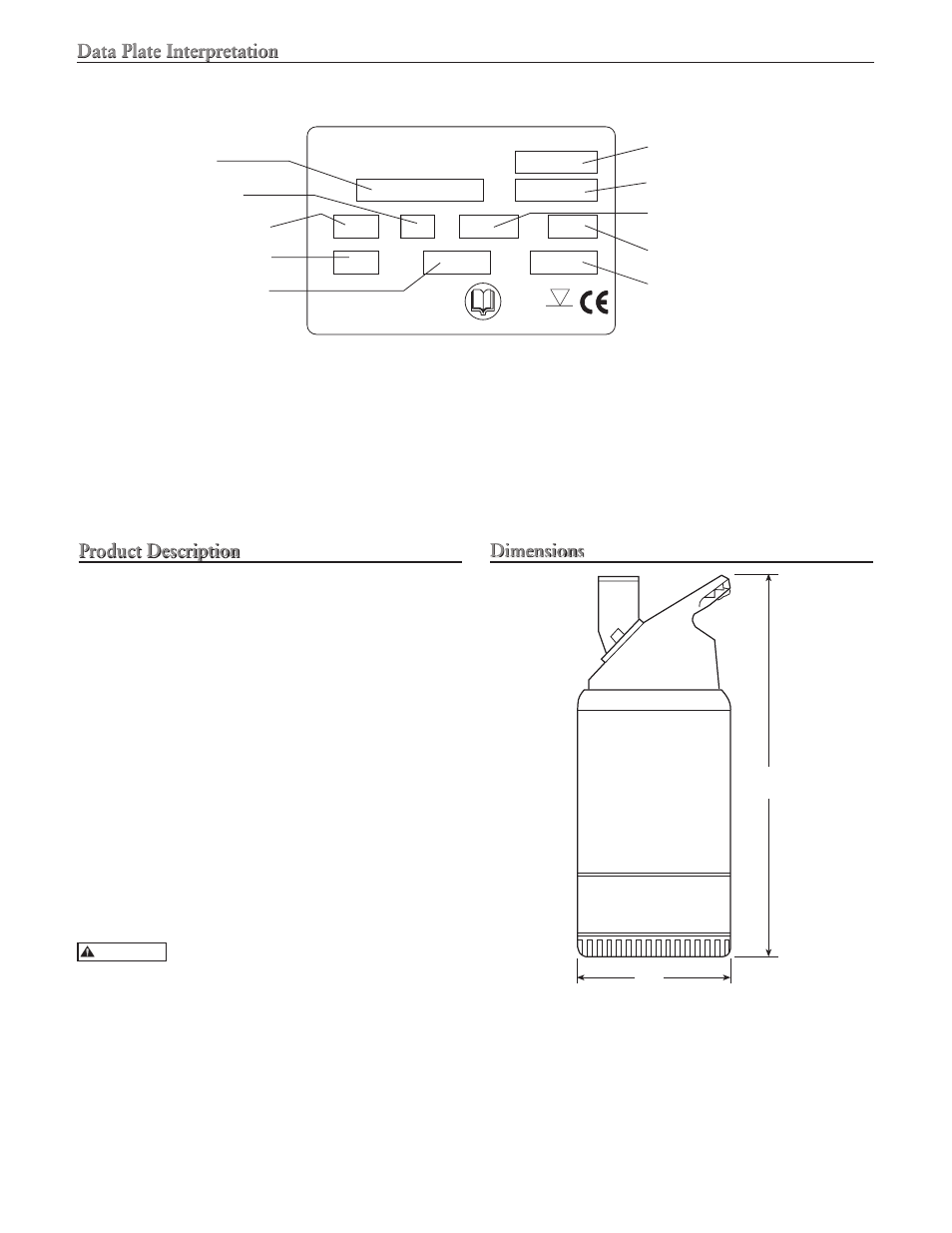

Data Plate Interpretation
U
561 71 00
I P A
V H
max
Q
max
IP 68
5 m
IEC 335-2-41 Class F
Hz
Made in Sweden
No. Type
P/N
Model
Frequency
Rated voltage
Rated current
Ouput power
Part number
Serial number
Weight
H max
Q max
Note: The Nameplate HP ratings on these dewatering pumps have been converted from the common European
Kw designation. This created a slight difference between the HP rating used in our literature versus the
pump’s nameplate HP. Therefore, when using this manual:
½ HP Model = a .6 nameplate rating
1 HP Model = 1.1 nameplate rating
Product Description
APPLICATIONS
Dewatering pumps are intended to be used for
pumping water which may contain abrasive particles.
The pumped liquid may contain particles up to a size
which corresponds to the openings in the strainer.
TECHNICAL DATA
Liquid temperature: 41- 95ºF (5-35ºC)
The pH of the pumped liquid: 3–8
Depth of immersion: max. 16.5 ft (5 m).
Discharge connection:
2" (50 mm) hose, 2"-11.5 NPSM or 2" NPT
Oil type:
Mobil Whiterex or Shell Ondina etc. with viscosity
class ISO VG 15 to 32. 0.17 liter.
The pump may not be used in an explosive
or flammable environment or for pumping
flammable liquids.
WARNING
Dimensions
½ HP = 15.8"
1 HP = 17"
7.25"
