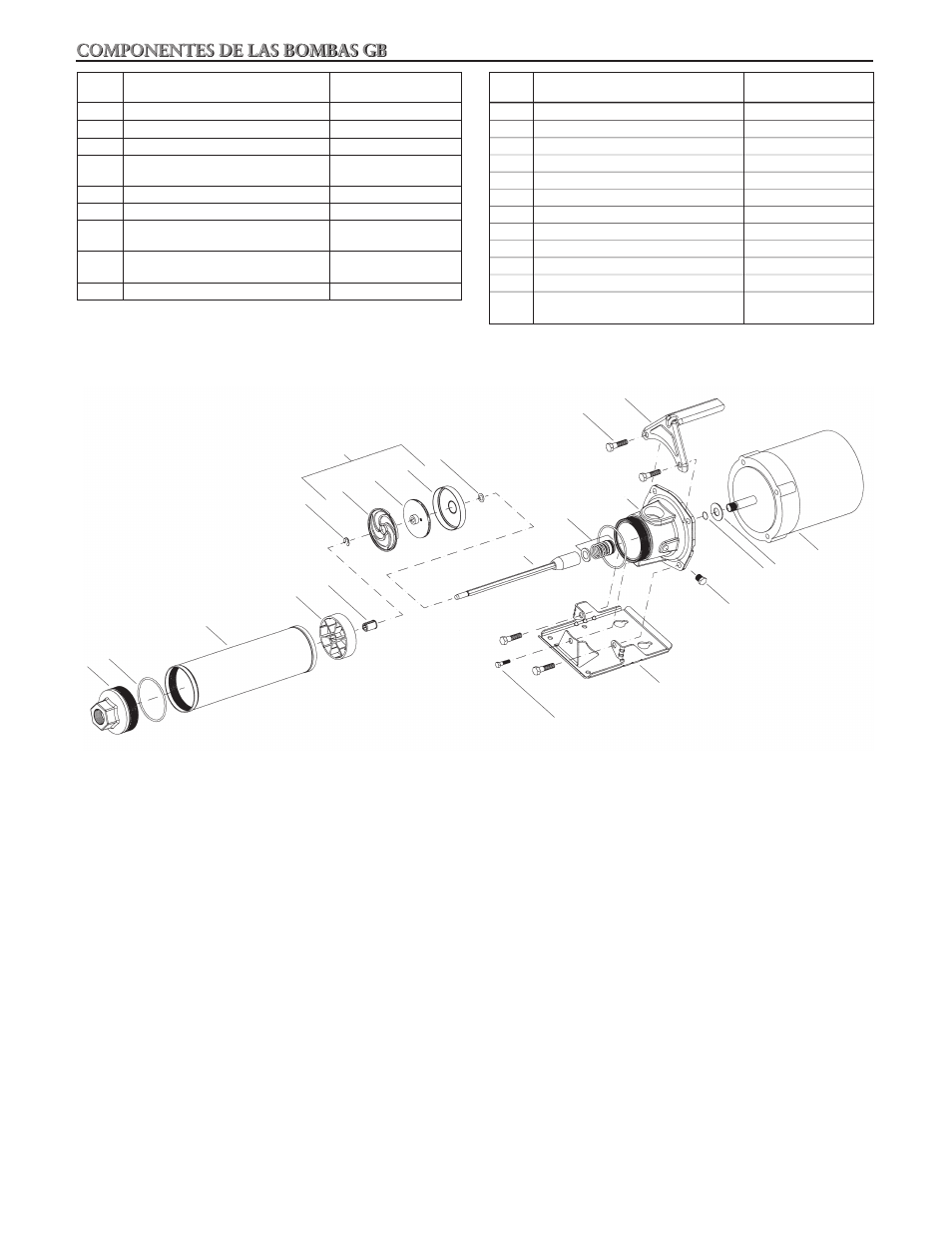

COMPONENTES DE LAS BOMBAS GB
Ítem Descripción Materiales
No.
1
Cabezal de descarga
Hierro fundido
2
Anillo en O, carcasa
BUNA
3
Carcasa
Acero inox. 304
4
Cruceta del cojinete Policarbonato
relleno de vidrio
5 Cojinete
Uretano
6
Anillo de retención
Acero inox. 301
7 Difusor Policarbonato
relleno de vidrio
8 Impulsor
Policarbonato
relleno de vidrio
9
Recipiente
Acero inox. 304
Ítem Descripción Materiales
No.
10
Cuña
Acero inox. 304
11
Ensamble eje/acoplamiento
Acero inox. 304
12
Sello mecánico
Varía
13
Adaptador del motor
Hierro fundido
14
Tornillo, adaptador del motor al motor
Acero
15
Manija – optativa
Acero
16
Tornillo, base al adaptador del motor
Acero
17
Base
Acero
18
Tapón de tubería
Acero
19
Anillo en O, eje del motor
BUNA
20
Deflector
BUNA
21 Motor
Eje del motor
Acero inox. 300
