QUICK
S
TAR
T GUIDE
91

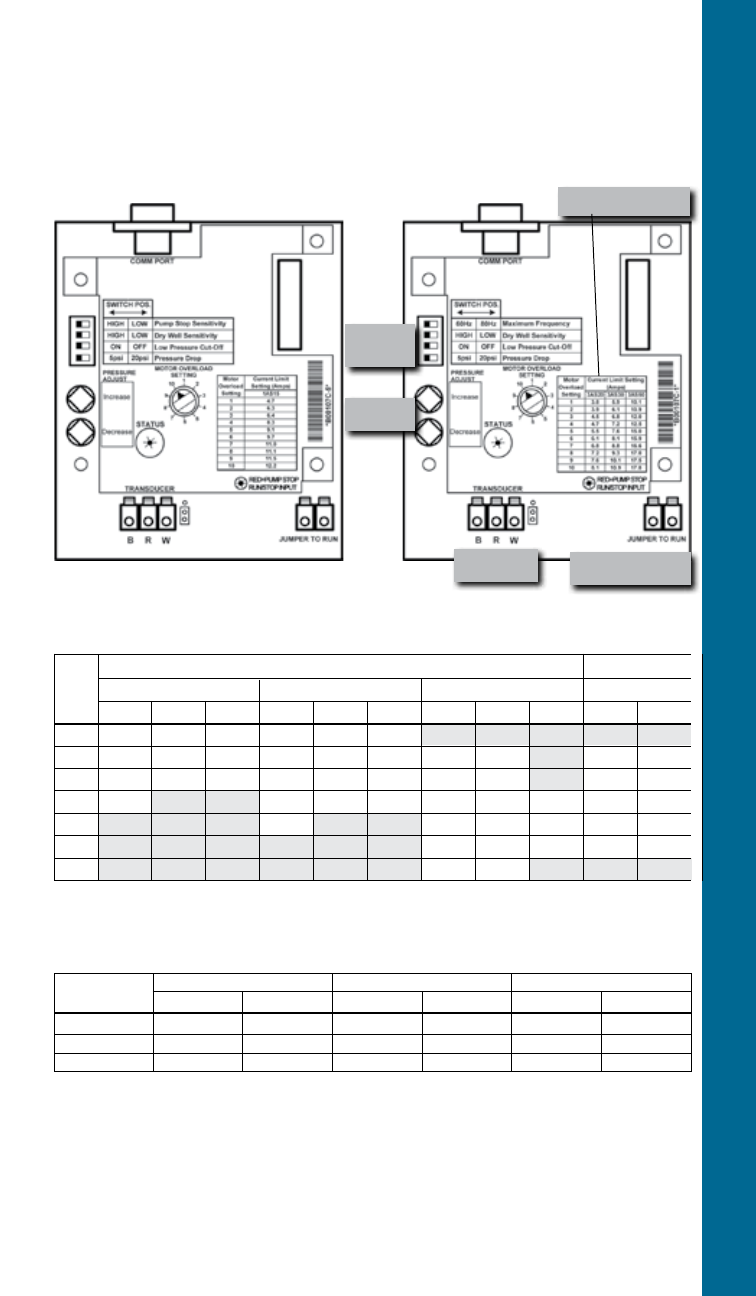

Aquavar SOLO –
User Interface Board
1AS Controllers 3AS Controllers
Pressure Ranges for All Available Transducers
transducer 1AS15 / 3AS20 3AS30 3AS50
(min. PSi) (max. PSi) (min. PSi) (max. PSi) (min. PSi) (max. PSi)
100 PSI (1) 20 85 20 85 10 50
200 PSI (2) 40 170 40 170 20 100
300 PSI 60 255 60 255 30 150
(1) Standard on 1AS15, 3AS20 and 3AS30 (2) Standard on 3AS50
Service Factor Amps – All Motors
Drive
Settings /
Protection
Pressure
Adjustment
Pressure
Transducer
Connection
Current Limit Dial
(Motor Overload Protection)
Switch Input (Over
Pressure Protection,
Level Control)
trANSDuCer
JumPer
230 Volt 200 Volt
HP 1Ø 2-Wire 1Ø 3-Wire 3Ш 3Ш
CentriPro 1 Franklin Grundfos CentriPro 1 Franklin Grundfos CentriPro Franklin Grundfos CentriPro Franklin
½ 4.7/4.7 6 6 6.3/6.1 6 6 N/A N/A N/A N/A N/A
¾ 6.4/6.2 8 8.4 8.3/7.8 8 8.4 3.9 3.8 N/A 4.5 4.4
1 9.1/8.1 9.8 9.8 9.7/9.4 9.8 9.8 4.7 4.7 N/A 5.5 5.4
1½ 11.0/10.4 13.1 2 13.1 2 11.1/10.9 11.5 11.6 6.1 5.9 7.3 7.2 6.8
2 N/A N/A N/A 12.2 13.2 2 13.2 2 7.6 8.1 8.7 8.8 9.3
3 N/A N/A N/A N/A N/A N/A 10.1 10.9 12.2 12 12.5
5 N/A N/A N/A N/A N/A N/A 17.5 17.8 19.8 2 20.2 2 20.5 2
1. CentriPro 2-Wire motors have Generation 1 and Generation 2 amp ratings, see motor nameplate or motor data sticker that was supplied with motor.
2. Amps are higher than controller overload range - use of these motors will current limit and provide reduced performance.
93
