Xylem IM024 R06 Model LC - Manual (Page 6)

6
23
24
22
21
18
17
20
15
25
16
15
14 12
8
5
11
9
7
5
3
1
2
4 6
8
10
13
14
19
Item No. Description Materials
1 Screw, casing 304SS
2 Pump casing, suction 304SS
Viton
3 O-ring, casing Optional EPR
Optional BUNA
4 Diffuser cover, first stage 304SS
Viton
5 O-ring, impeller Optional EPR
Optional BUNA
6 Impeller nut 304SS
7 Impeller lock washer 400SS
8 Impeller 304SS
9 Impeller spacer 304SS
10 Diffuser, intermediate 304SS
11 Diffuser cover, last stage 304SS
12 Diffuser, last stage 304SS
Item No. Description Materials
13 Mechanical seal Varies
14 Fill and drain plug 304SS
15 O-ring, fill and drain plug Viton
16 Pump body with plug 304SS
17 Motor adapter Cast iron
18 Locknut, motor adapter to pump Steel
19 Shaft, pump 304SS
20 Key, impeller 304SS
21 Foot, pump Steel
22 Spacer Rubber
23 Screw, motor adapter to pump Steel
Motor, 3 phase ODP
24
Motor, 1 phase ODP
303SS
Motor, 3 phase TEFC
Motor, 1 phase TEFC
25 Nut, casing screw 304SS
MECHANICAL SEAL APPLICATION CHART
Rotary Stationary Elastomer Metal Parts Part No.
Carbon
Ceramic 10K92
Silicon carbide Viton
316SS
10K87
Silicon carbide 10K88
Carbon Silicon carbide EPR 10K89

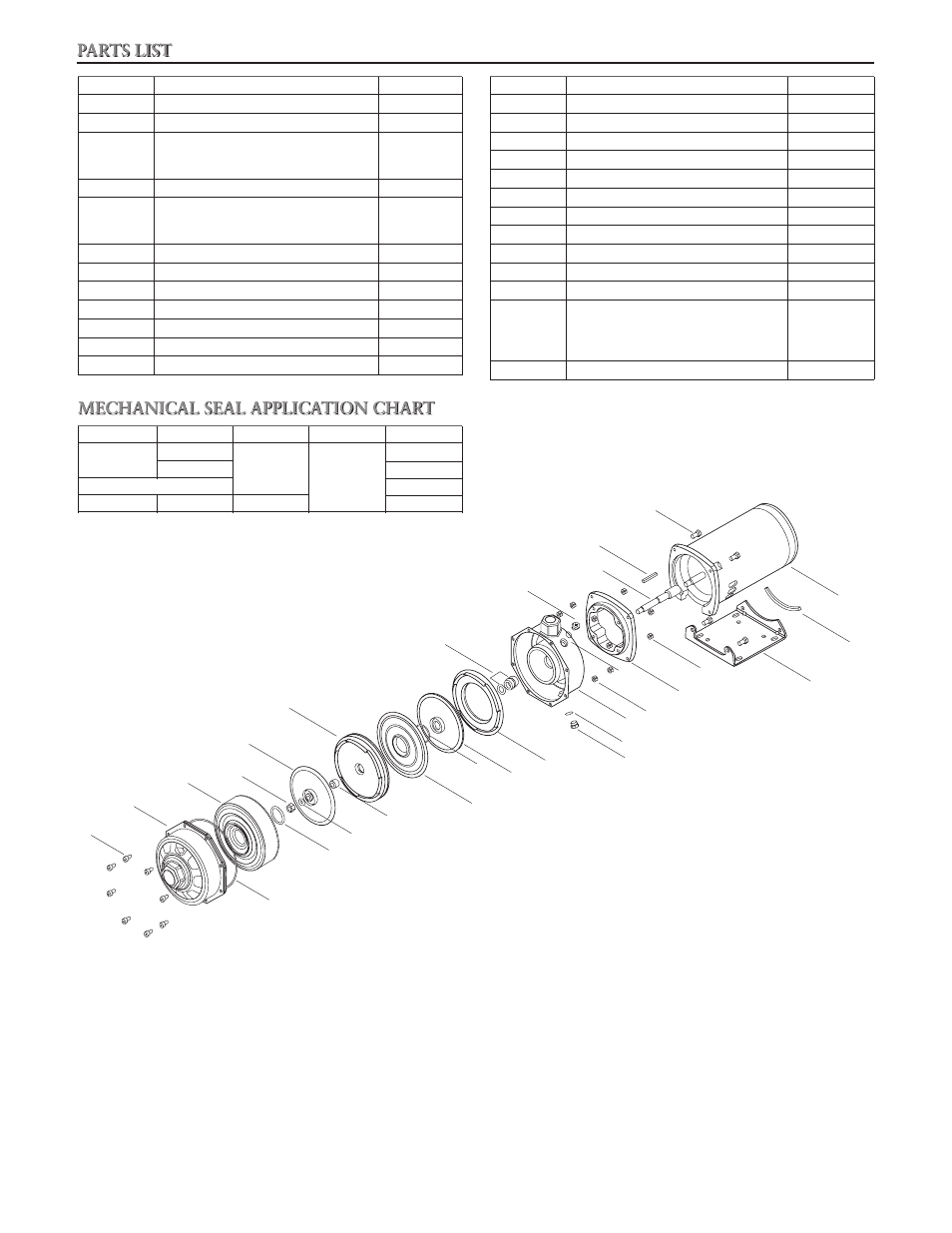

PARTS LIST
