INSTALLATION

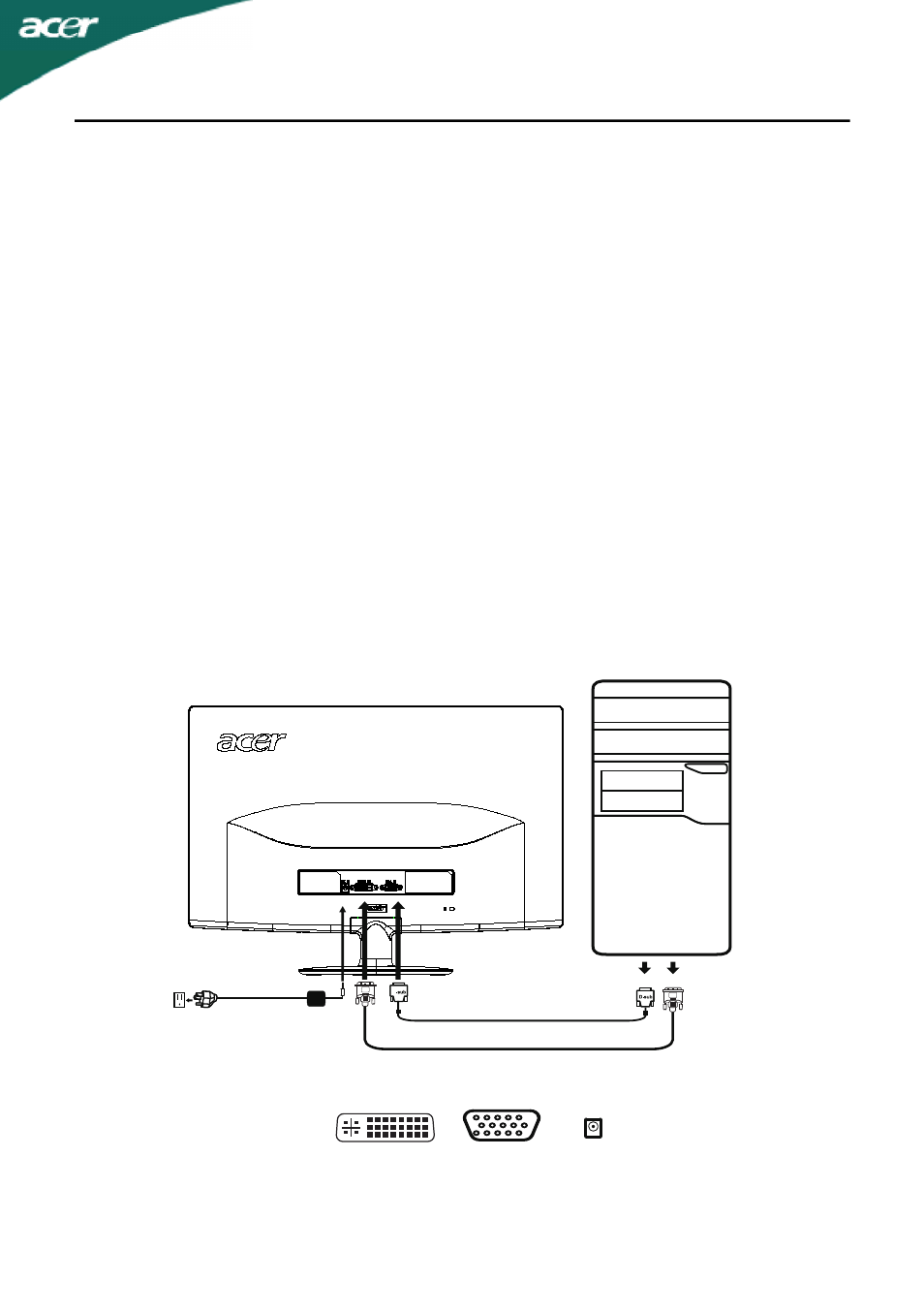

To install the monitor to your host system, please follow the steps as given
below:
Steps
1. 1-1 Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the computer’s port.
2.
4.
Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
Connect the digital cable (only for dual-input models).
Connect the adapter
a Connect the AC cord to the adapter.
b Connect one end of the adapter to the monitor and the other end to
a properly grounded, AC outlet .
3.
DC IN D-Sub DVI
DVI
D-Sub
DC
