INSTALLATION

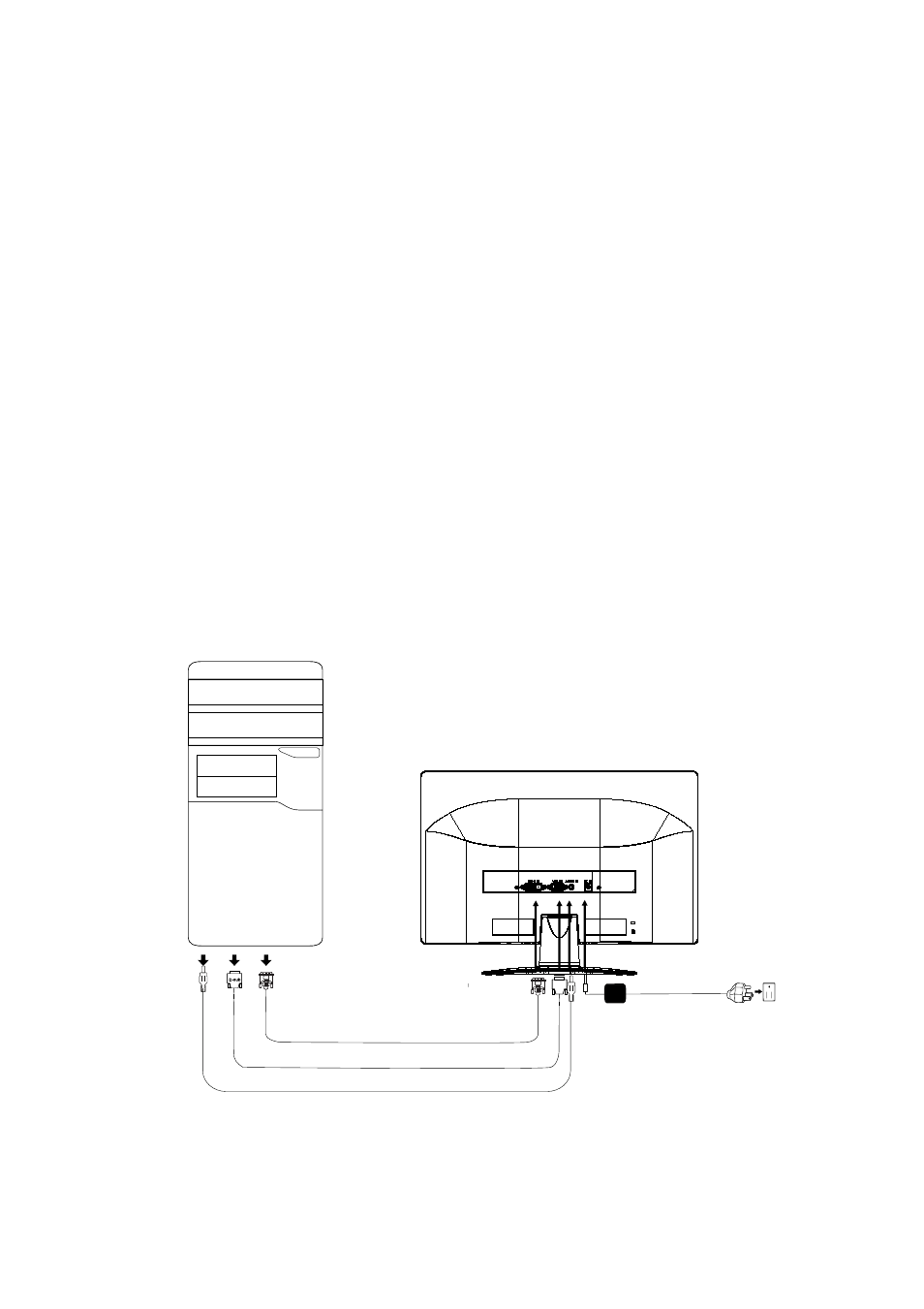

To install the monitor to your host system, please follow the steps as given

below:
Steps
1. 1-1 Connect Video Cable

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the VGA video cable to the computer.

1-2

1-

2.

Connect the adapter
a Connect the AC cord to the adapter.
b Connect one end of the adapter to the monitor and the other end to

a

p

roperly g

rounded, A

tlet

.

C ou

3.

Power-ON Monitor and Computer

Power-ON the monitor first, then power-ON the computer.

This sequence is very important.

4. If the monitor still does not function properly, please refer to the

troubleshooting section to diagnose the problem.

Connect the Audio Cable (Only Audio-Input Model)(Optional)

AUDIO IN

DC-IN

Connect the digital cable (only for Dual-Input Model).

a. Make sure both the monitor and computer are powered-OFF.

b. Connect one end of the 24-pin DVI cable to the back of the

monitor and connect the other end to the

computer’s port.

DVI-D IN

VGA IN

VGA
