Acer B243WL - Manual

DP cable
4
2
1-1
1-2
1-3
USB
USB
3
4
1-1 1-2 2 1-3 3

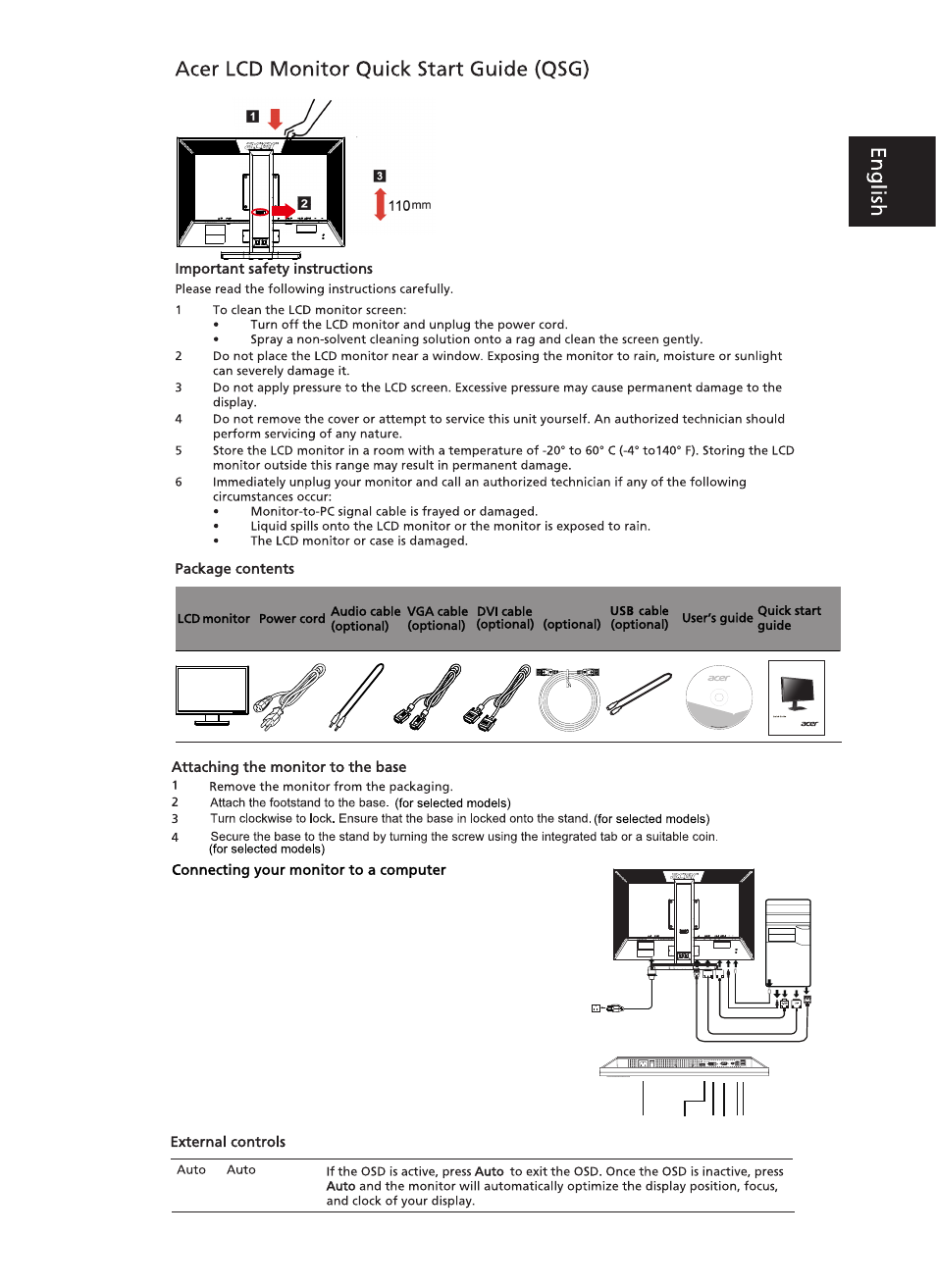

1 Turn off your computer and unplug your computer's power
cord.
2 Connect the signal cable to the VGA and/or DVI-D (optional)
and /or HDMI (optional) input socket of the monitor, and
the VGA and/or DVI-D (optional) and/or HDMI (optional)
output socket of the graphics card on the computer. Then
tighten the thumbscrews on the signal cable connector.
3 Optional: Connect the audio input socket (AUDIO IN) of the
LCD monitor and the line-out port on the computer with
the audio cable.
4 Connect the USB Cabel(Only USB-Input Model)(Optional).
5 Insert the monitor power cable into the power port at the
back of the monitor.
6 Plug the power cords of your computer and your monitor
into a nearby electrical outlet.
LCD Monitor
