EN-10

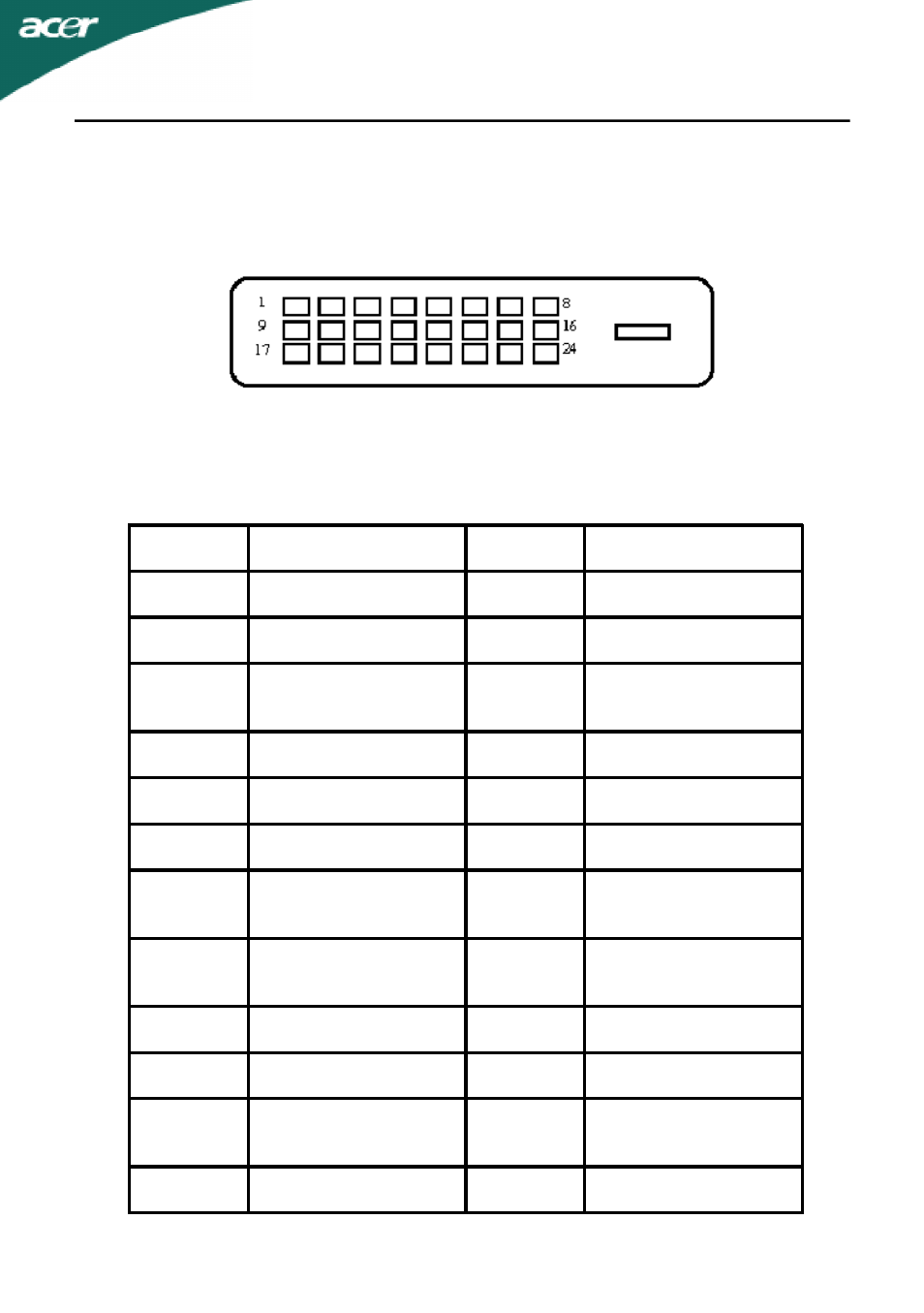

24-Pin Color Display Signal Cable
PIN Meaning PIN Meaning
1. TMDS Data2- 13. TMDS Data3+
2. TMDS Data2+ 14. +5V Power
3.
TMDS Data 2/4
Shield
15.
GND(return for
+5V hsync.vsync)
4. TMDS Data4- 16. Hot Plug Detect
5. TMDS Data4+ 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19.
TMDS Data 0/5
Shield
8.
Analogue Vertical
Sync
20. TMDS Data5-
9. TMDS Data1- 21. TMDS Data5+
10. TMDS Data1+ 22. TMDS Clock Shield
11.
TMDS Data 1/3
Shield
23. TMDS Clock+
12. TMDS Data3- 24. DDC TMDS Clock-
