En gl ish rear side – Acer P5271i User Manual
Page 14
4
En
gl
ish

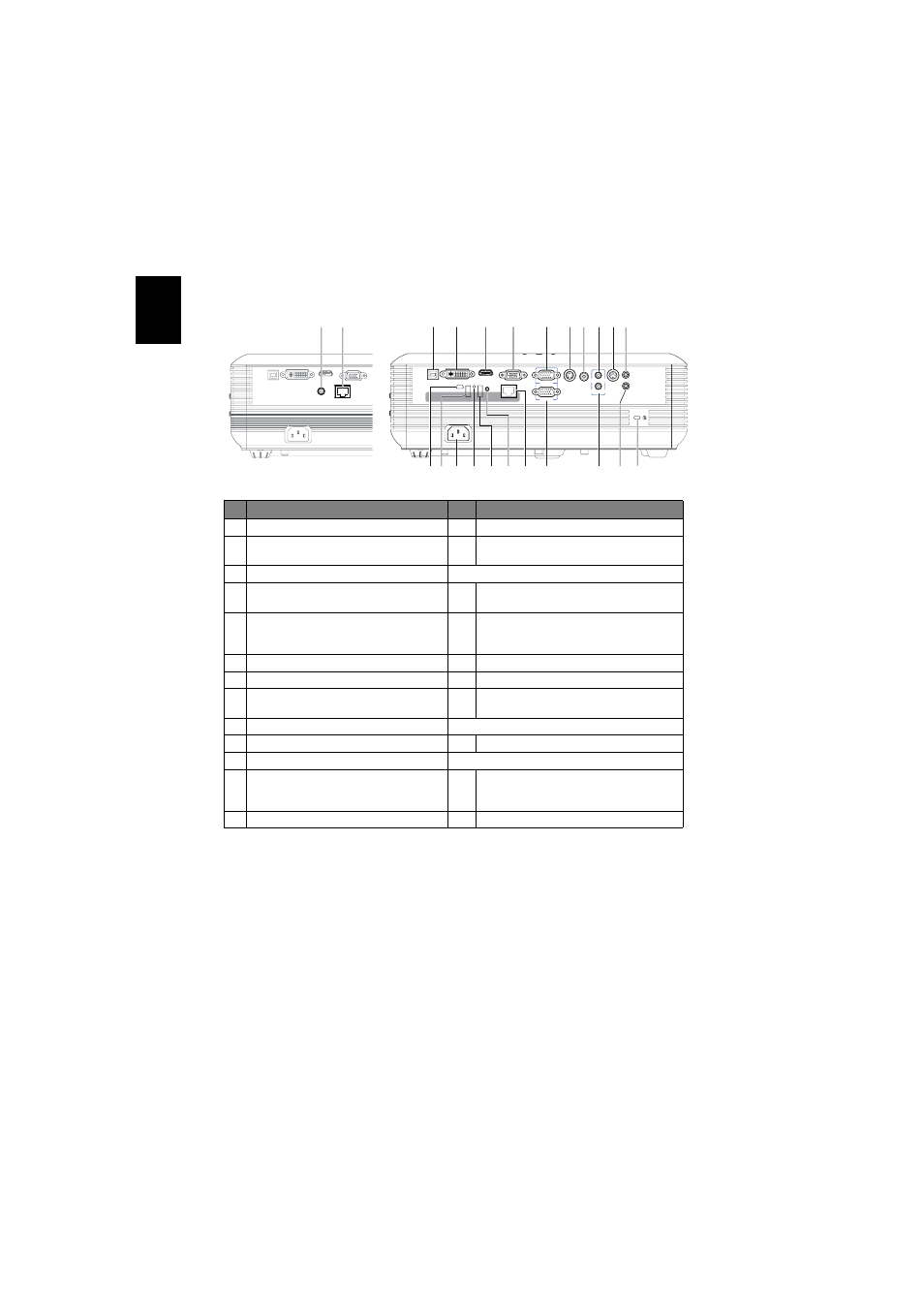

Rear side
#
Description
#
Description
1
USB connector
14
Wired IR remote input connector
2
DVI input connector (for digital signal
with HDCP function)
15
Kensington™ lock port
3
HDMI connector
Below items are for P5271i only:
4
Monitor loop-through output
connector (VGA-Out)
16
USB B
5
PC analog signal/HDTV/SCART/
component video input connector
(VGA IN 1)
17
USB A1
6
S-Video input connector
18
Reset button
7
Composite video input connector
19
USB A2
8
Audio input connector (VGA IN 1/
Component/Composite/S-Video/HDMI) 20
Power LED for wireless
9
RS232 connector
Below item is for P5271i and P5271n only:
10 Audio output connector
21
LAN (RJ45 Port for 10/100M Ethernet)
11 Power socket
Below item is for P5271n only:
12
PC analog signal/HDTV/SCART/
component video input connector
(VGA IN 2)
22
DC Output
13 Audio input connector
DVI
HDMI
VGA OUT
VGA IN 1
VGA IN 2
S-VIDEO
VIDEO
AUDIO IN 1
AUDIO OUT
AUDIO IN 2
RS232
LAN
POWER
RESET
USB
WIRED REMOTE
1
2
3
6 7 8 9 10
11
15
12
13
14
5
4
16
20 21
17
18 19
DVI
HDMI
VGA OUT
USB
LAN
22
21
DC OUT
