PIN NO. Meaning PIN NO. Meaning
1 TMDS Data2+ 10 TMDS Clock+
2 TMDS Data2 Shield 11 HDMI.DET
3 TMDS Data2- 12 TMDS Clock-
4 TMDS Data1+ 13
Reserved
(N.C. on device)
5 TMDS Data1 Shield 14
Reserved
(N.C. on device)
6 TMDS Data1- 15 SCL
7 TMDS Data0+ 16 SDA
8 TMDS Data0 Shield 17 DDC/CEC Ground
9 TMDS Data0- 18 +5V Power
19 Hot Plug Detect
PIN NO. Meaning PIN NO. Meaning
1 TMDS Data2- 13 NC
2 TMDS Data2+ 14 +5V Power
3 TMDS Data2 Shield 15 Self Test
4 NC 16 Hot Plug Detect
5 NC 17 TMDS Data0-
6 DDC Clock 18 TMDS Data0+
7 DDC Data 19 TMDS Data0 Shield
8 NC 20 NC
9 TMDS Data1- 21 NC
10 TMDS Data1+ 22 TMDS Clock Shield
11 TMDS Data1 Shield 23 TMDS Clock+
12 NC 24 DDC TMDS Clock-
EN-10

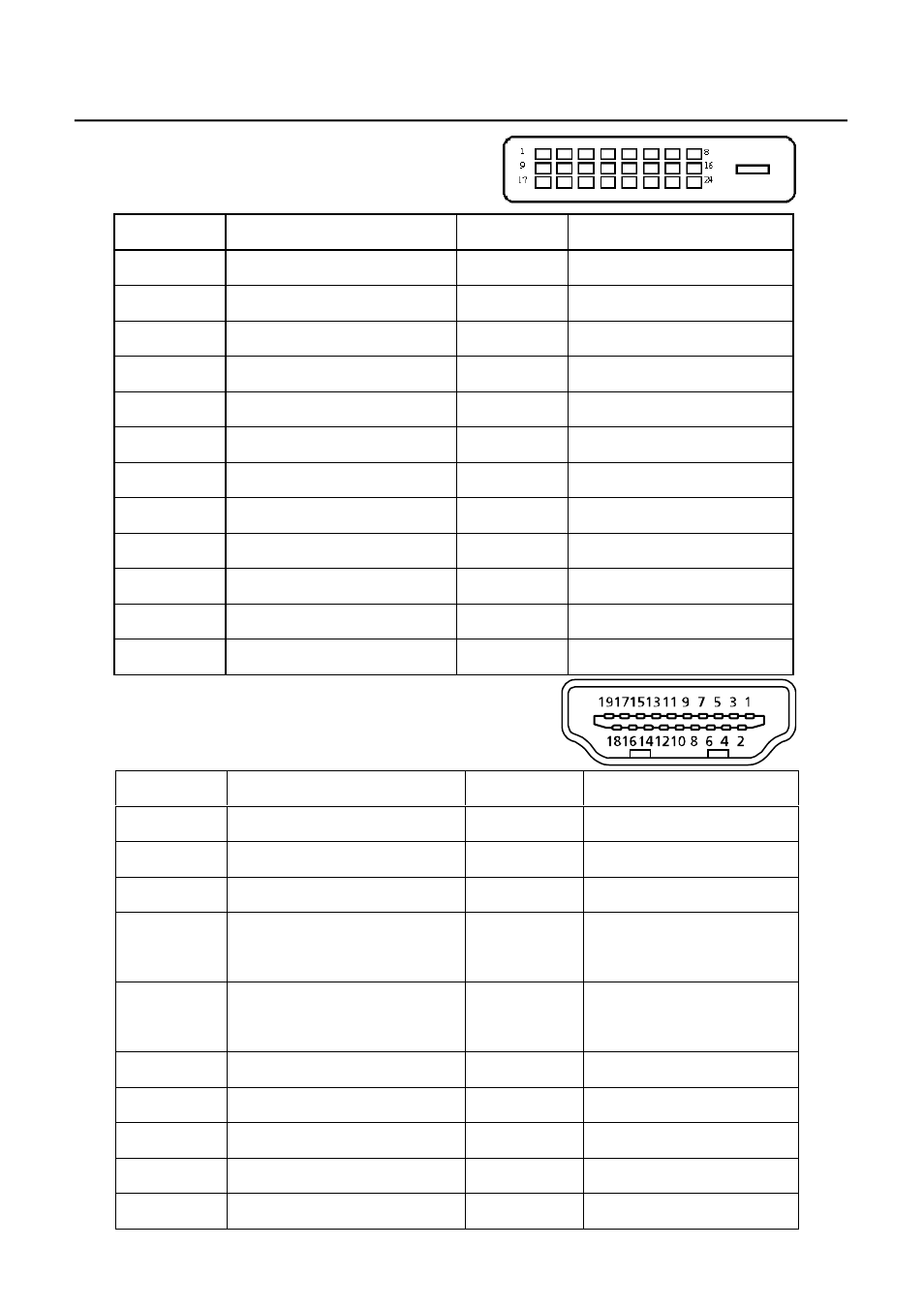

24-Pin Color Display Signal Cable
*19-Pin Color Display Signal Cable
*Only for certain models
