GB
27

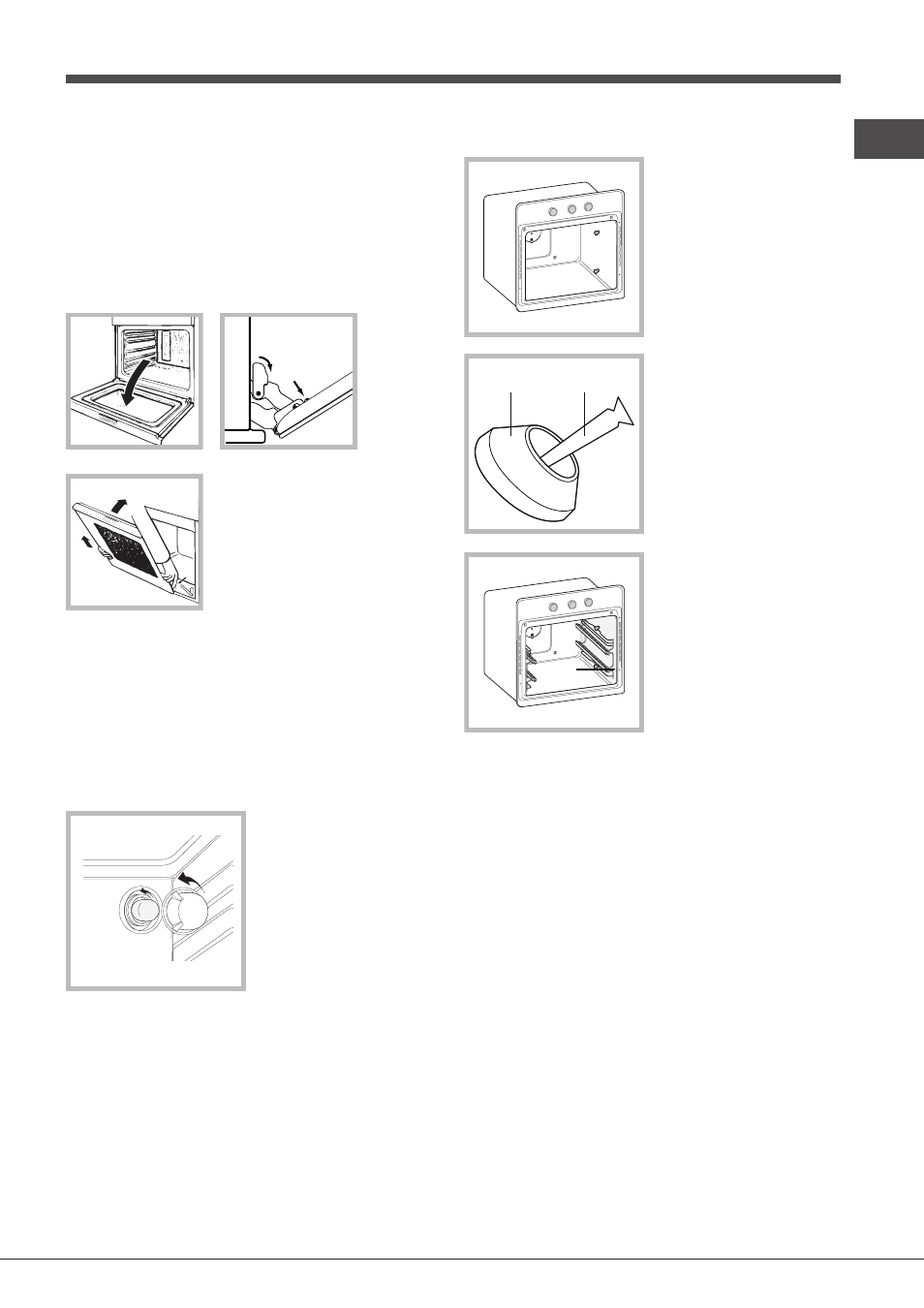

Cleaning the oven door
Clean the glass part of the oven door using a sponge and
a non-abrasive cleaning product, then dry thoroughly with a
soft cloth. Do not use rough abrasive material or sharp metal
scrapers as these could scratch the surface and cause the
glass to crack. For more thorough cleaning purposes, the
oven door may be removed:
1. Open the oven door fully (see diagram);
2. Lift up and turn the small levers located on the two hinges
(see diagram);
F
Grip the door on the two external
sides and close it approximately
half way. Unlock the door by
pressing on the clamps F, then
pull the door towards you lifting it
out of its seat (see diagram).
To replace the door, reverse this sequence.
Inspecting the seals
Check the door seals around the oven regularly. If the seals
are damaged, please contact your nearest Service Centre
(see Assistance). We recommend that the oven is not used
until the seals have been replaced.
Replacing the light bulb
To replace the oven light
bulb:
1. Remove the glass cover
of the lamp-holder.
2. Remove the light bulb and
replace it with a similar one:
Wattage 25 W, cap E 14.
3. Replace the glass cover
(see diagram).
! Do not use the oven lamp as/for ambient lighting.
F
Sliding Rack Kit assembly
To assemble the sliding
racks:
1. Loosen the two screws
A (see diagram). If the oven
is fitted with self-cleaning
panels, these will have to be
temporarily disassembled.
2. Replace the screws A with
the screws and spacers
(B + C) supplied with the kit.
3. Tighten the new screws
B and the corresponding
spacers C, fitting the self-
cleaning panels on again.
4. Secure the two joints D
of the guide rail in the holes
provided on the oven walls
(see diagram). The holes for
the left guide rail are situated
at the top, while the holes
for the right one are at the
bottom.
5. Finally, fit the guide rail on
the spacer C.
! Do not place the sliding racks in position 5.
A
A
C B
D
